Home >> Chrysler >> 1990 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 10 - Left Rear Wheel Speed Sensor Continuity Fault >> Test 10M

Test 10M

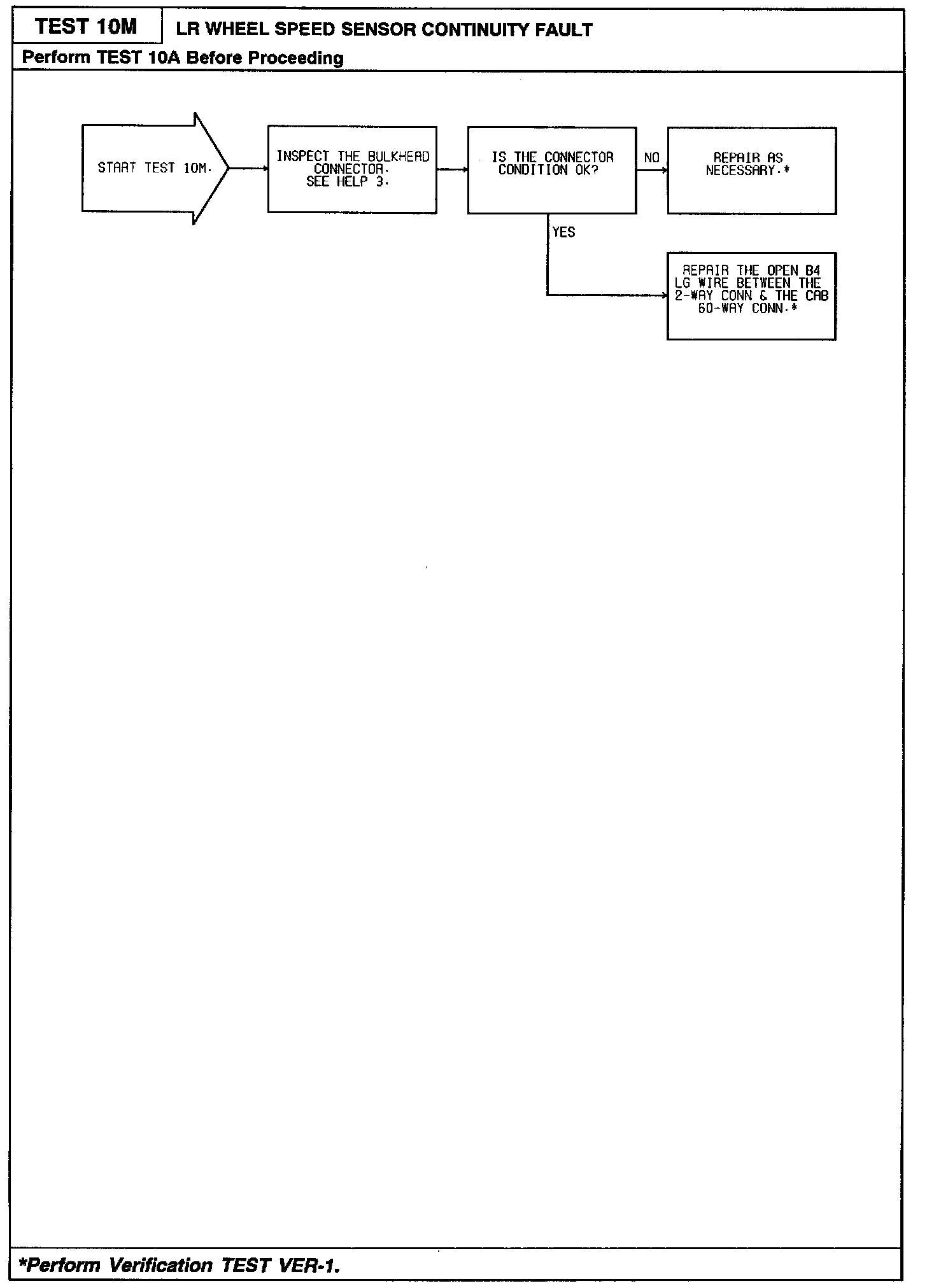

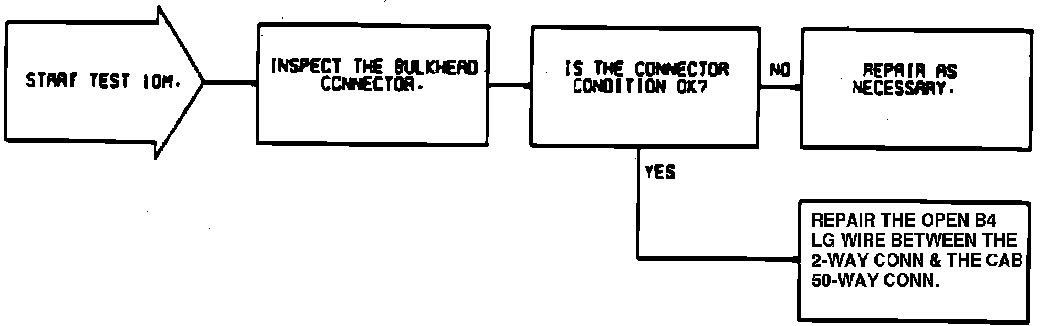

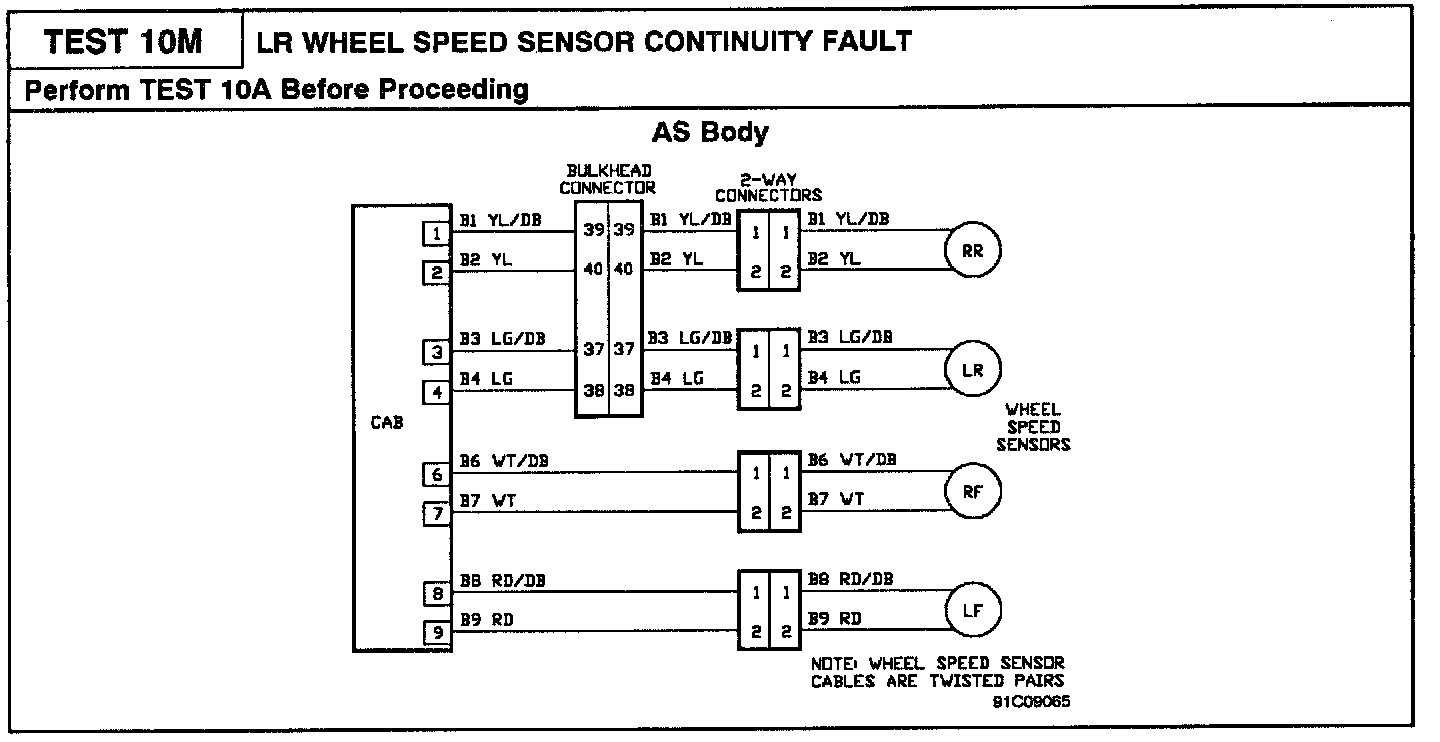

Fig. 93 Test 10M--Left Rear Wheel Speed Sensor Continuity Fault:
