Home >> Chrysler >> 1990 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 10 - Left Rear Wheel Speed Sensor Continuity Fault >> Test 10C

Test 10C

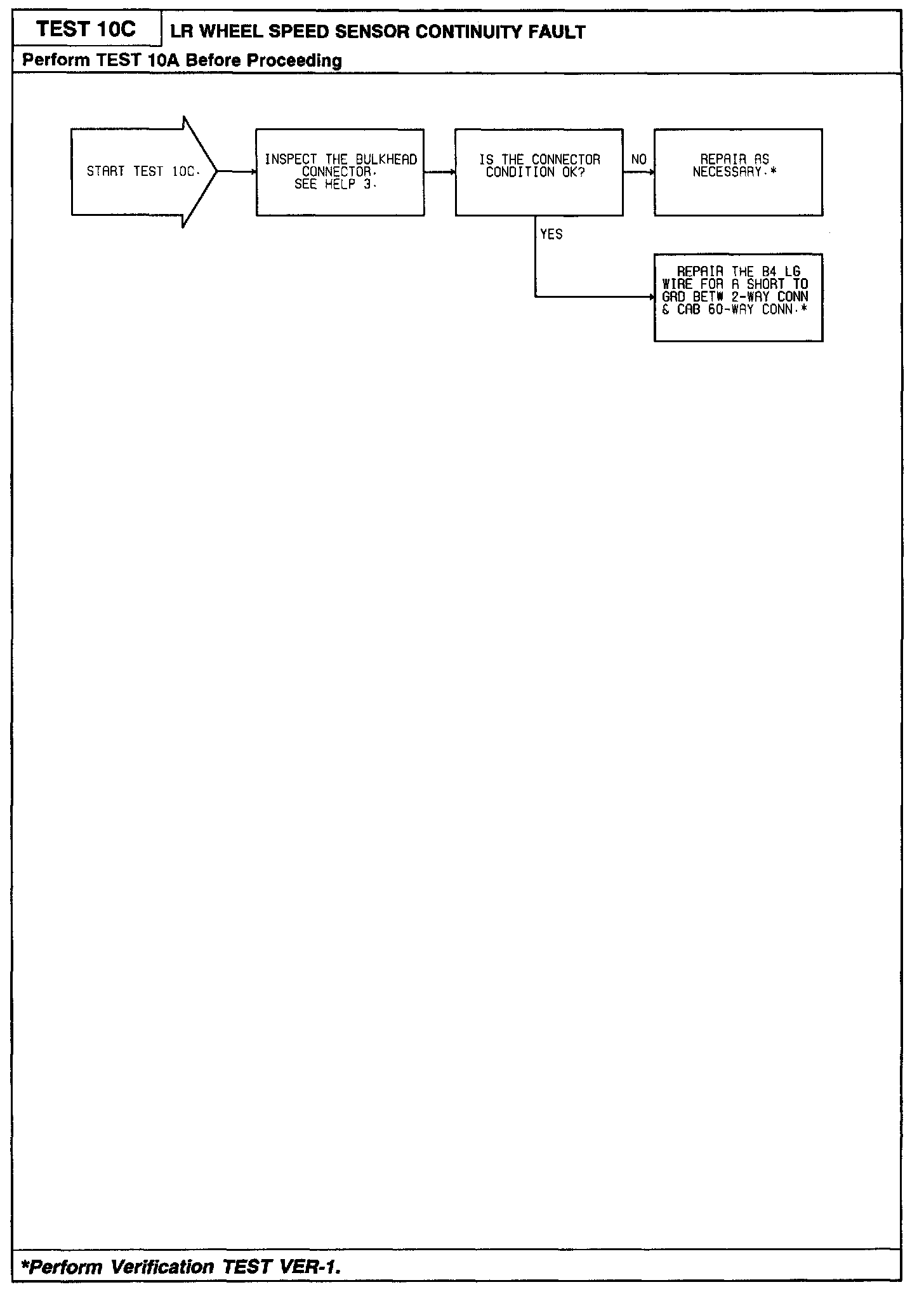

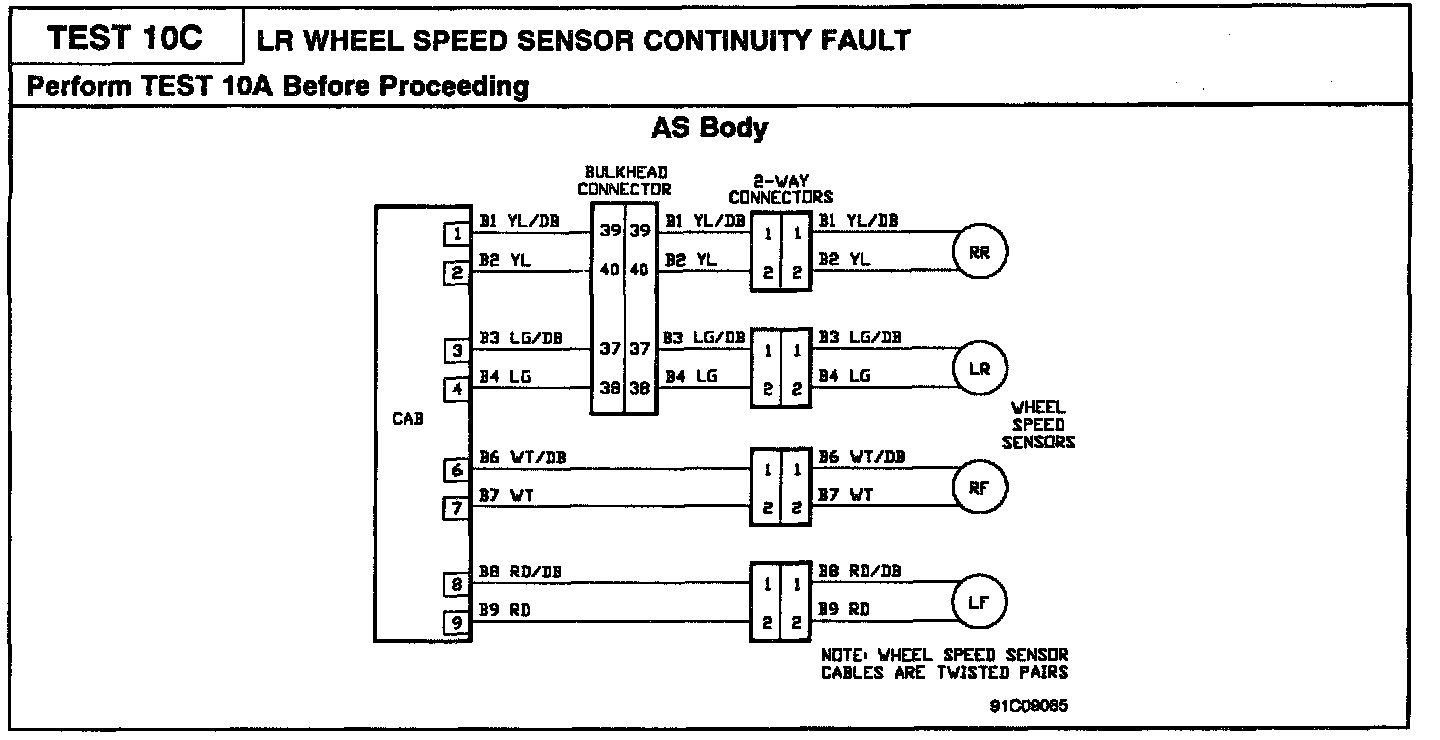

Fig. 82 Test 10C--Left Rear Continuity Fault:
