Test 10A

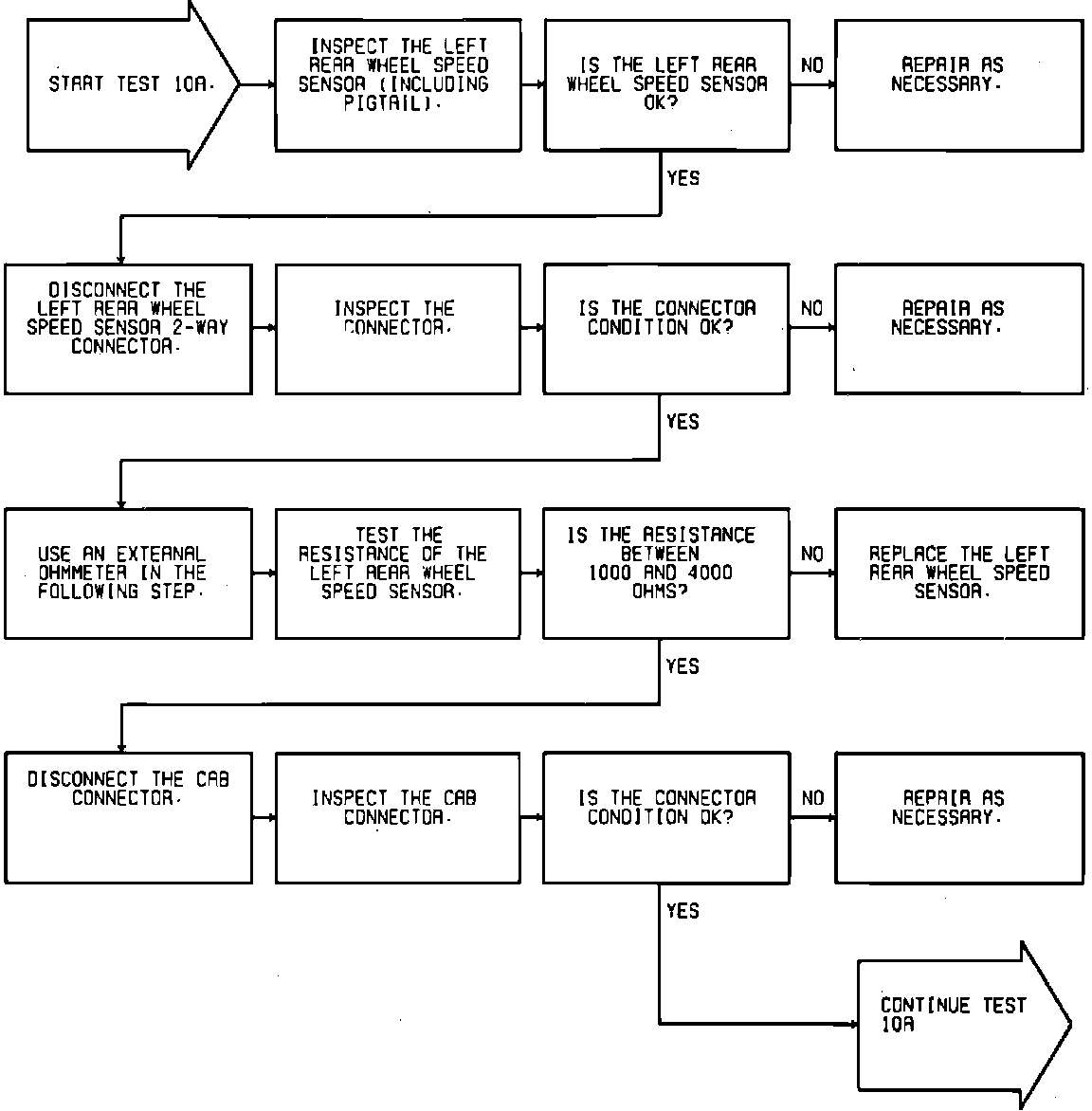

Fig. 78 Test 10A--Left Rear Continuity Fault (Part 1 Of 2):

Fig. 78 Test 10A--Left Rear Continuity Fault (Part 2 Of 2):

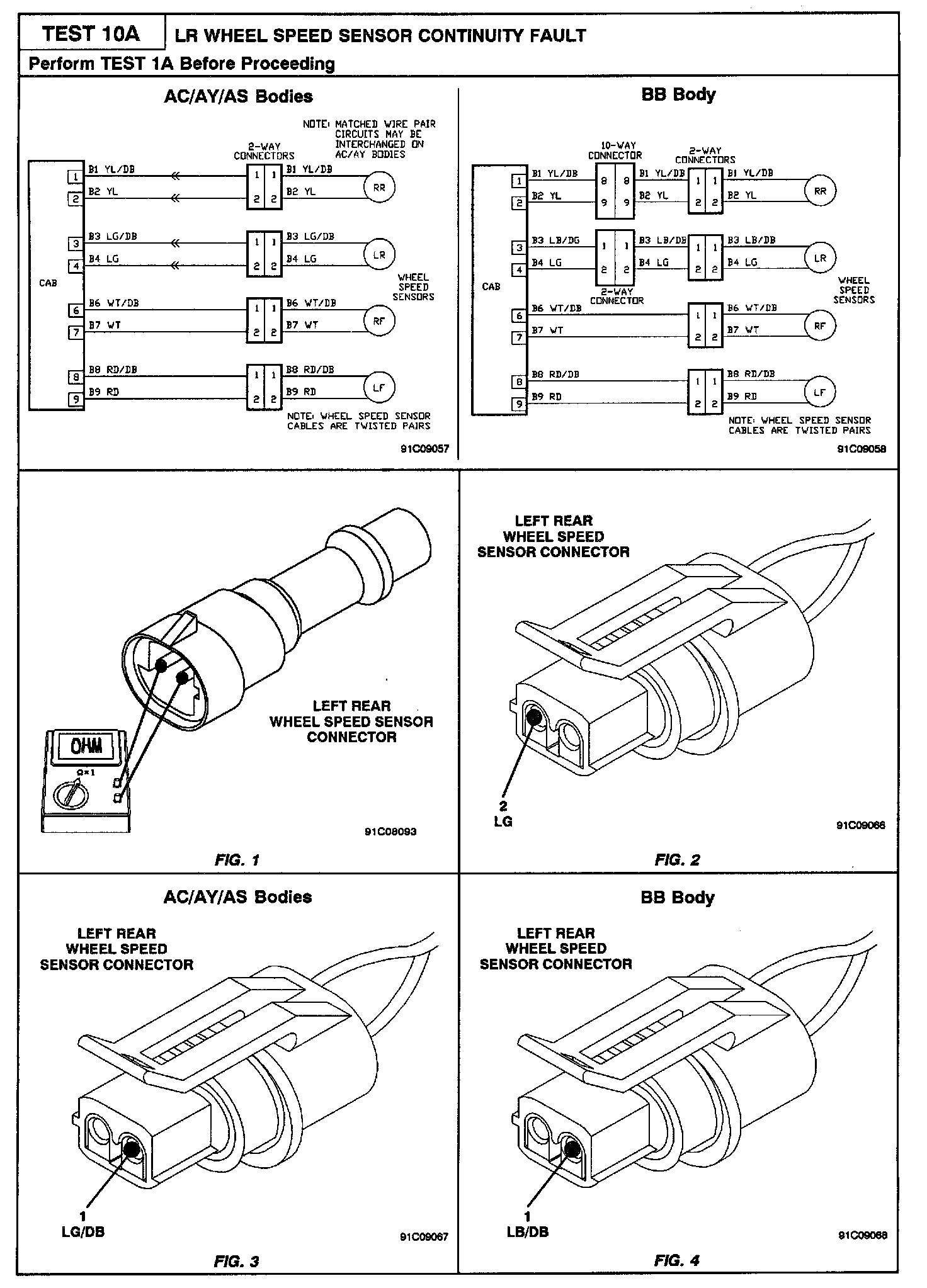

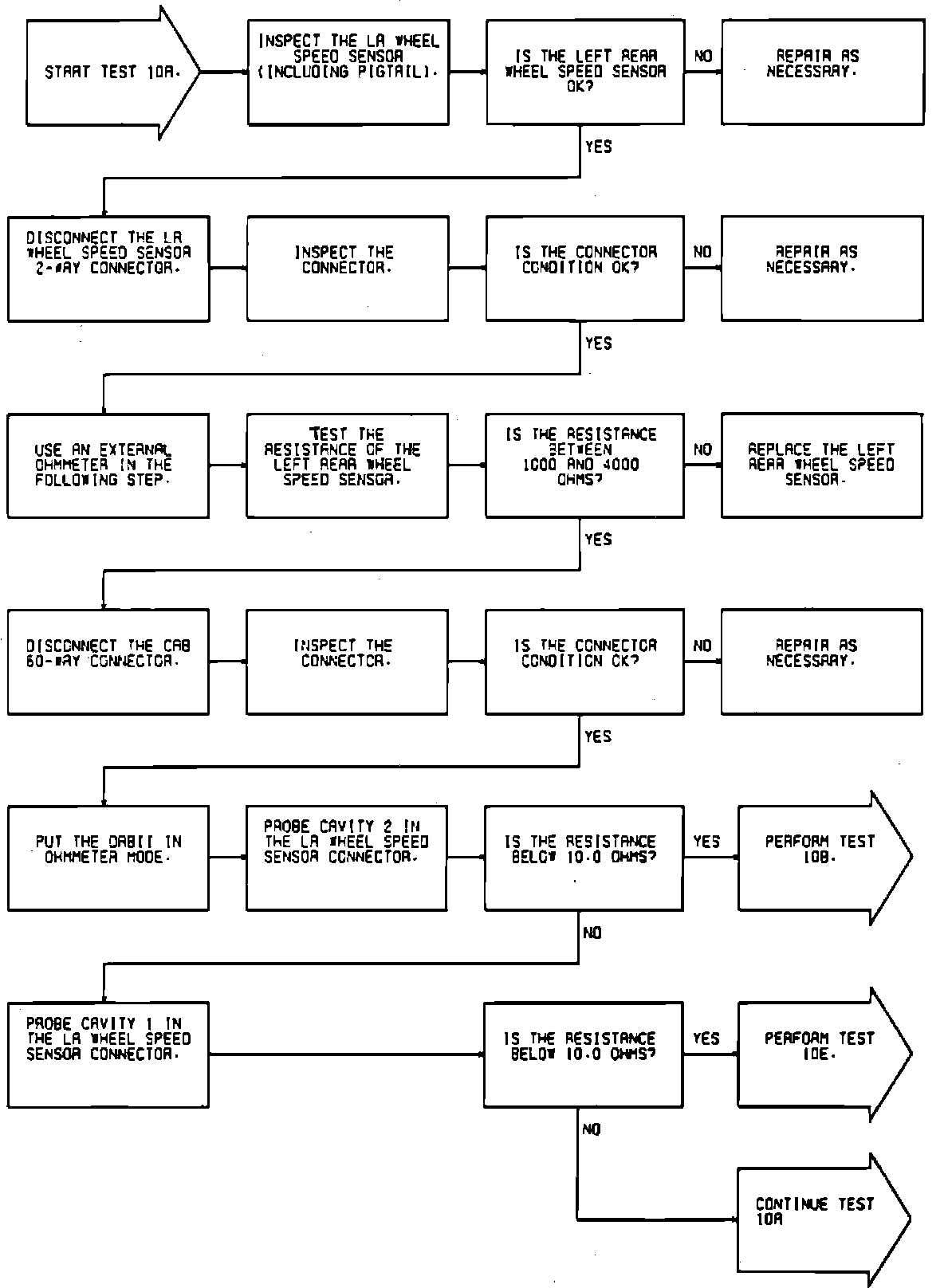

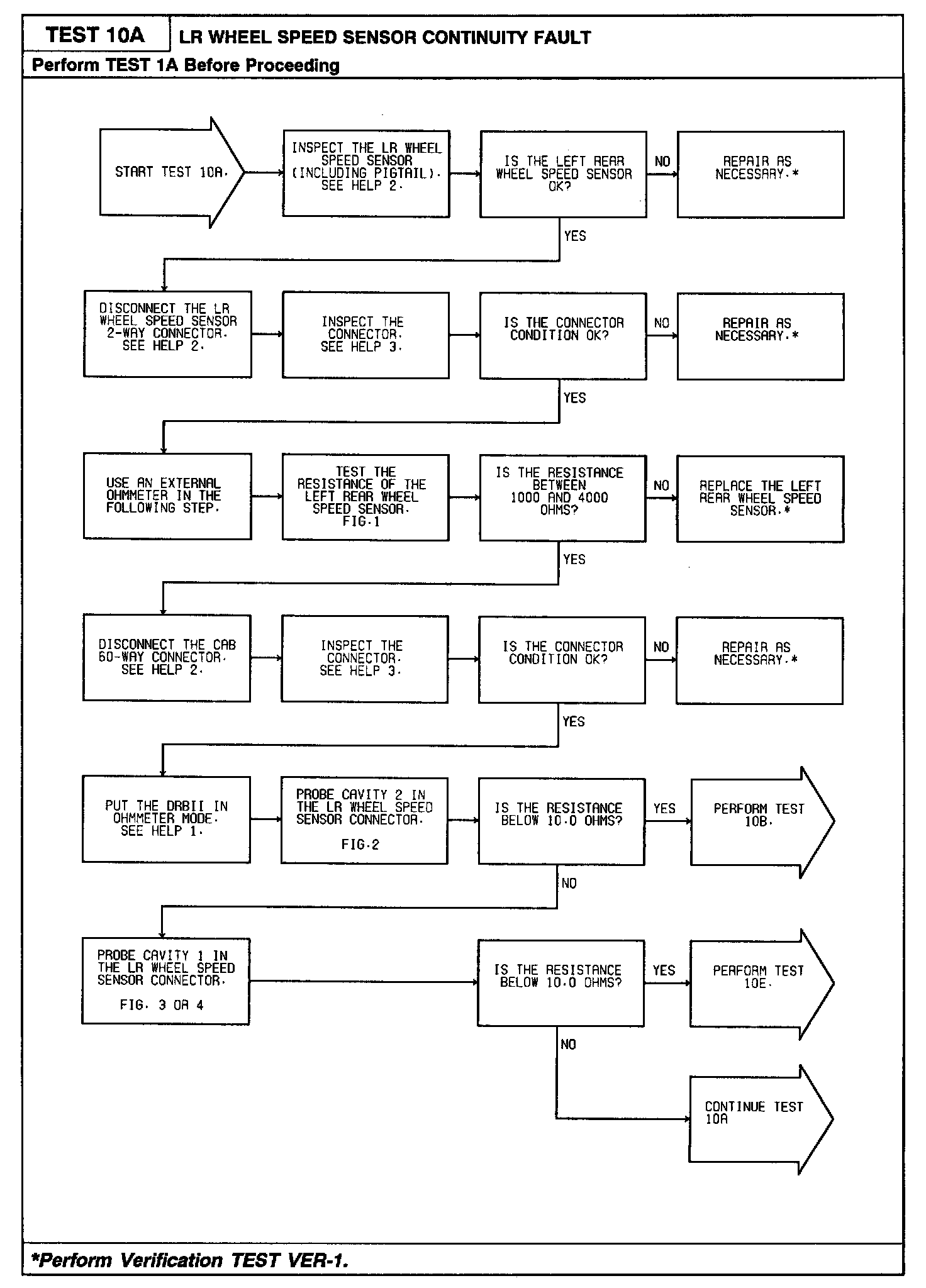

Fig. 79 Test 10A--Left Rear Wheel Speed Sensor Continuity Fault (Part 1 Of 2):

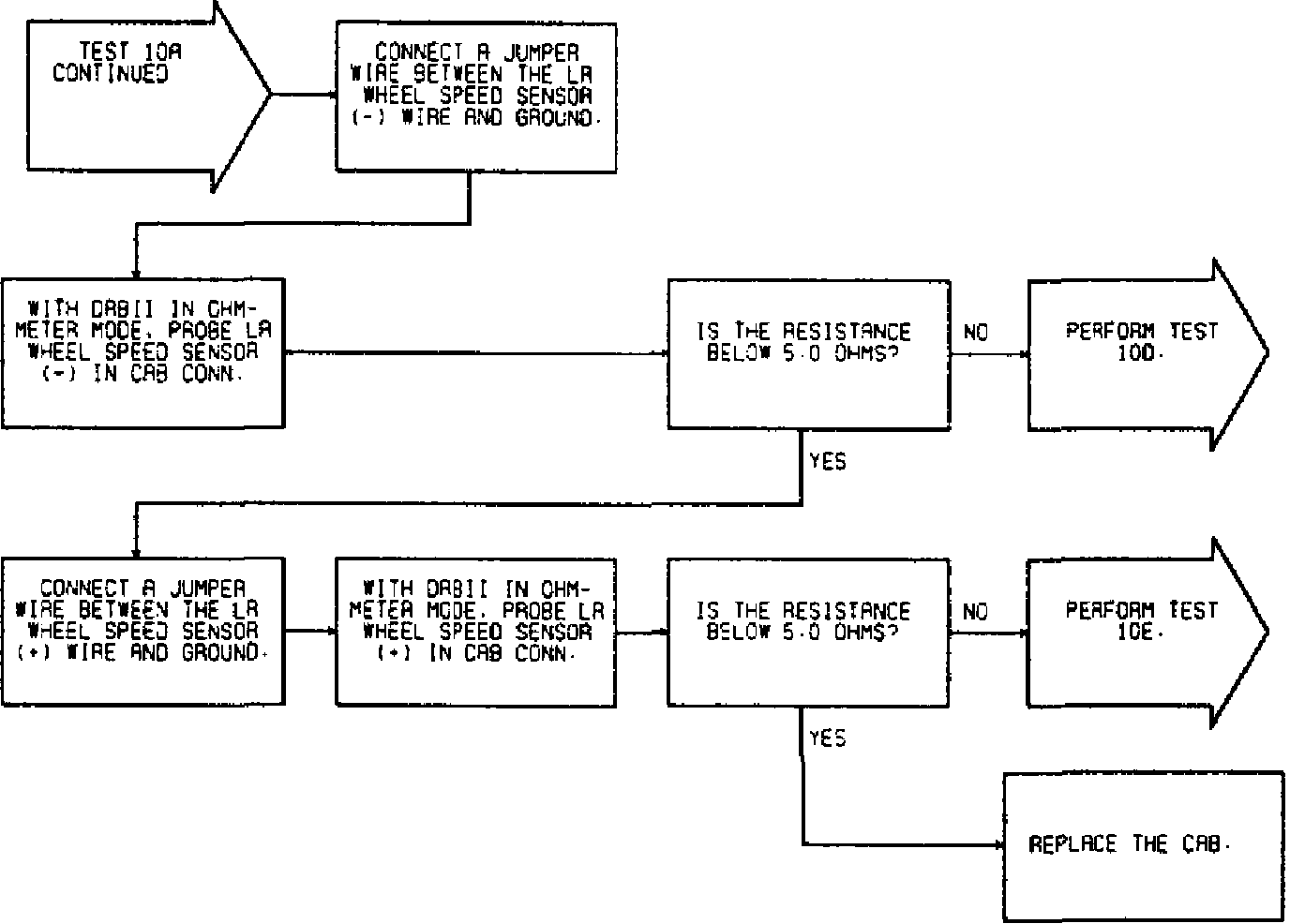

Fig. 79 Test 10A--Left Rear Wheel Speed Sensor Continuity Fault (Part 2 Of 2):

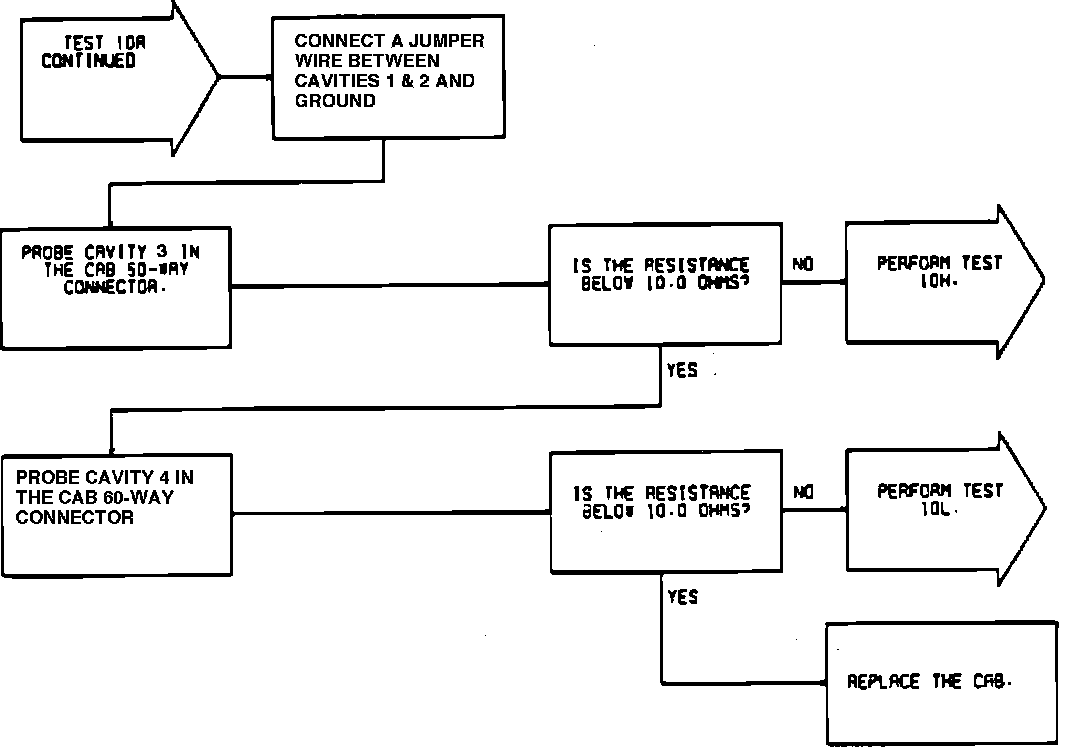

Fig. 122 Test 10A Part 2 Of 2:
