Power Window Motor: Locations

Coupe

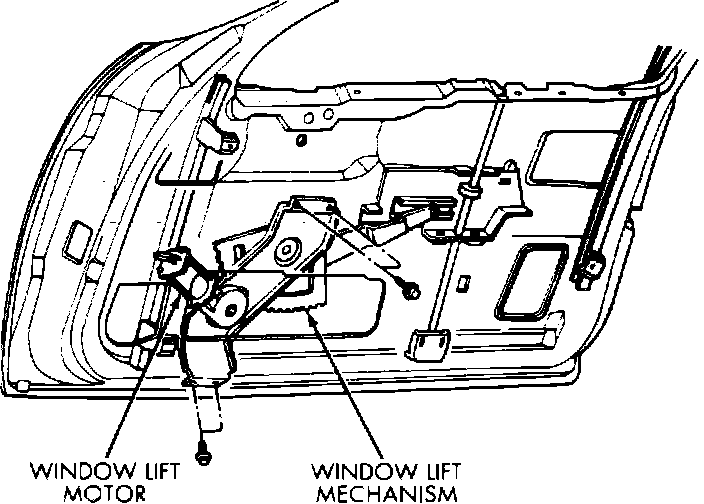

Power Window Motor Location:

The window regulator is a conventional sector gear design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each front door.


Convertible

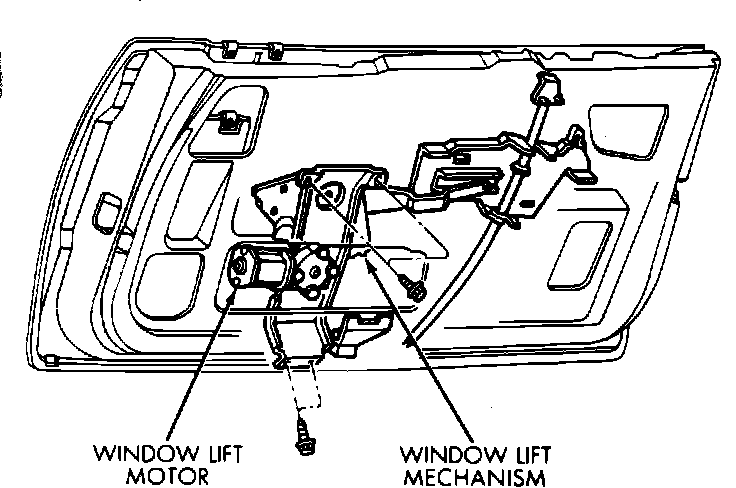

Power Window Motor Location:

Quarter Power Window Components:

The front window regulator is a conventional sector gear design. The rear window regulator is a drum and cable design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each door and the rear quarter panels.
