A/T - Shift Indicator Mandatory Clip Replacement
90chrysler09 Models1990 AG & AJ Bodies
Subject
Console Gear Selector Indicator (PRNDL) Adjuster Clip
Index
TRANSMISSION
Date
May 21, 1990
No.
21-15-90
P-1487 (C21-09-0)
BODY CODE LEGEND
AG - DAYTONA AJ - LEBARON COUPE/LEBARON CONVERTIBLE
SYMPTOM/CONDITION
When replacing or servicing the gear select indicator, a new shift cable adjuster clip must be installed. The purpose of the clip is to prevent the cable slider from moving after adjustment.
PARTS REQUIRED
1 Clip, PRNDL Cable Retention PN6502391

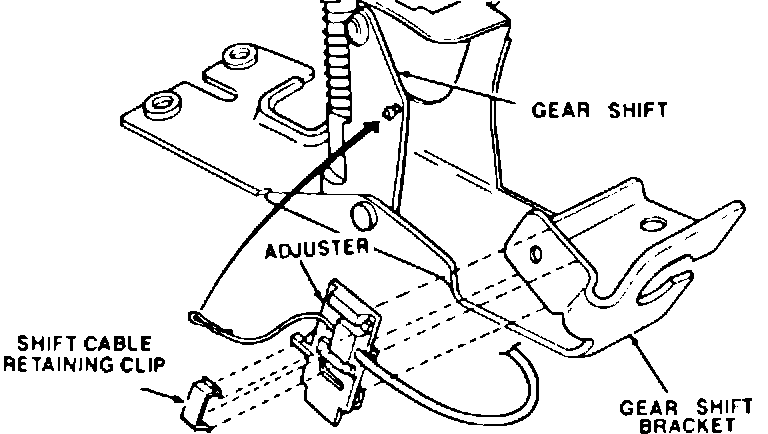

Figure 1:
INSTALLATION PROCEDURE
1. With the console loose, (See Service Manual 81-270- 0102, page 8E-50), and the shifter in Neutral or Park position, attach the adjuster to the tab on the gear shift bracket and the cable to the post on the gear shift as shown in Figure 1.
2. Pull the gear shift handle to the "low/1" position.
3. Check the "PRNDL" selector to insure the red indicator is aligned at the correct gear position.

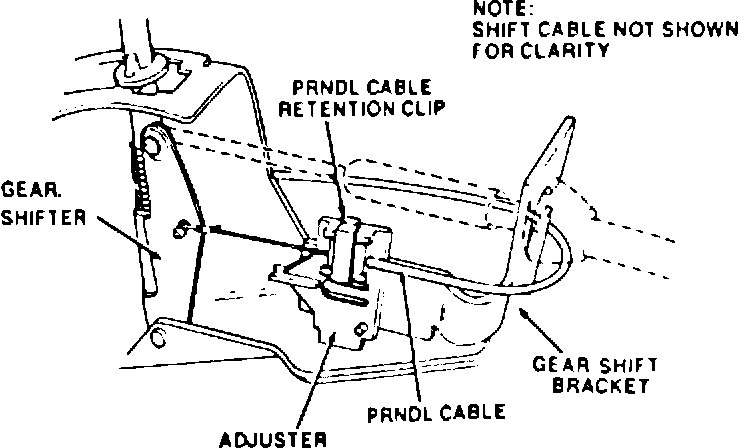

FIGURE 2:
4. Install the PRNDL cable retention clip as shown in Figure 2.
5. Check the PRNDL alignment again to insure the red indicator is clearly visible next to the selected gear position.
6. Install the console as described in the Service Manual (PN 81-270-0102, page 8E-50)
POLICY: Information only.
