Exhaust Gas Recirculation: Locations

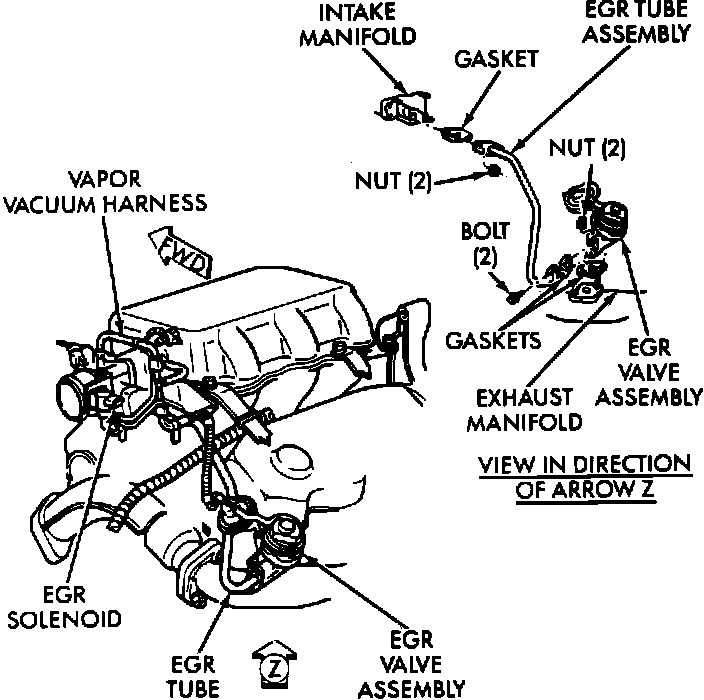

EGR Mounting:

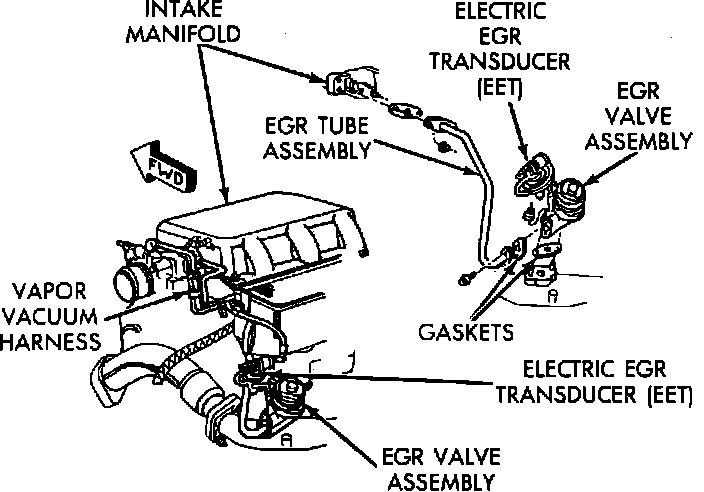

EGR Mounting:

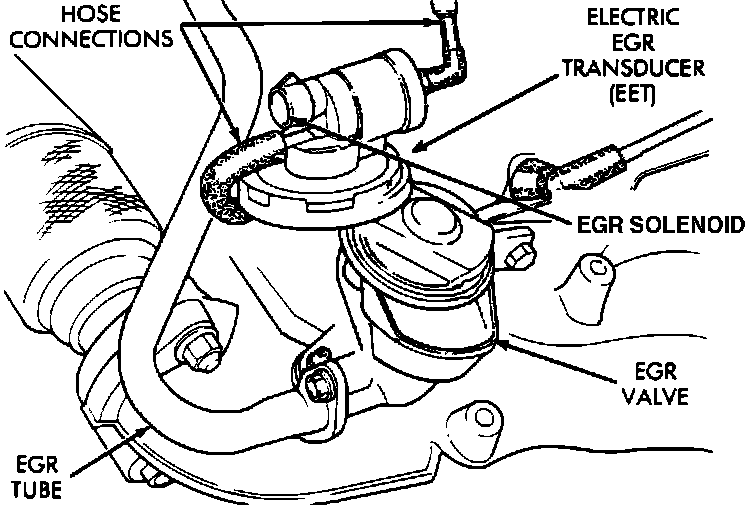

EGR System:
Valve and transducer, mounted on exhaust manifold.
