No Start Test
>>
No Start (NS) Tests
>>
NS-5 Checking For High Fuel Pressure In System
NS-5 Checking For High Fuel Pressure In System

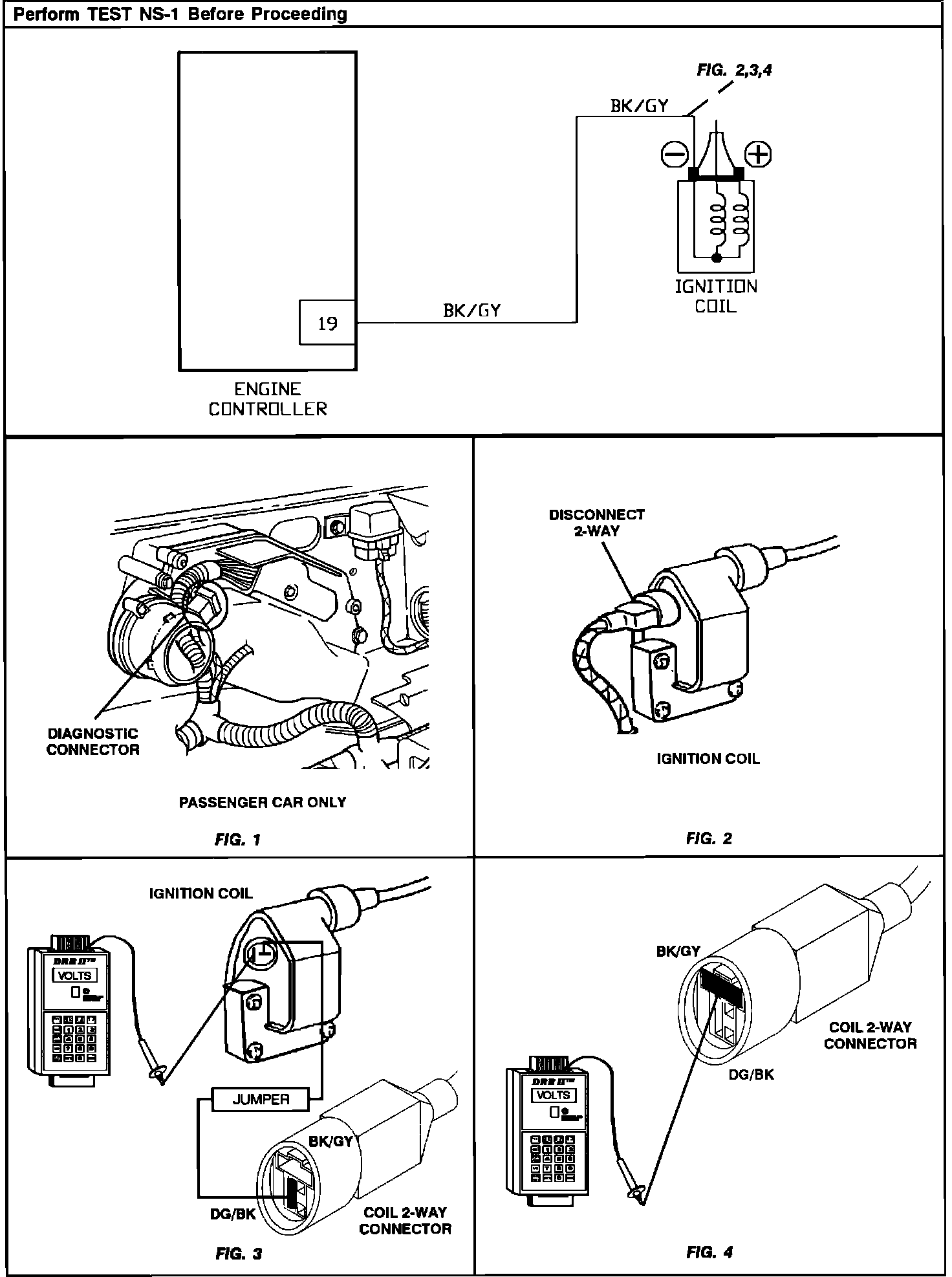

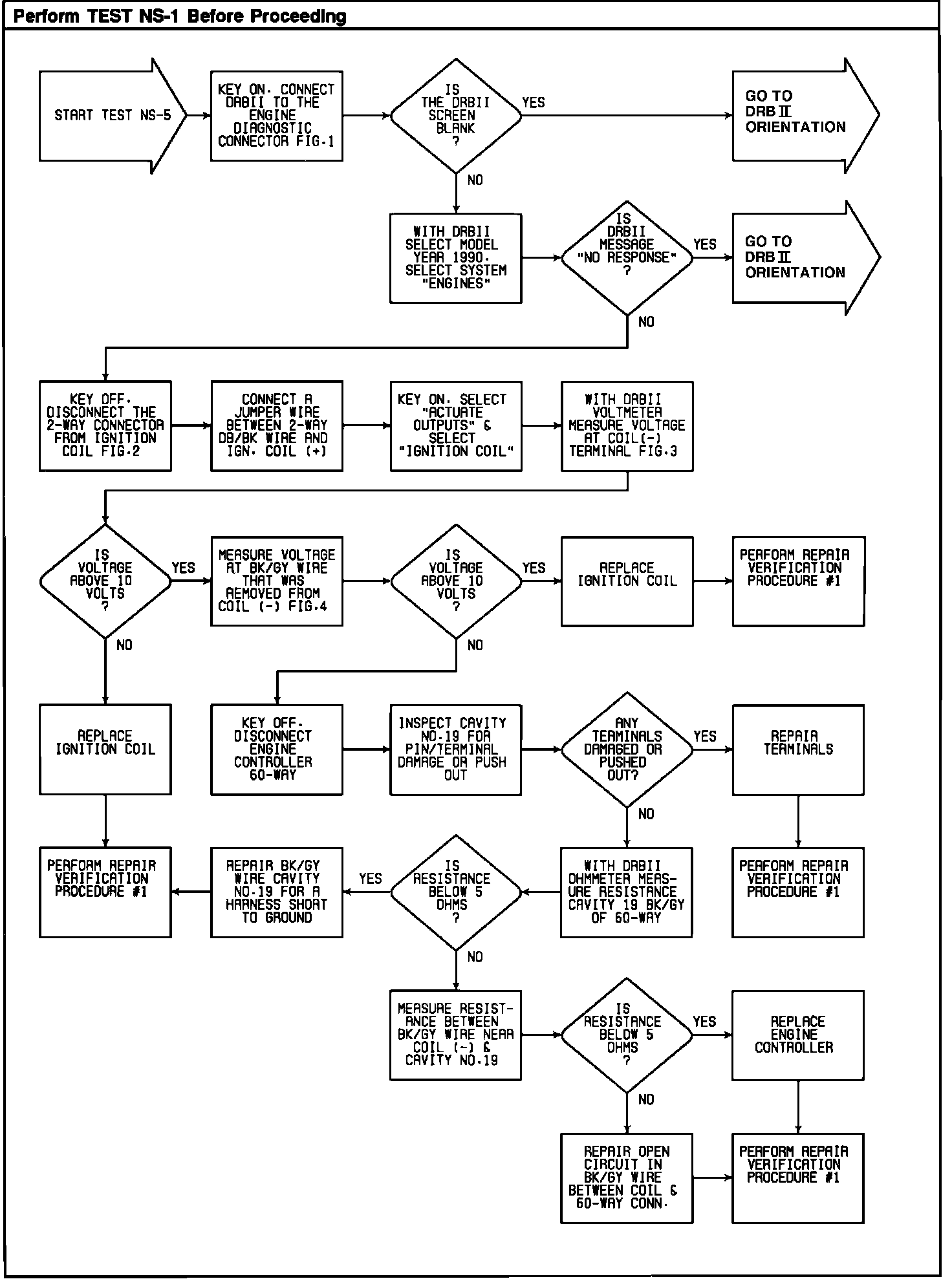

Test NS-5 - Checking For Defective Coil Or Control Circuitry:
Test NS-5 - Checking For Defective Coil Or Control Circuitry:
