No Start Test
>>
Ignition Tests
>>

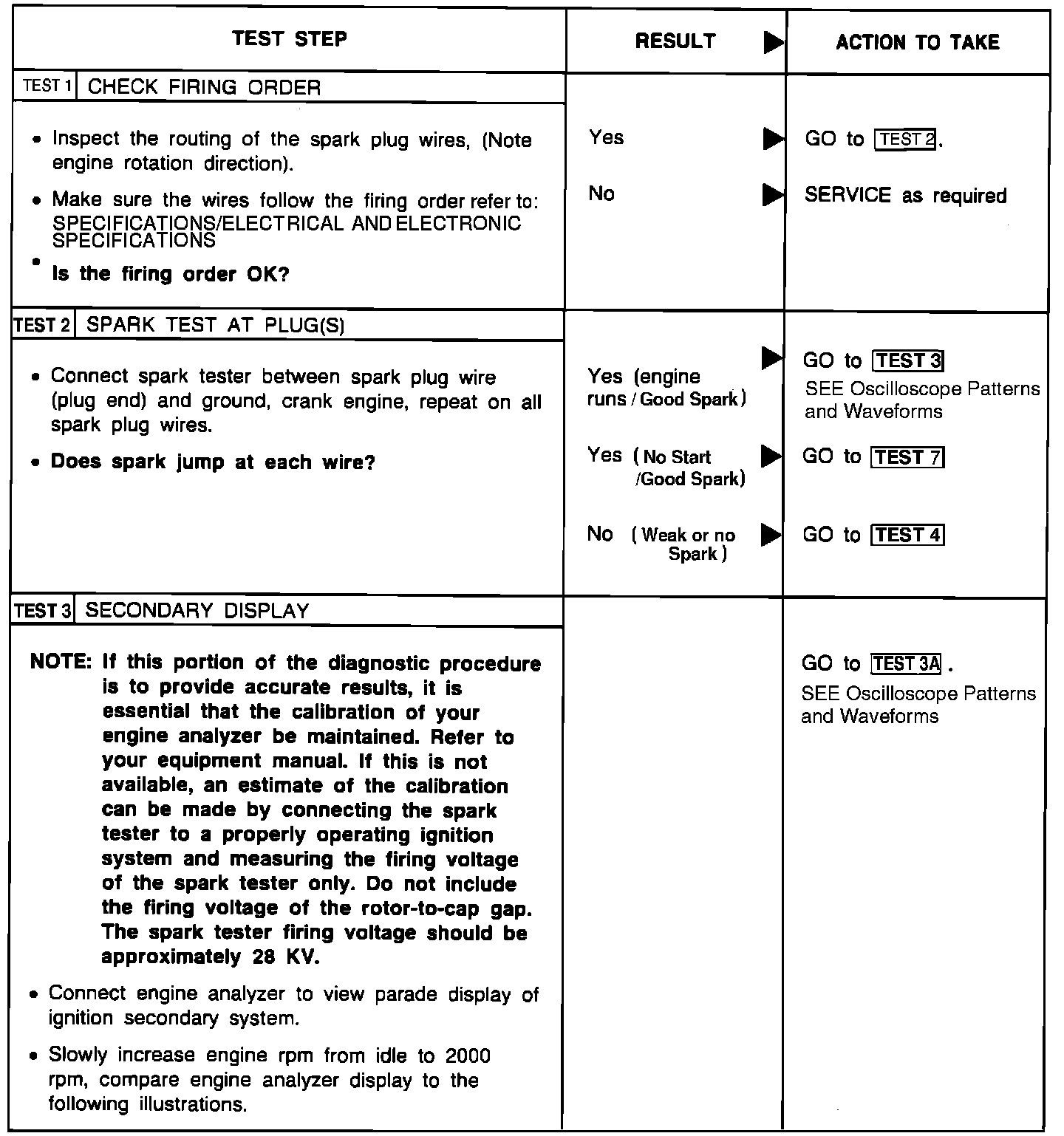

Test 1-3
Test 1-3
Test 1-3---For Test 3A SEE Oscilloscope Patterns And Waveforms:
