Polarity Protection Relay: Locations

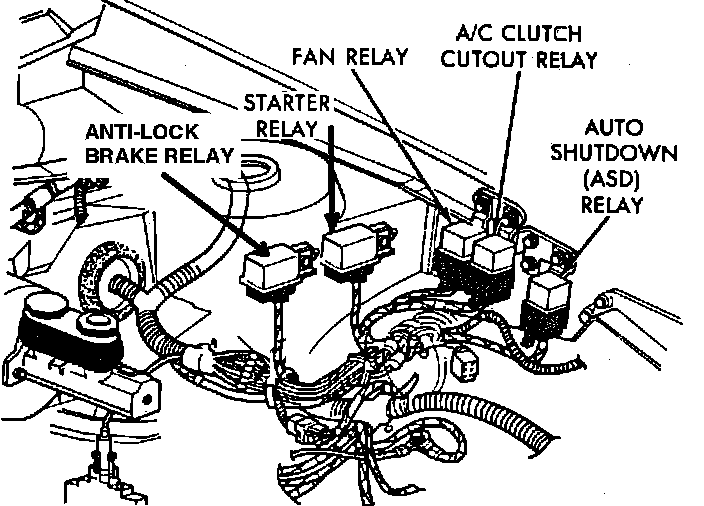

Relay Location:




The Auto Shut Down (ASD) Relay is located by the left strut tower.
