Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
>>
EATX
EATX

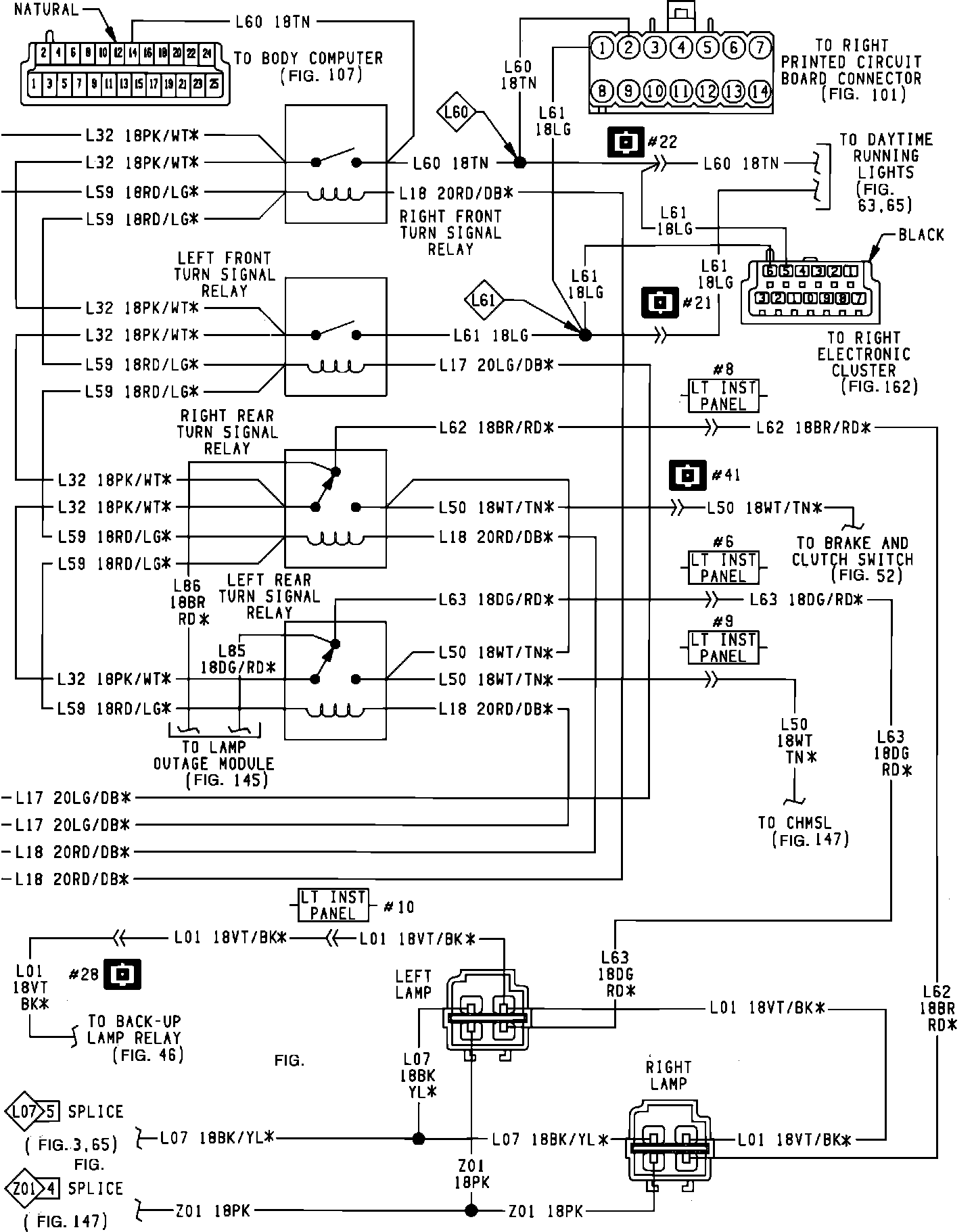

Turn & Hazard Flasher (EATX):

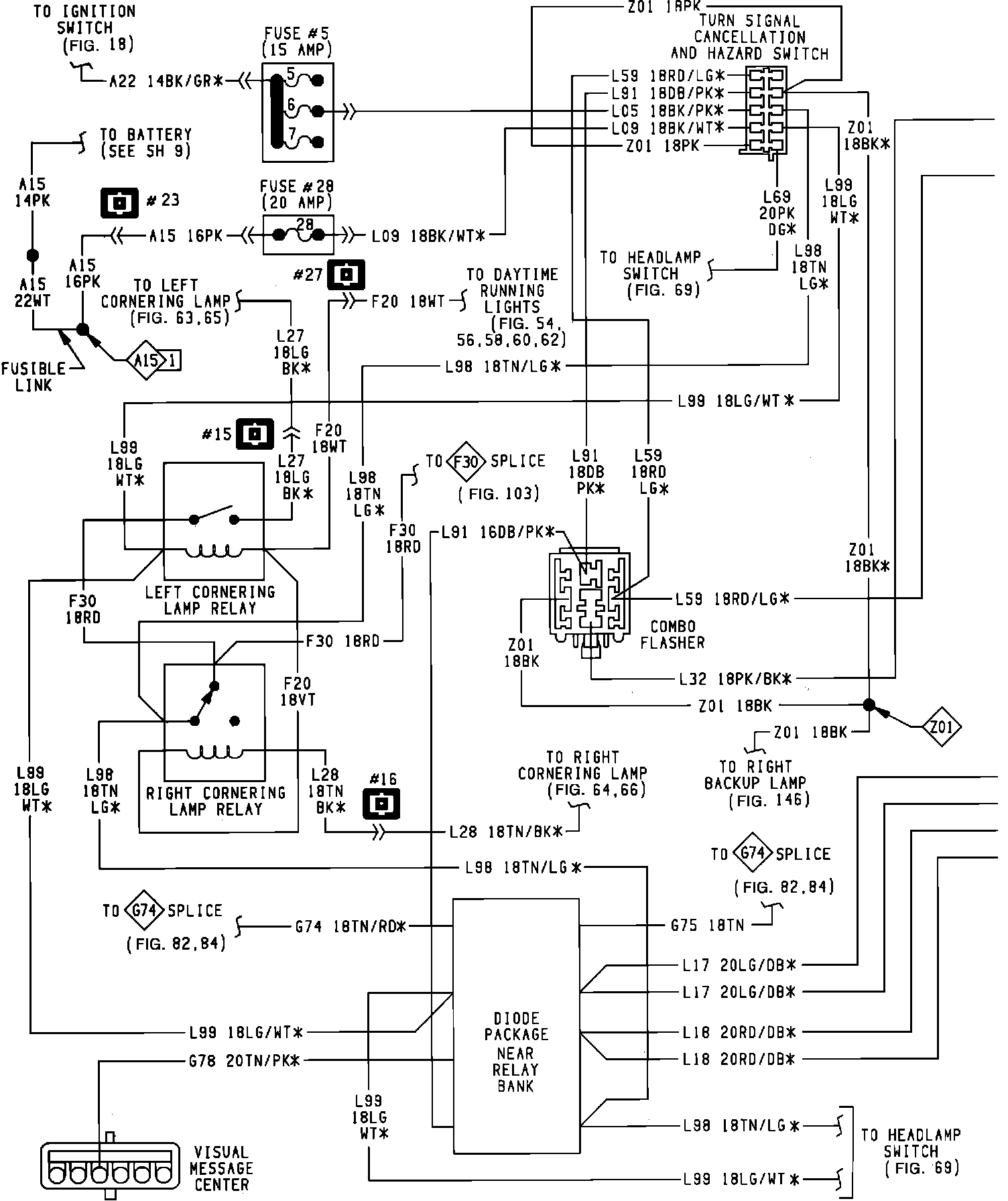

Turn & Hazard Flasher (EATX):
