Backup Lamp Switch: Locations

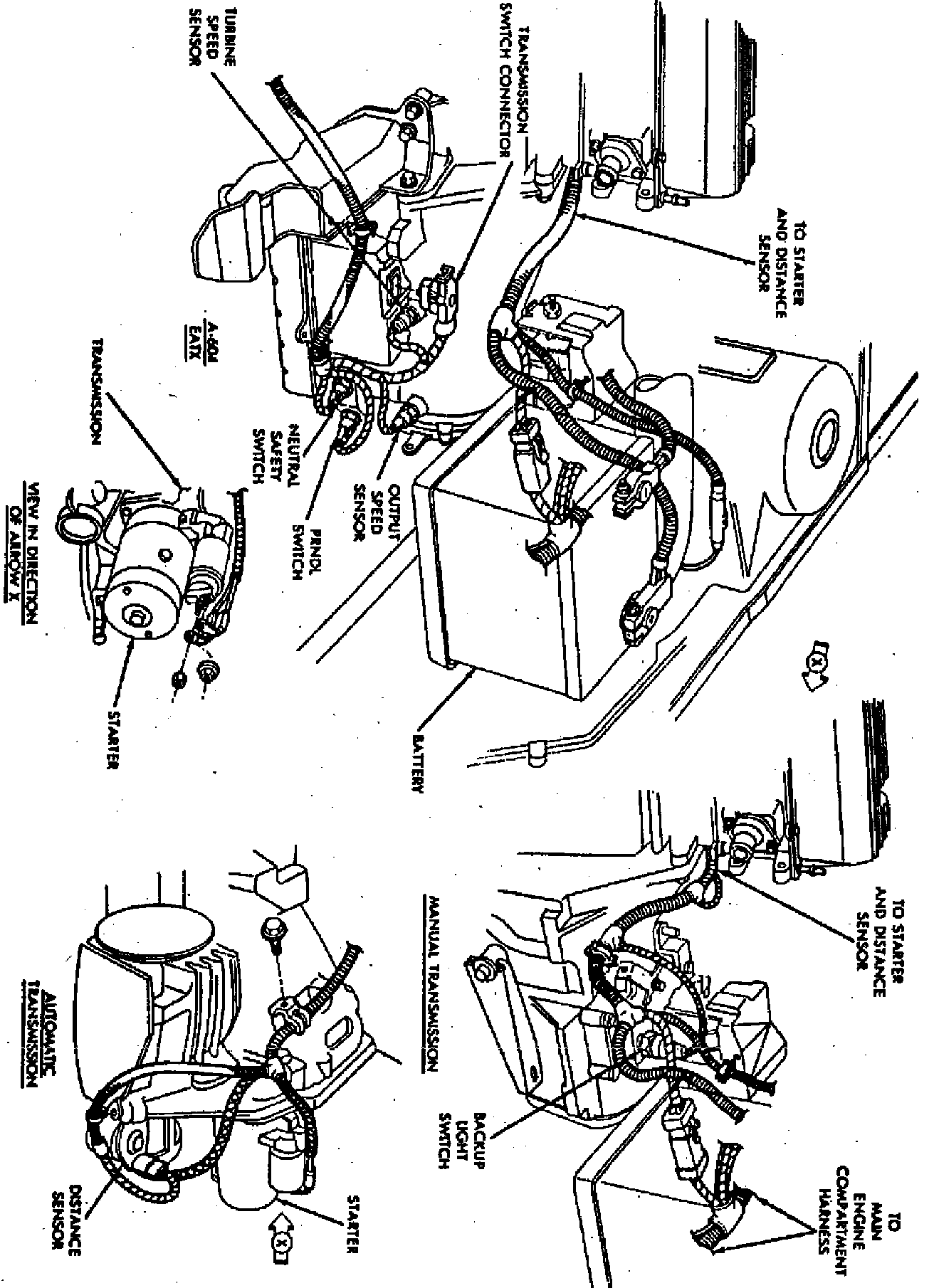

Starter & Transmission Component Location.:

Top LH Side Of Transaxle

Applicable to: 1990 4-153/2.5L EFI, 4-135/2.2L & 4-153/2.5L Turbocharged Models
