Electronic Cluster Connectors - Manual Supplement
90chrysler10 Models1990 AA Body
Subject
Service Manual Supplement Electronic Cluster Circuit Board Connectors
Index
ELECTRICAL
Date
May 21, 1990
No.
08-10-90
(CO8-10-0) P-1394
BODY CODE LEGEND
AA - LEBARON
SERVICE MANUAL SUPPLEMFNT
The 1990 Front Wheel Drive Wiring Diagrams Service Manual Publication # 81-270-0103 has been supplemented to include the electronic cluster printed circuit board connectors for the Chrysler LeBaron.

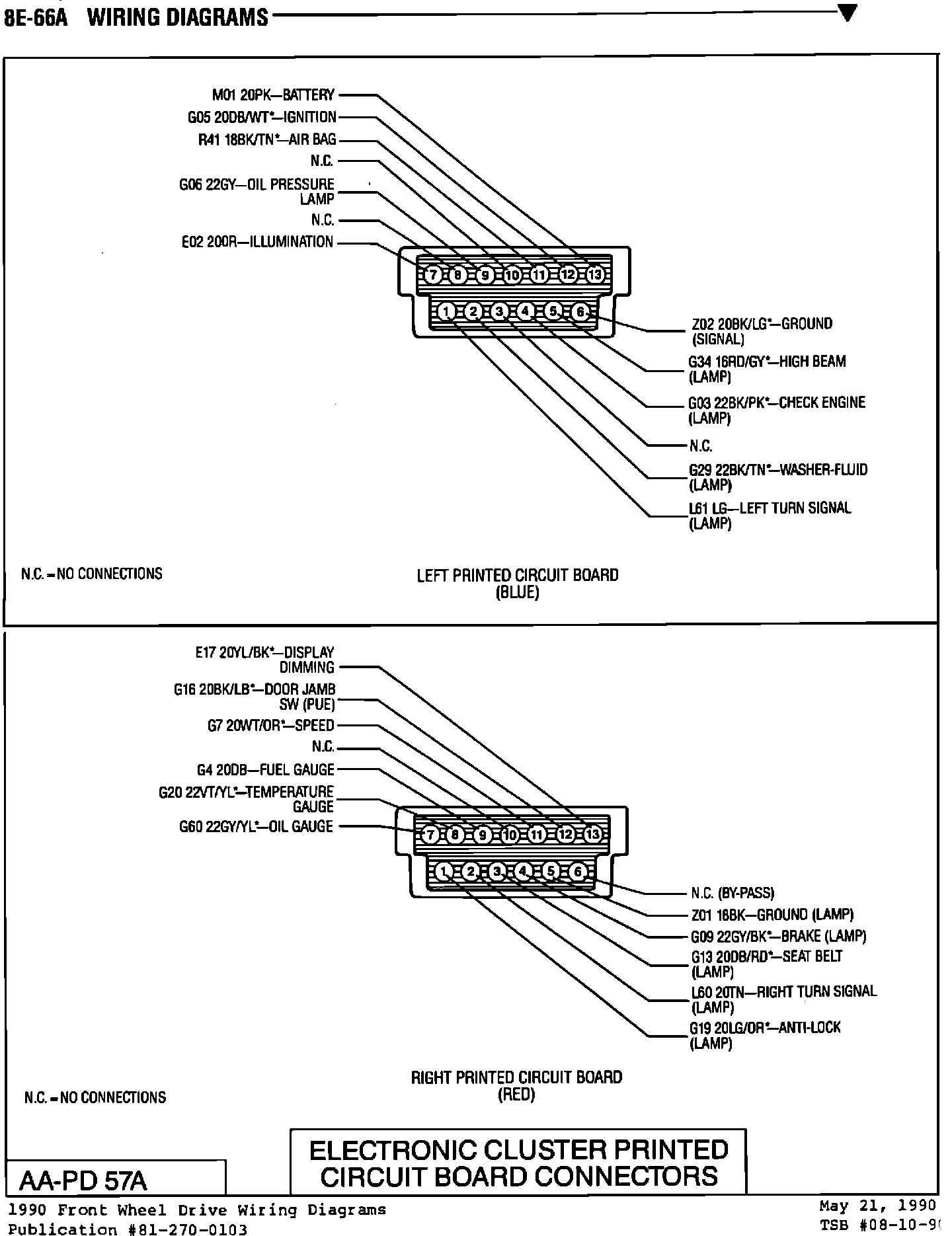

The attached page AA-PD 57A should be placed in your service manual just after page AA-PD 57.
