Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Lamps and Indicators - Engine >> Oil Pressure Warning Lamp/Indicator >> Diagrams >> Electrical Diagrams >> EATX

EATX

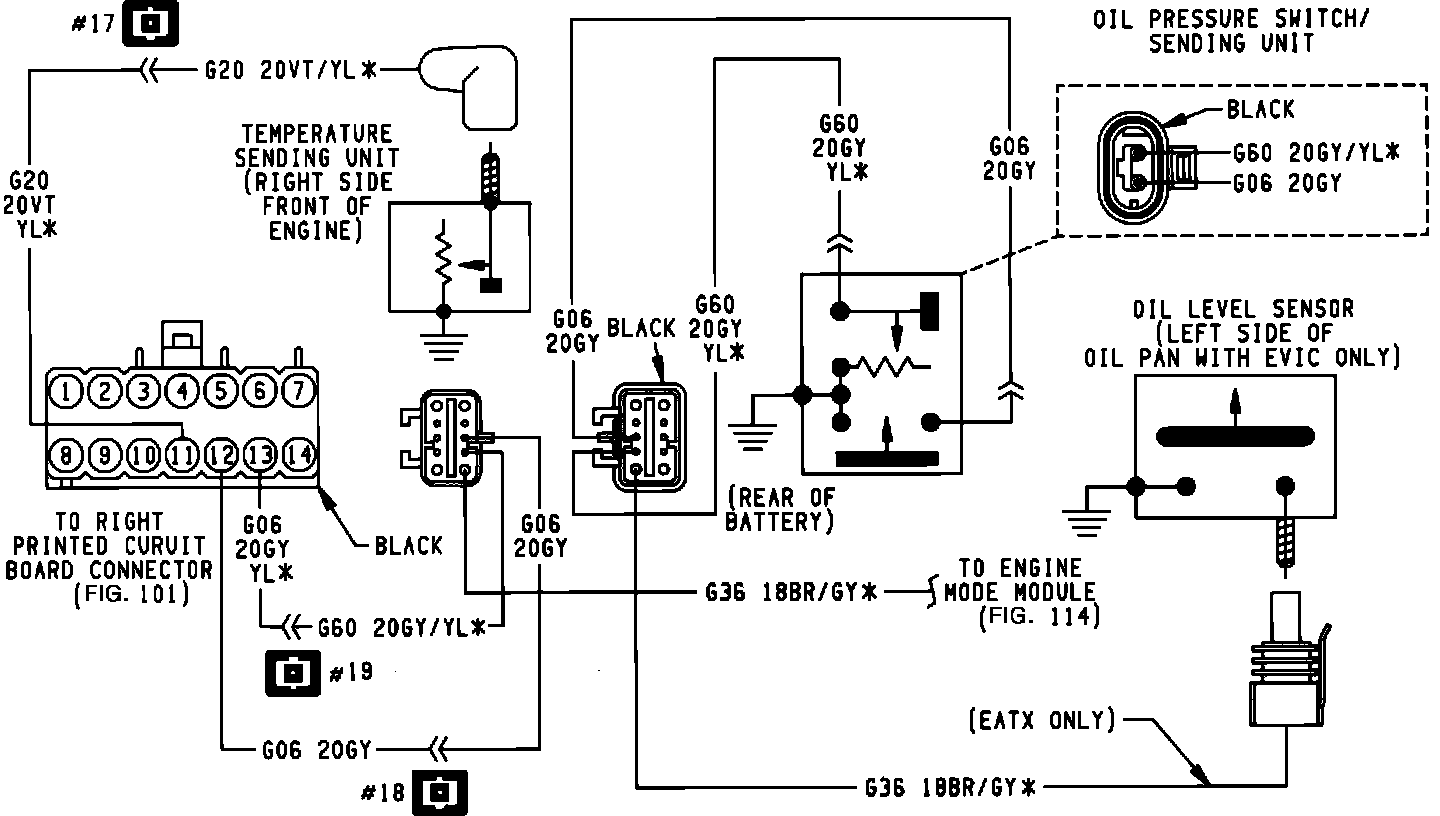

Oil & Temperature Warning System:
