Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Relays and Modules - Cooling System >> Radiator Cooling Fan Motor Relay >> Diagrams >> Electrical Diagrams >> Without Air Conditioning

Without Air Conditioning

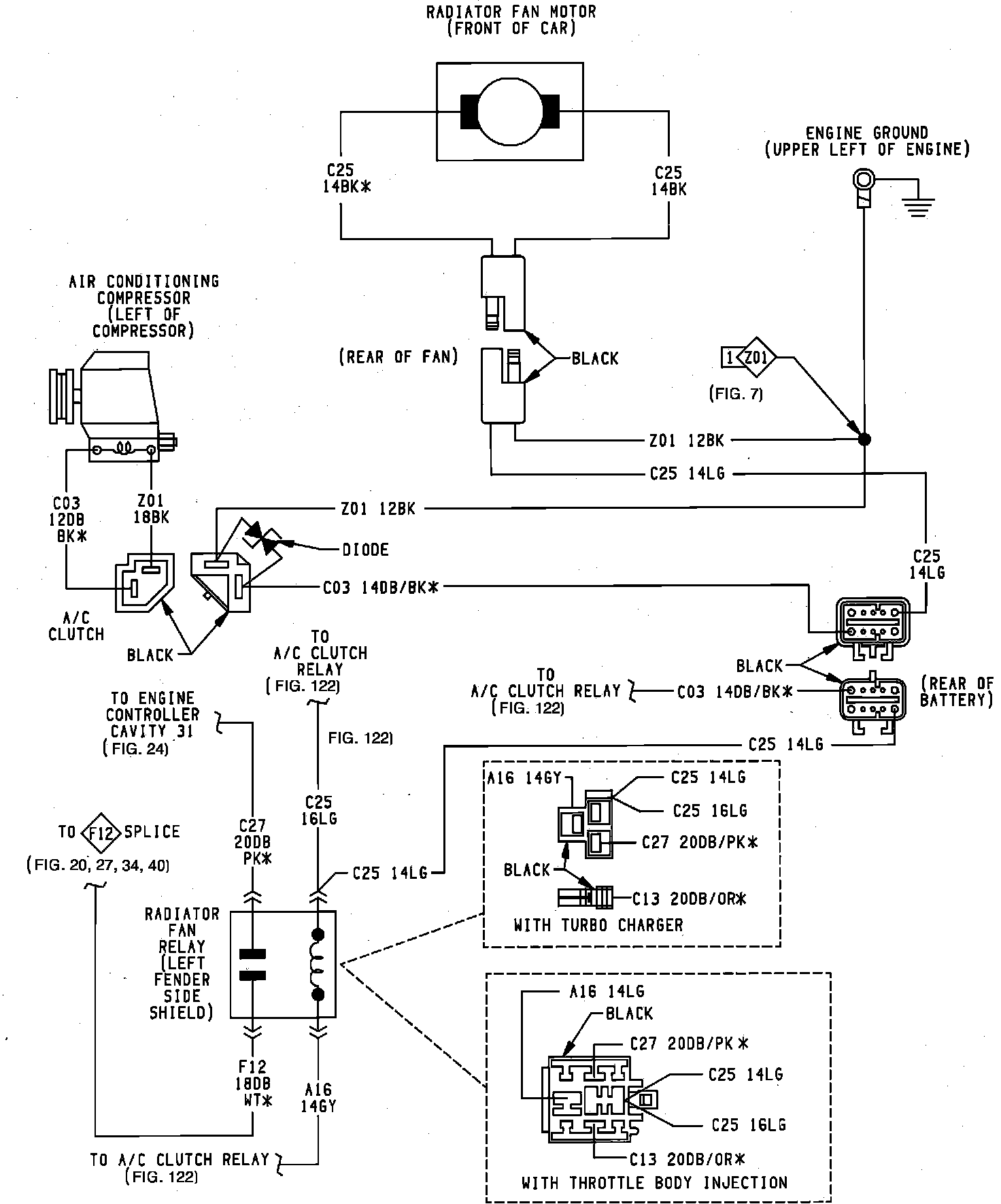

Radiator Fan System With Heater:
