Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Motor Relay
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Conditioning
With Air Conditioning

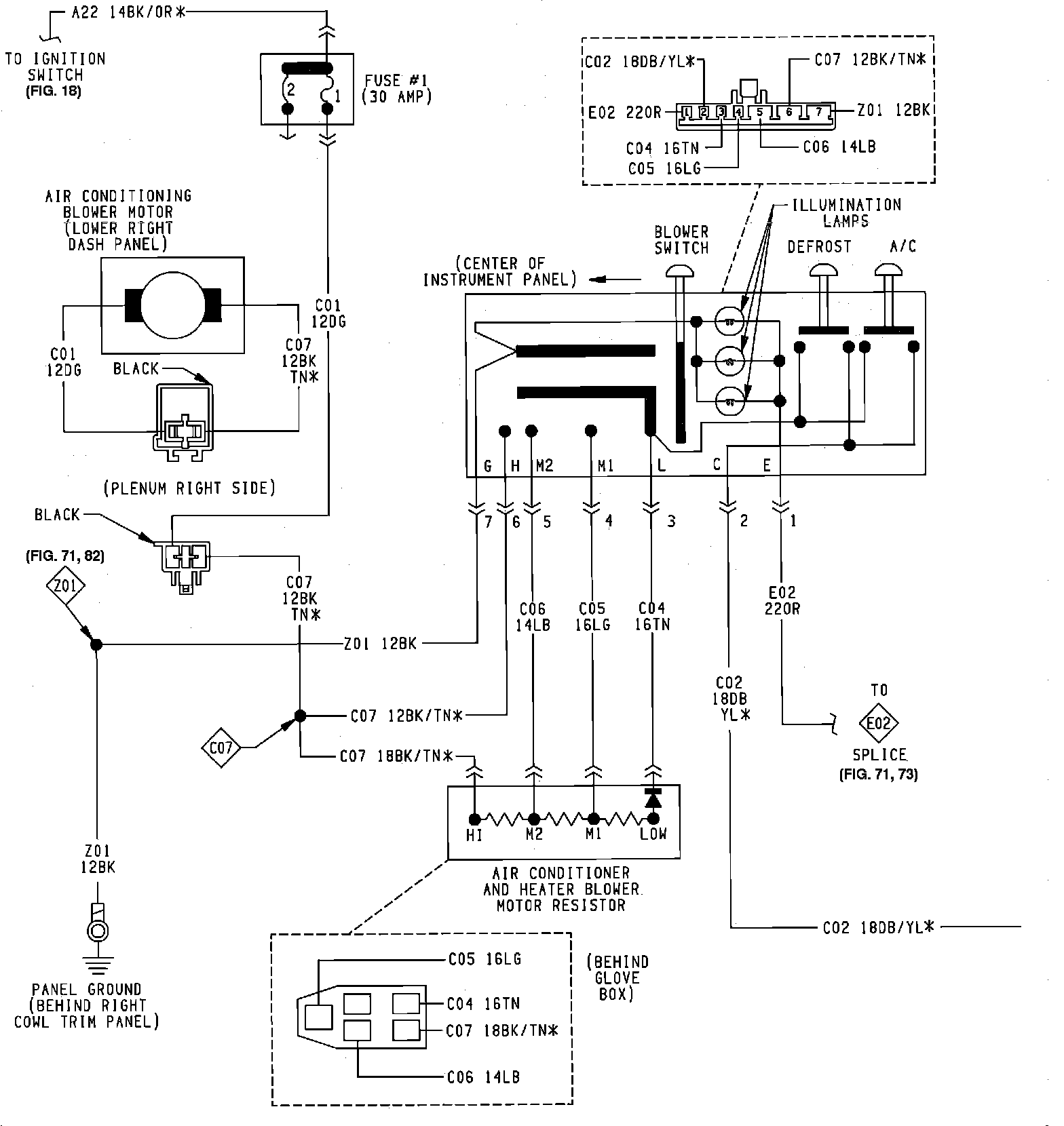

A/C With Heater (Part 1 Of 2):
Cooling Fan With A/C & Heater (Part 2 Of 2):
