Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Radiator Cooling Fan Temperature Sensor / Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

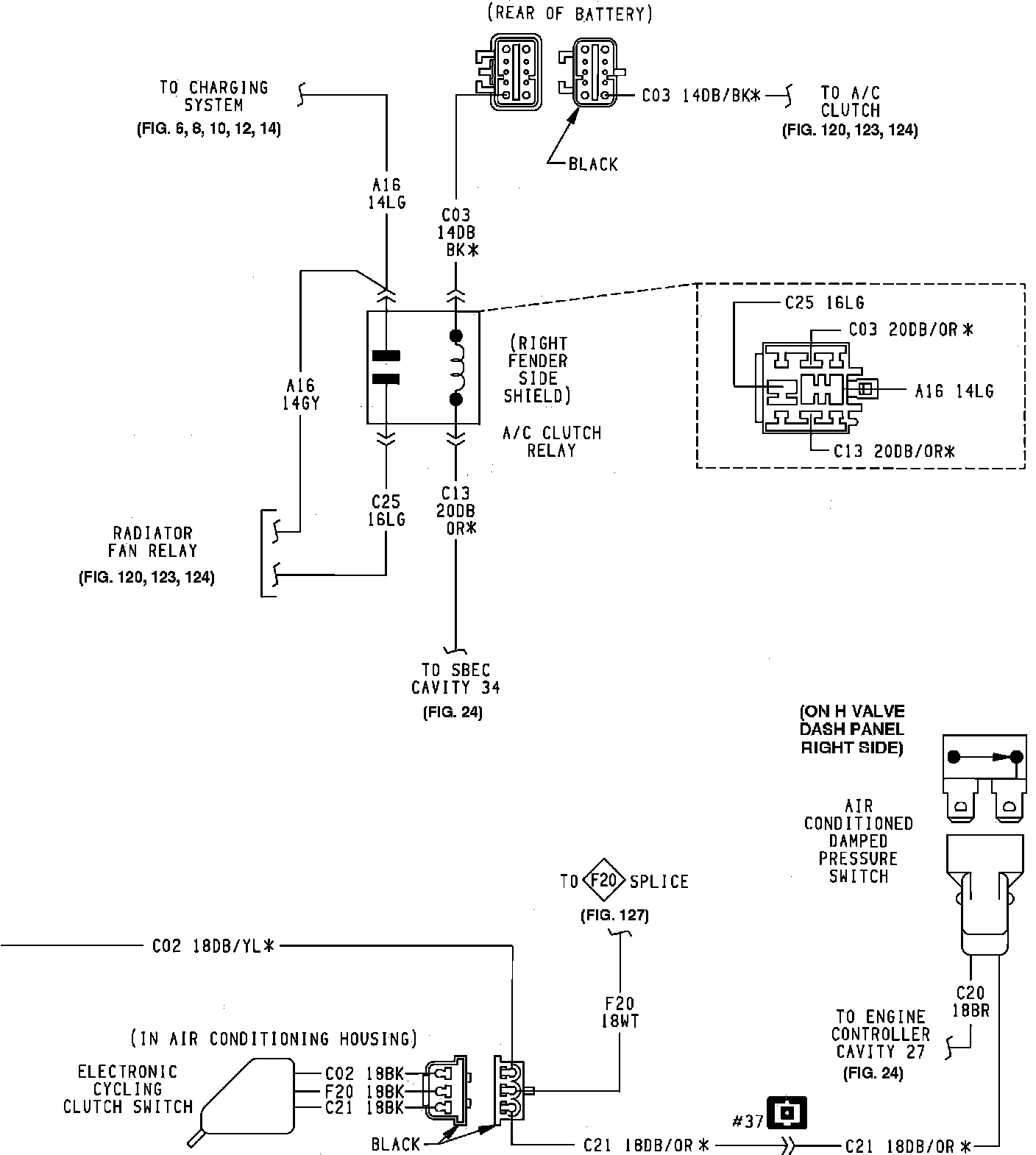

Cooling Fan With A/C & Heater (Part 2 Of 2):
