Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> Except California/Canada >> Without Anti-Lock Brakes

Without Anti-Lock Brakes

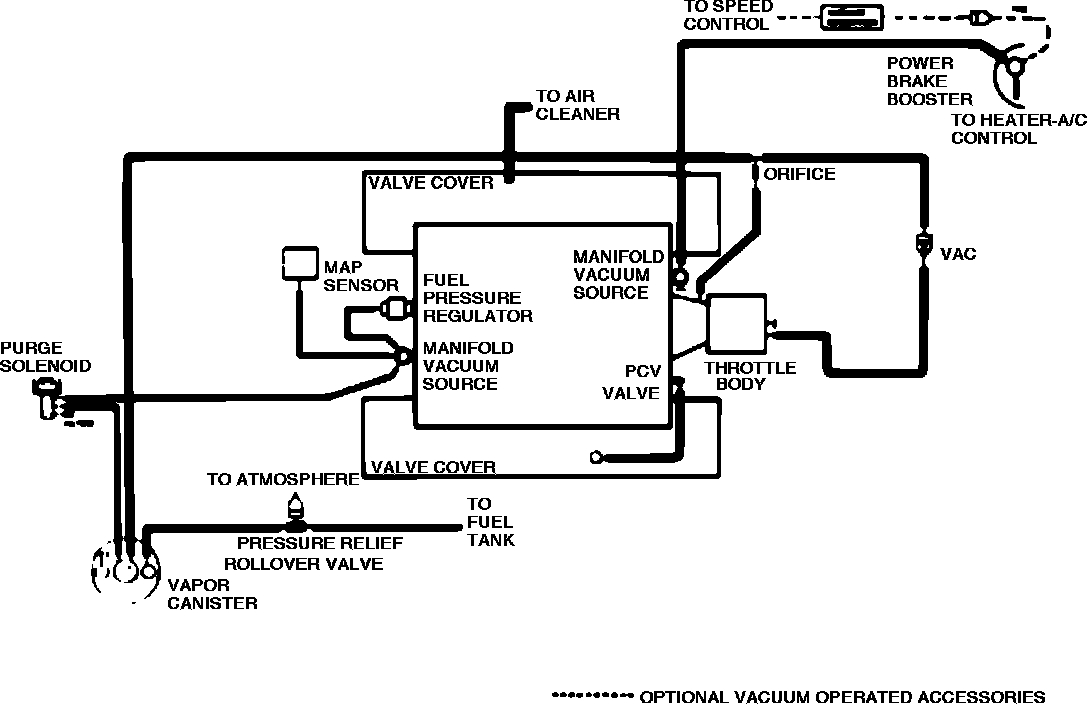

Vapor and Vacuum Hose Diagrams:
