Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Wiring Diagrams >> With Intermittent Wiper

With Intermittent Wiper

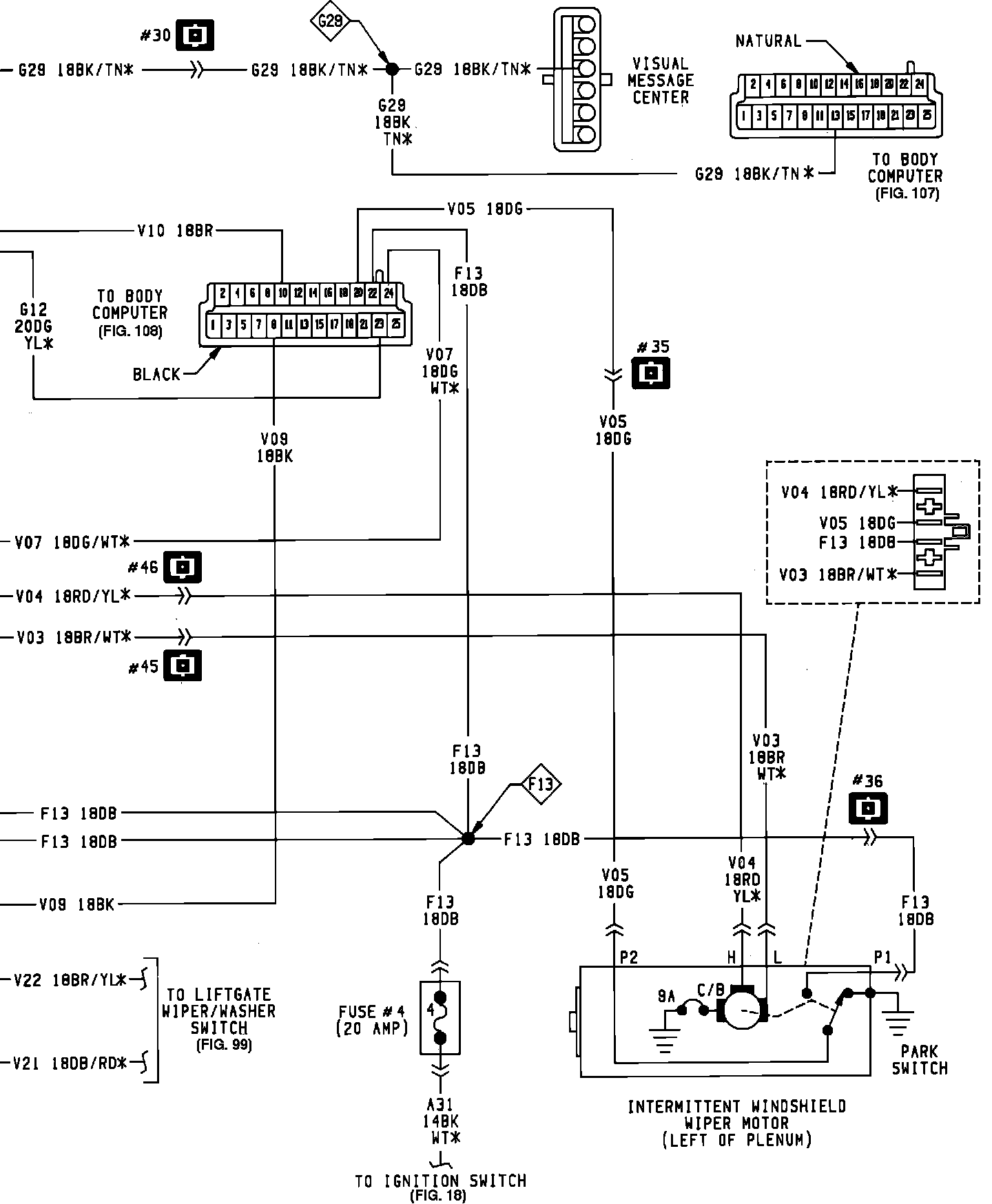

Intermittent Wiper:

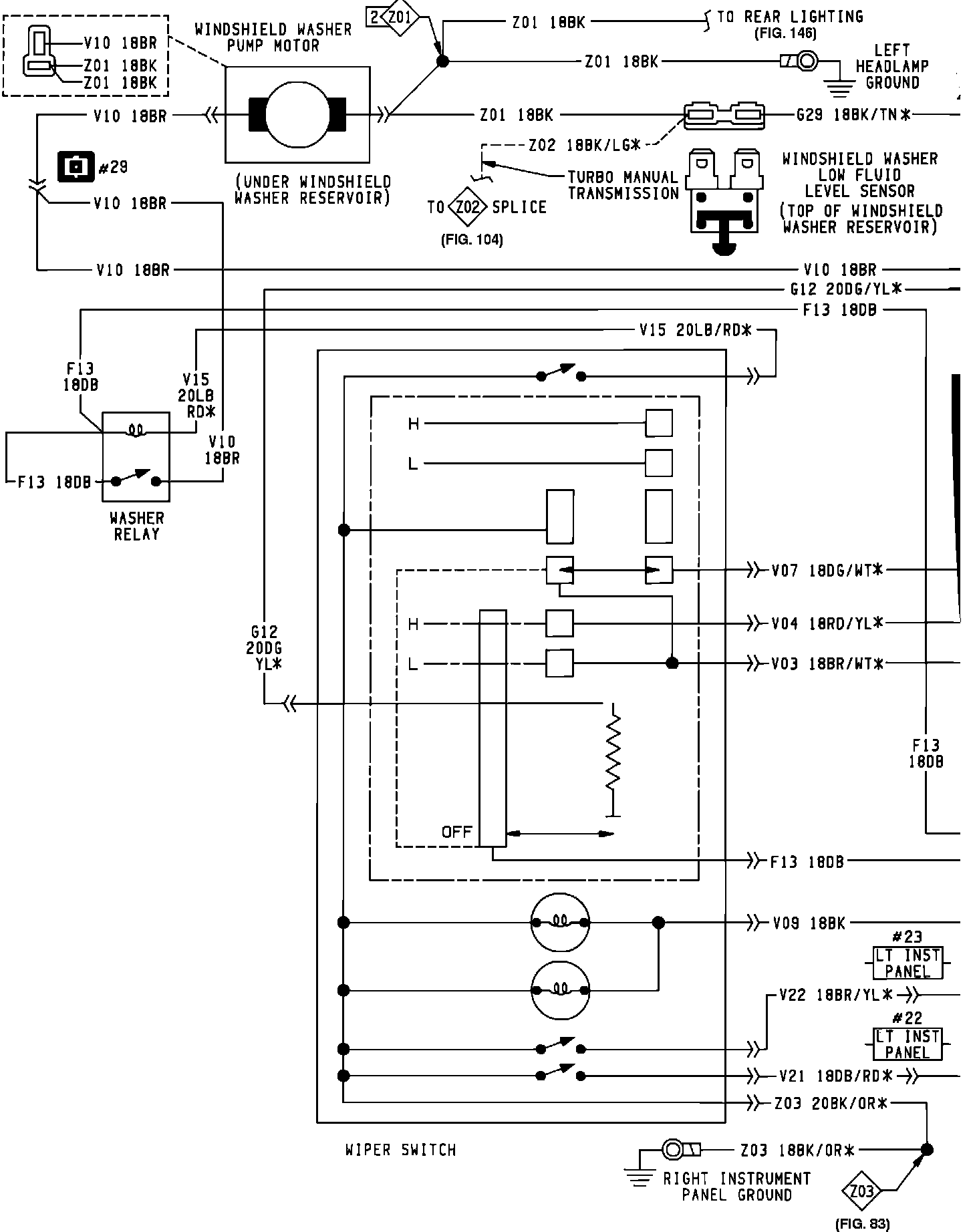

Intermittent Wiper:
