Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> System Diagram

System Diagram

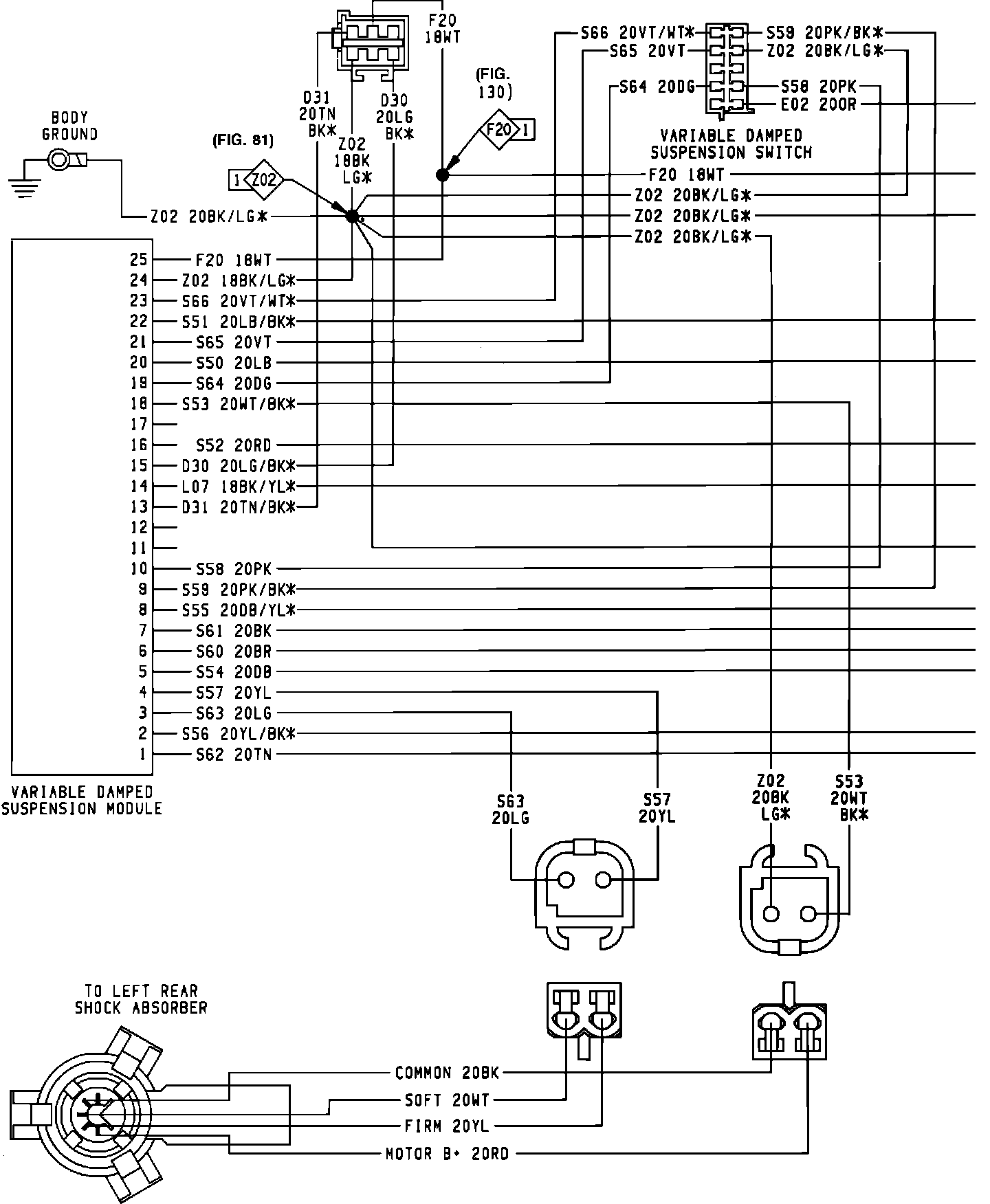

Fig. 2 Variable Dampening Suspension Wiring Circuit:

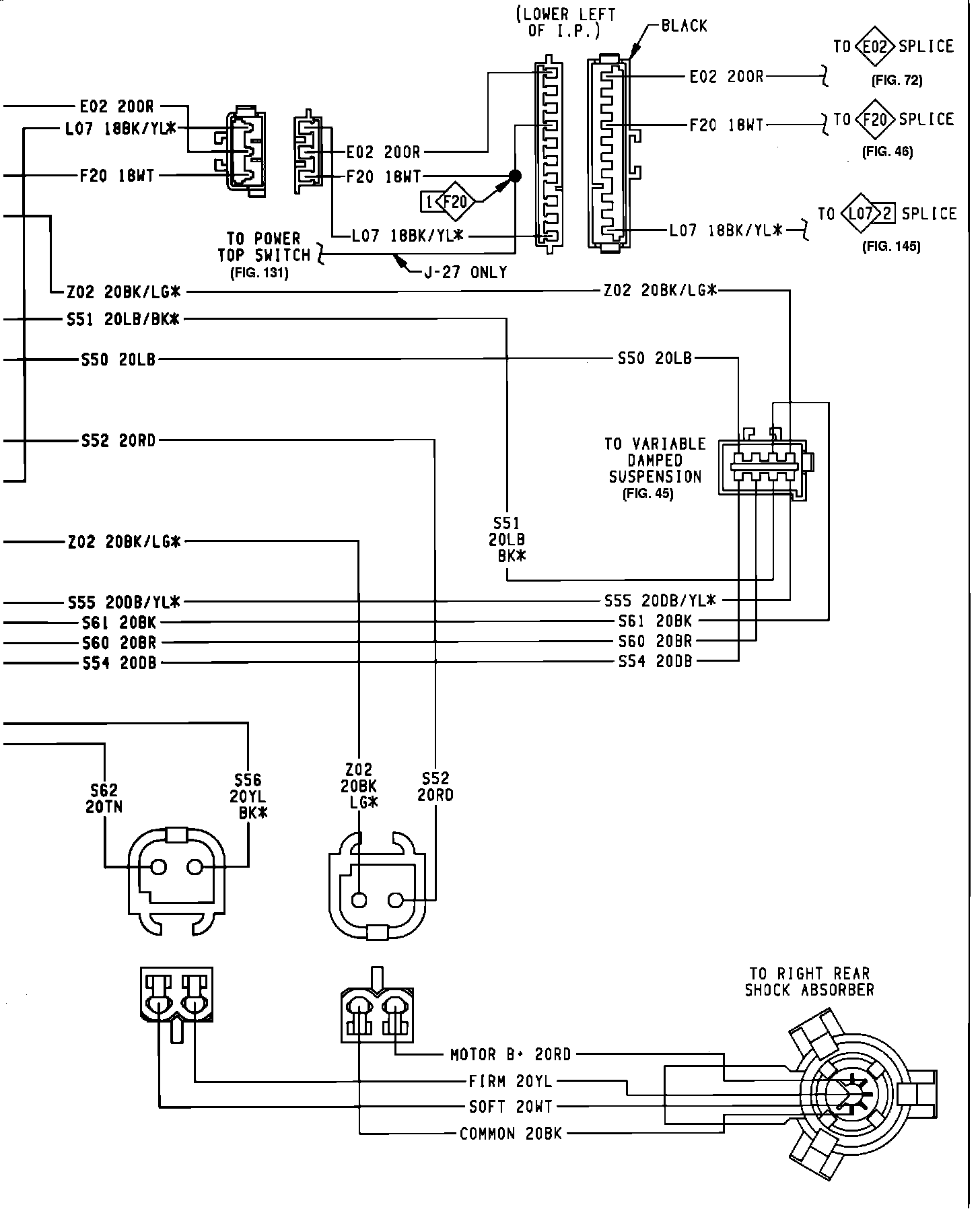

Variable Damped Suspension:

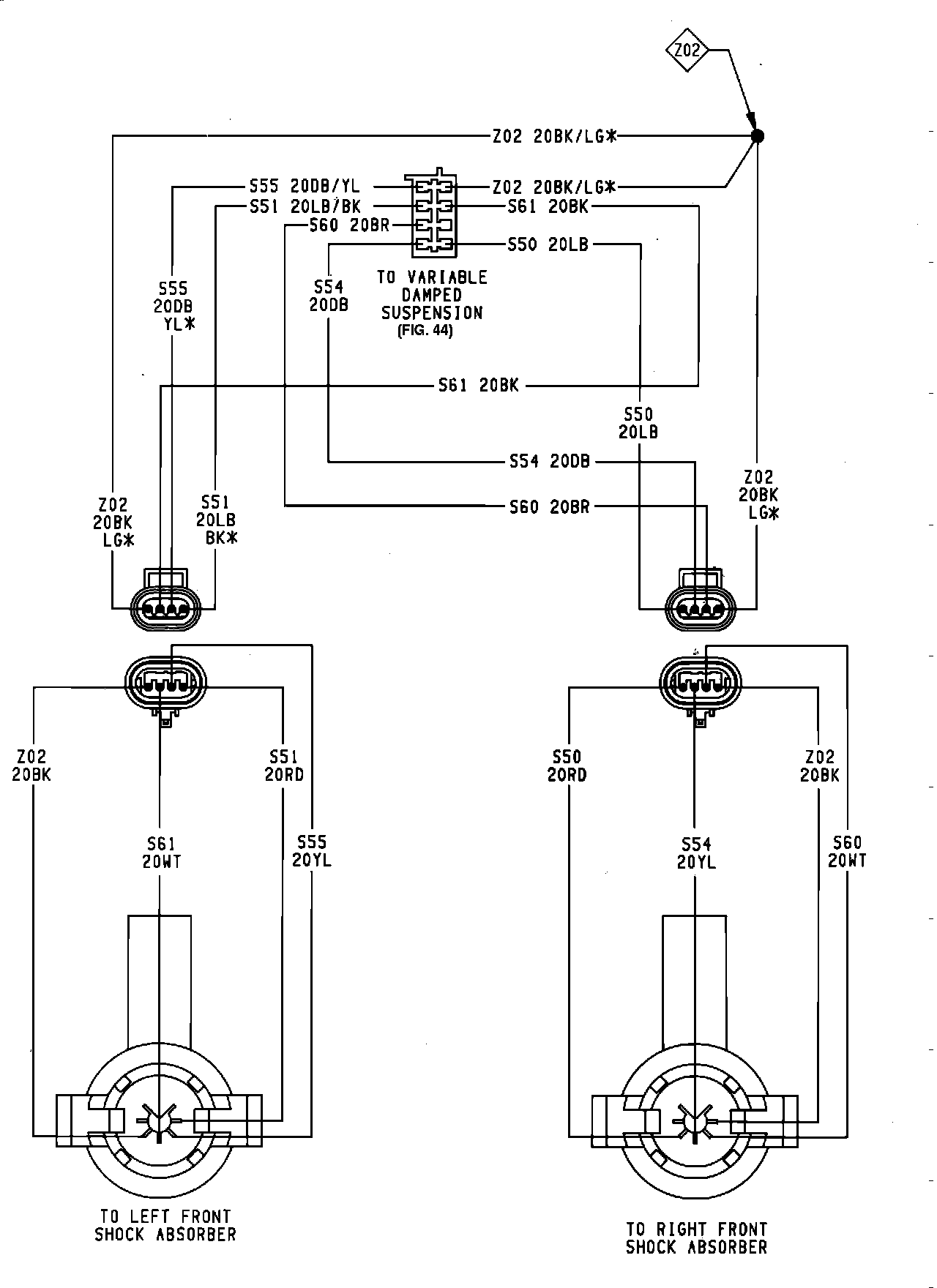

Variable Damped Suspension:



Variable Damped Suspension:
