Power Distribution

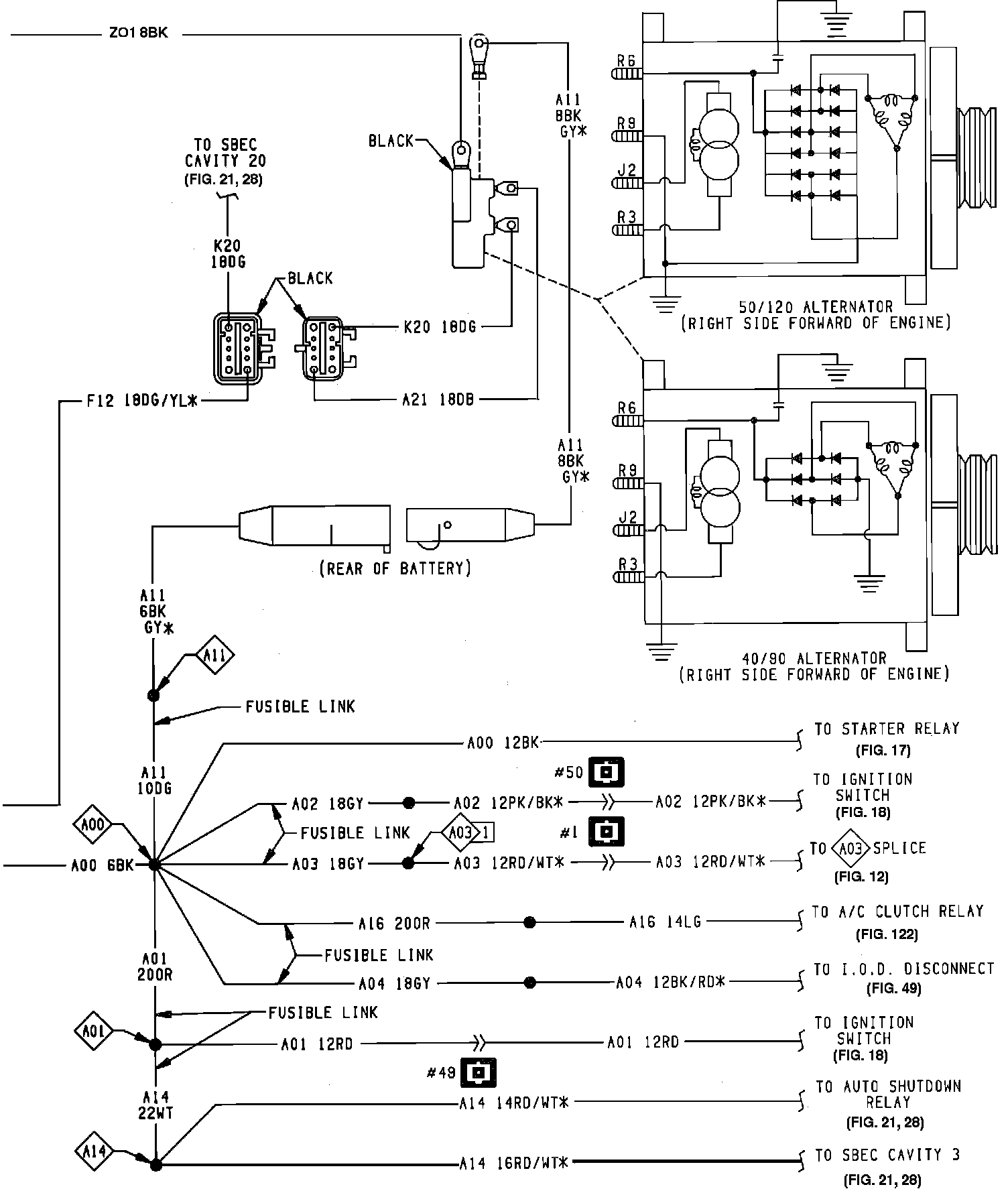

Charging System:



Charging System:

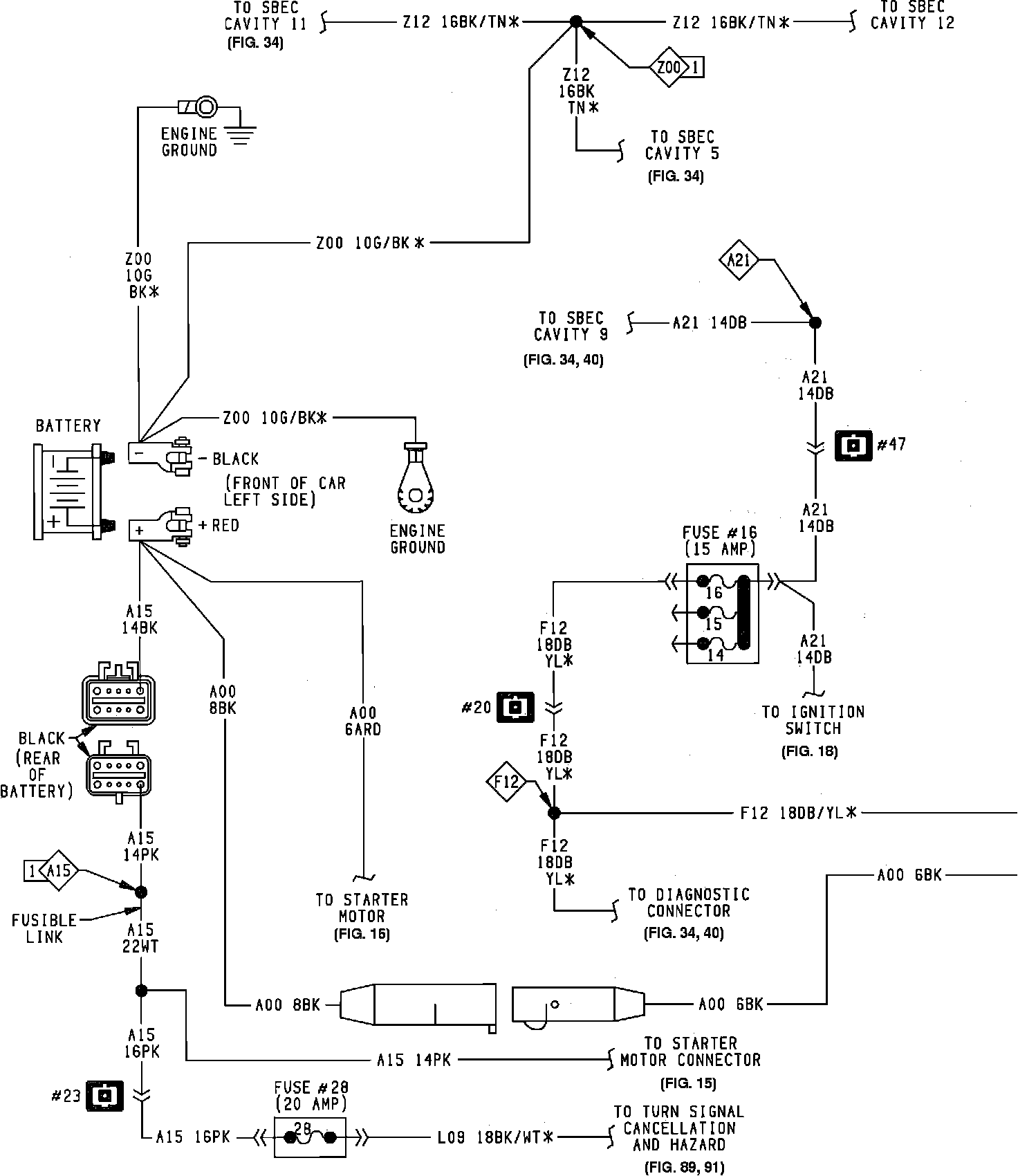

Charging System (ETAX):

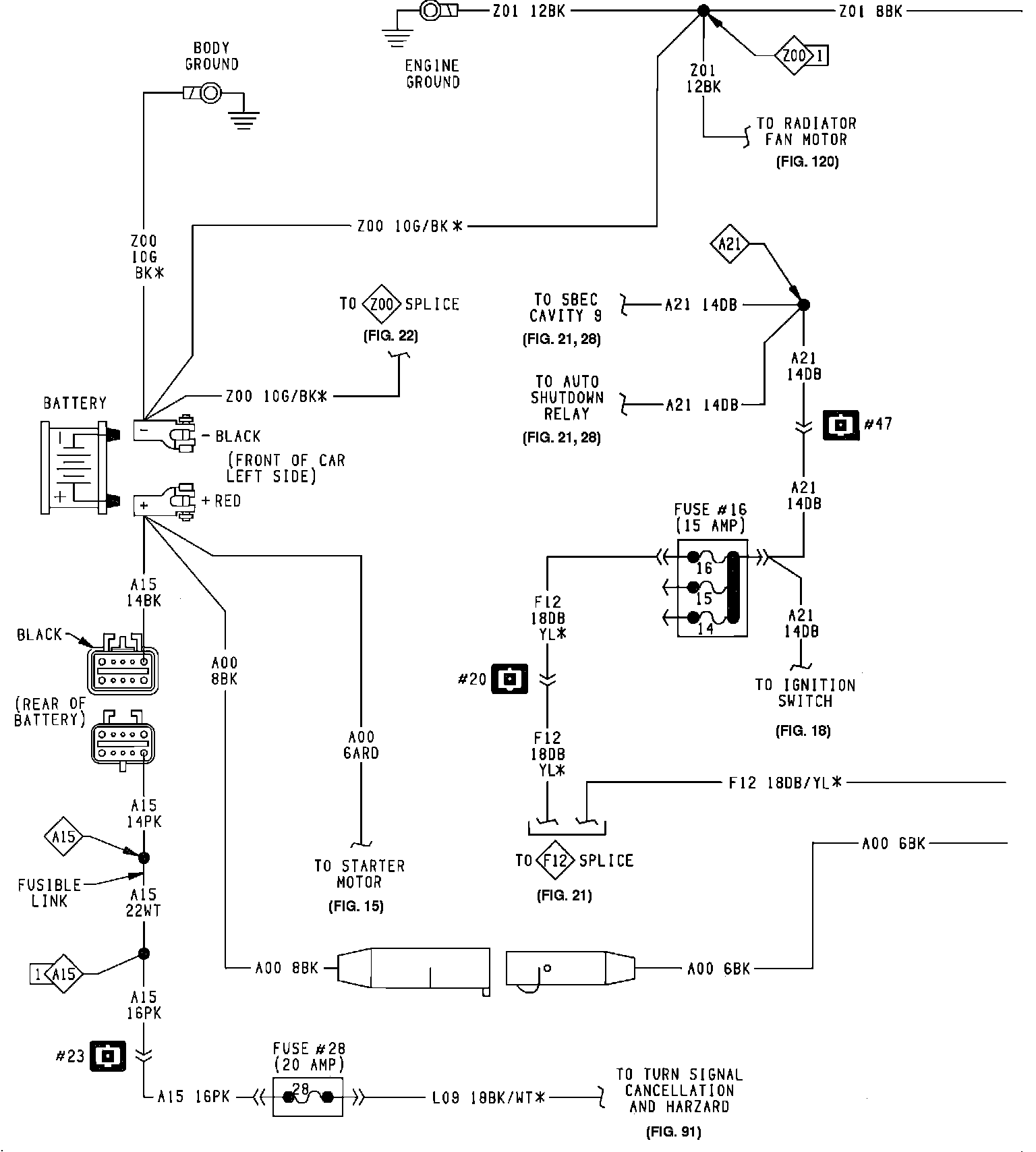

Charging System (ETAX):
