Chrysler
>>
1990
>>
Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Fuse Panel Details
>>
Fuse Block Module & Relay Bank
Fuse Block Module & Relay Bank

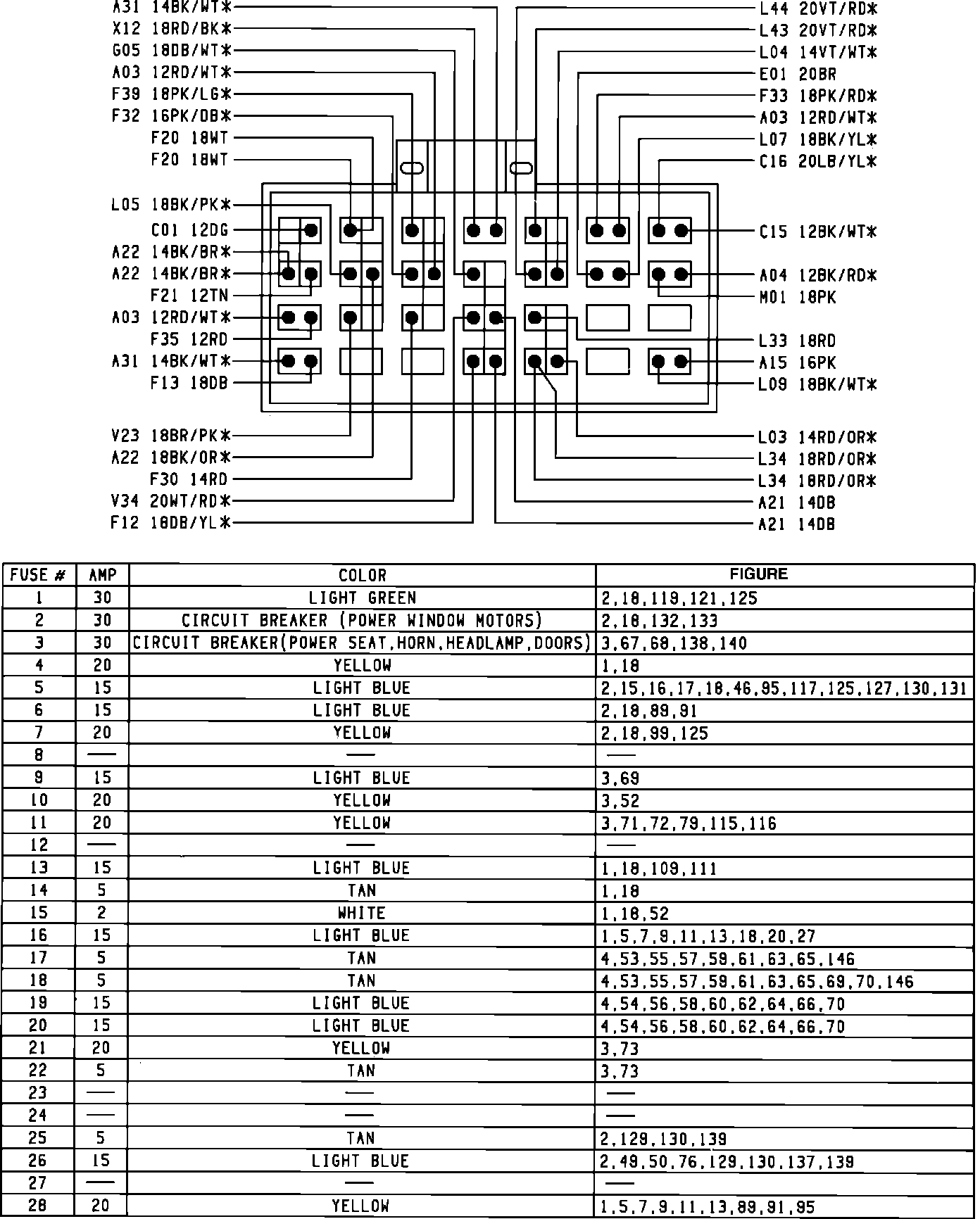

Fuseblock Module & Relay Bank:
