Radio/Stereo

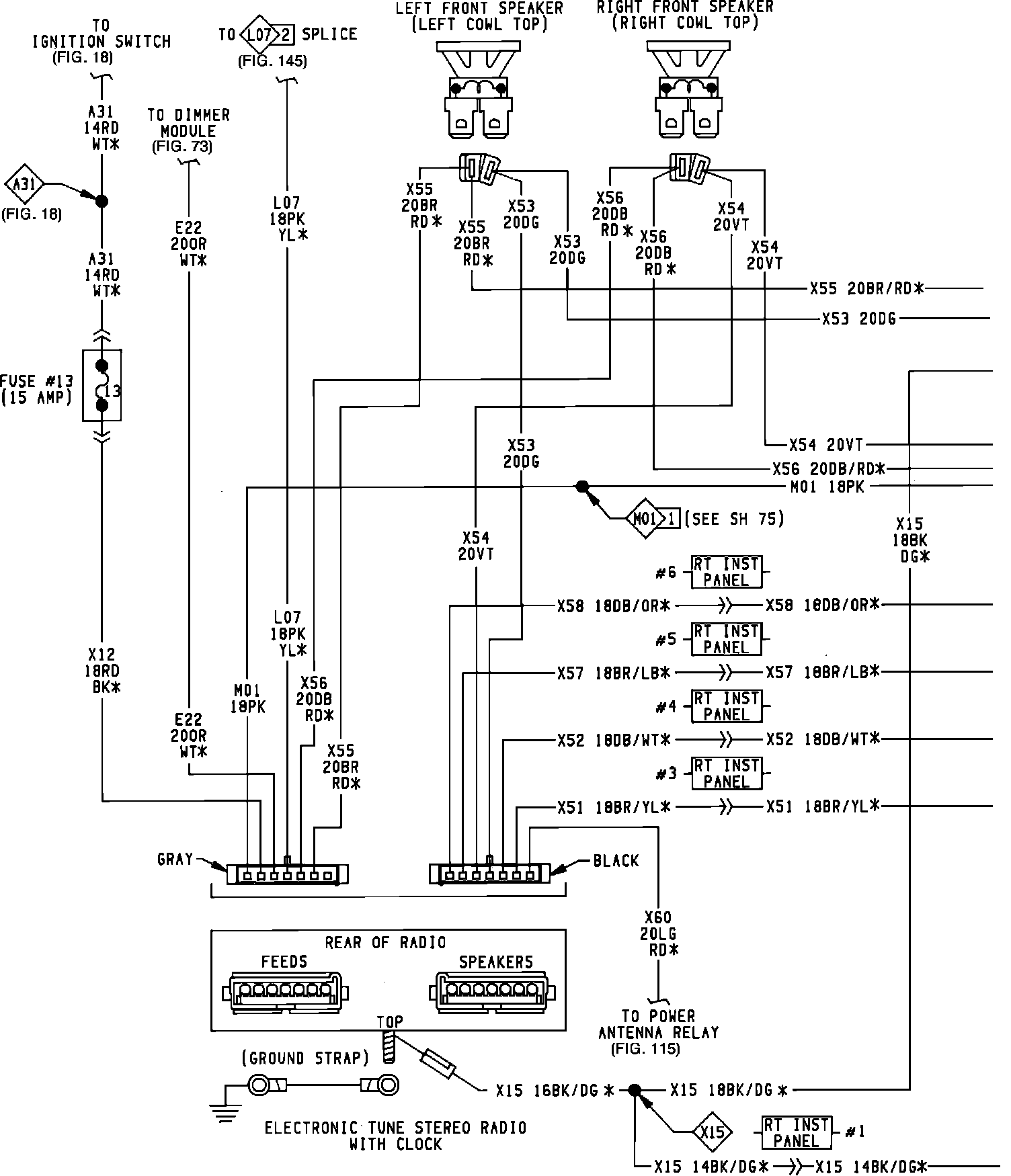

Electronically Tuned Radio W/Name Brand Speakers:

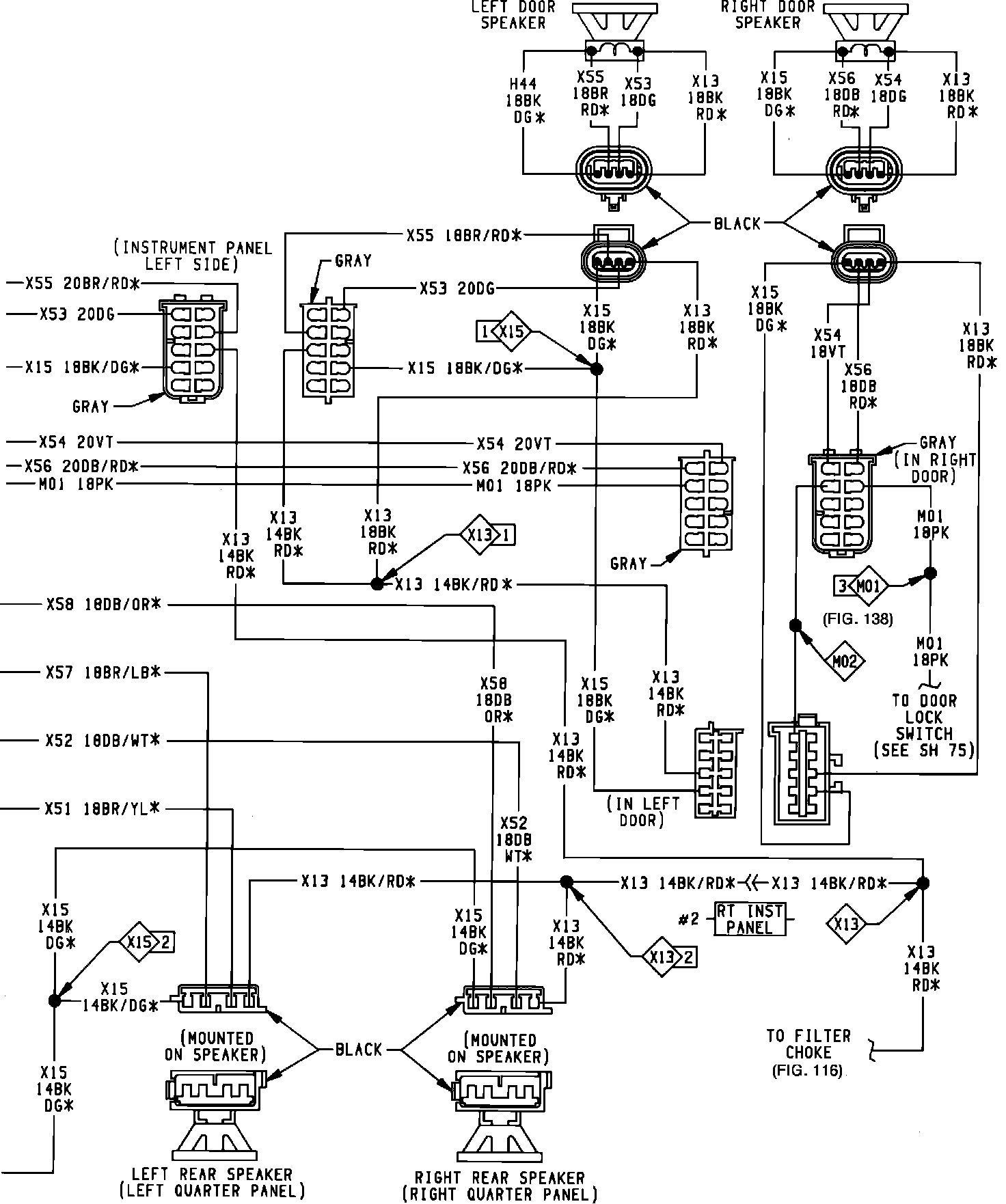

Front Door & Rear Speakers W/Name Brand Speakers:

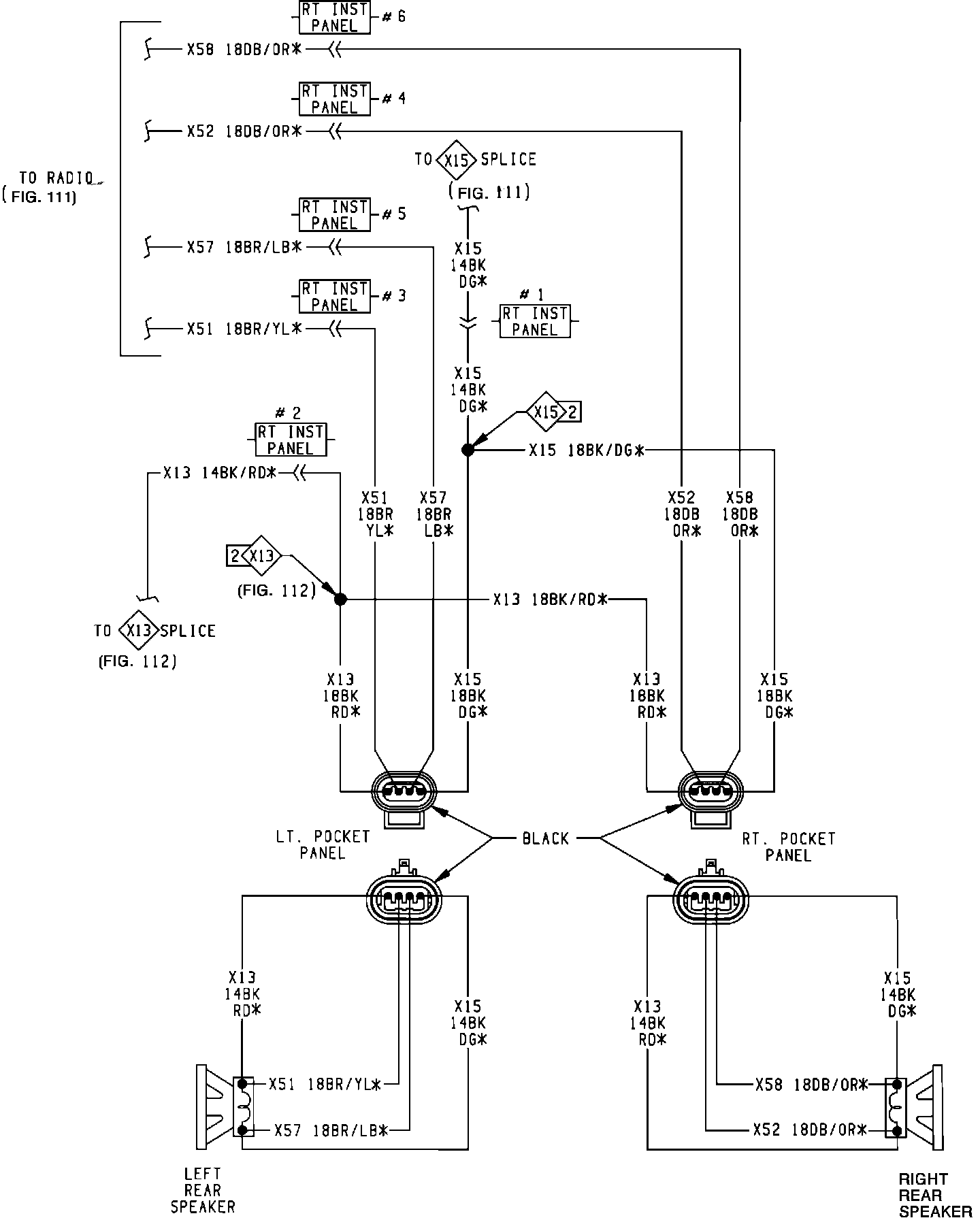

Rear Speakers (J-27):
