Part 1

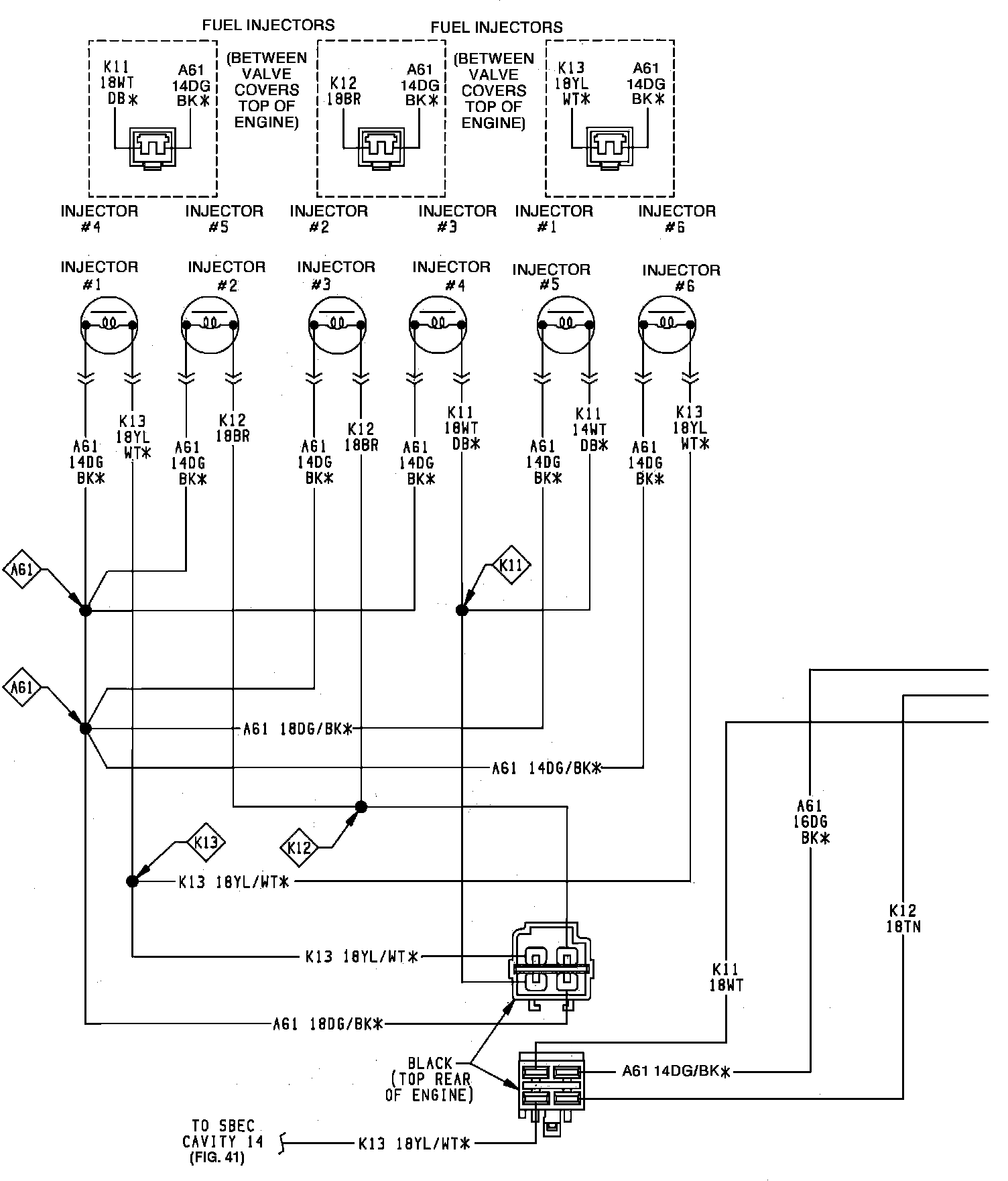

Electronic Fuel Injection Ignition System:

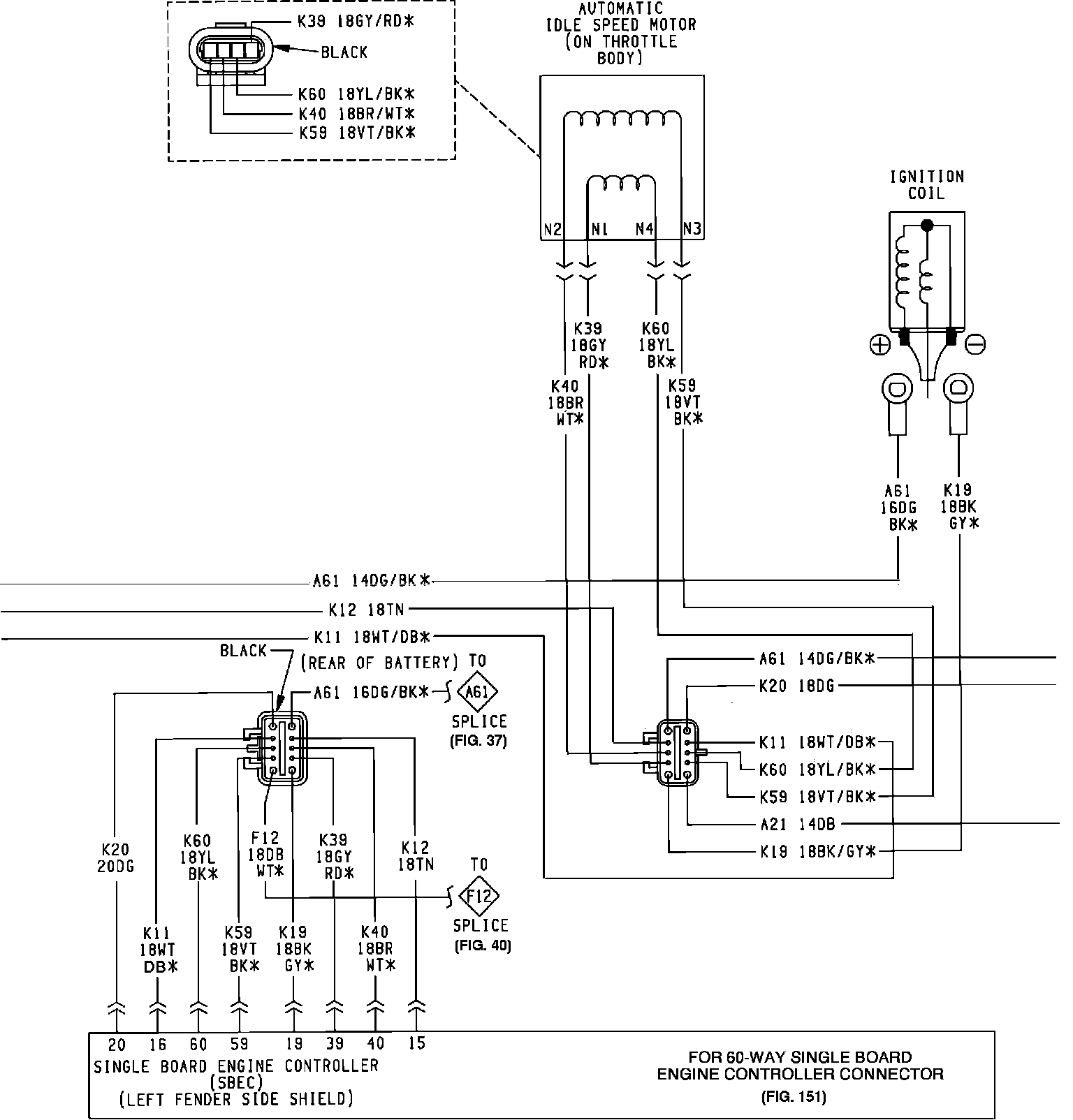

Electronic Fuel Injection Ignition System:

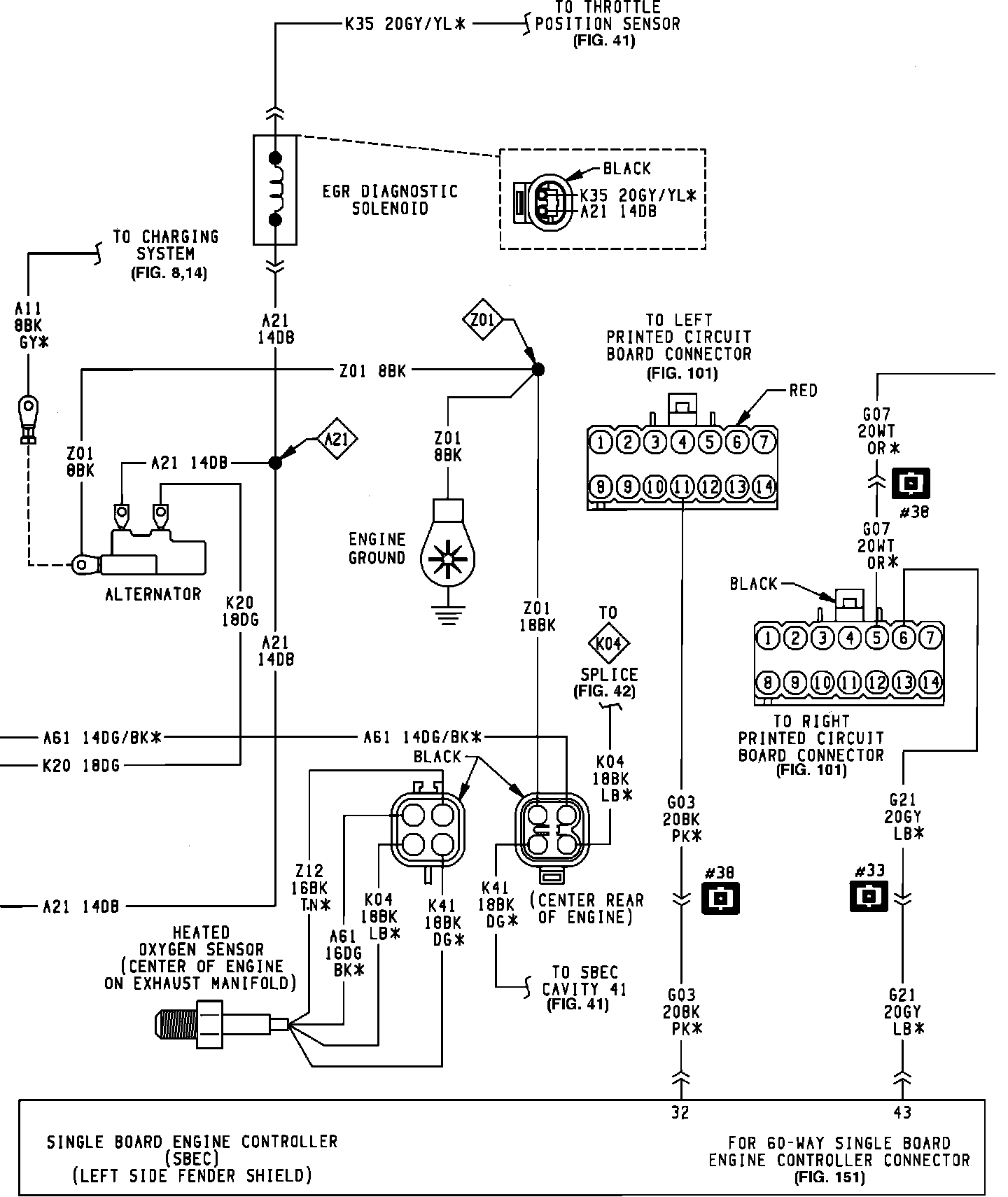

Electronic Fuel Injection Ignition System:
