Illuminated Entry System

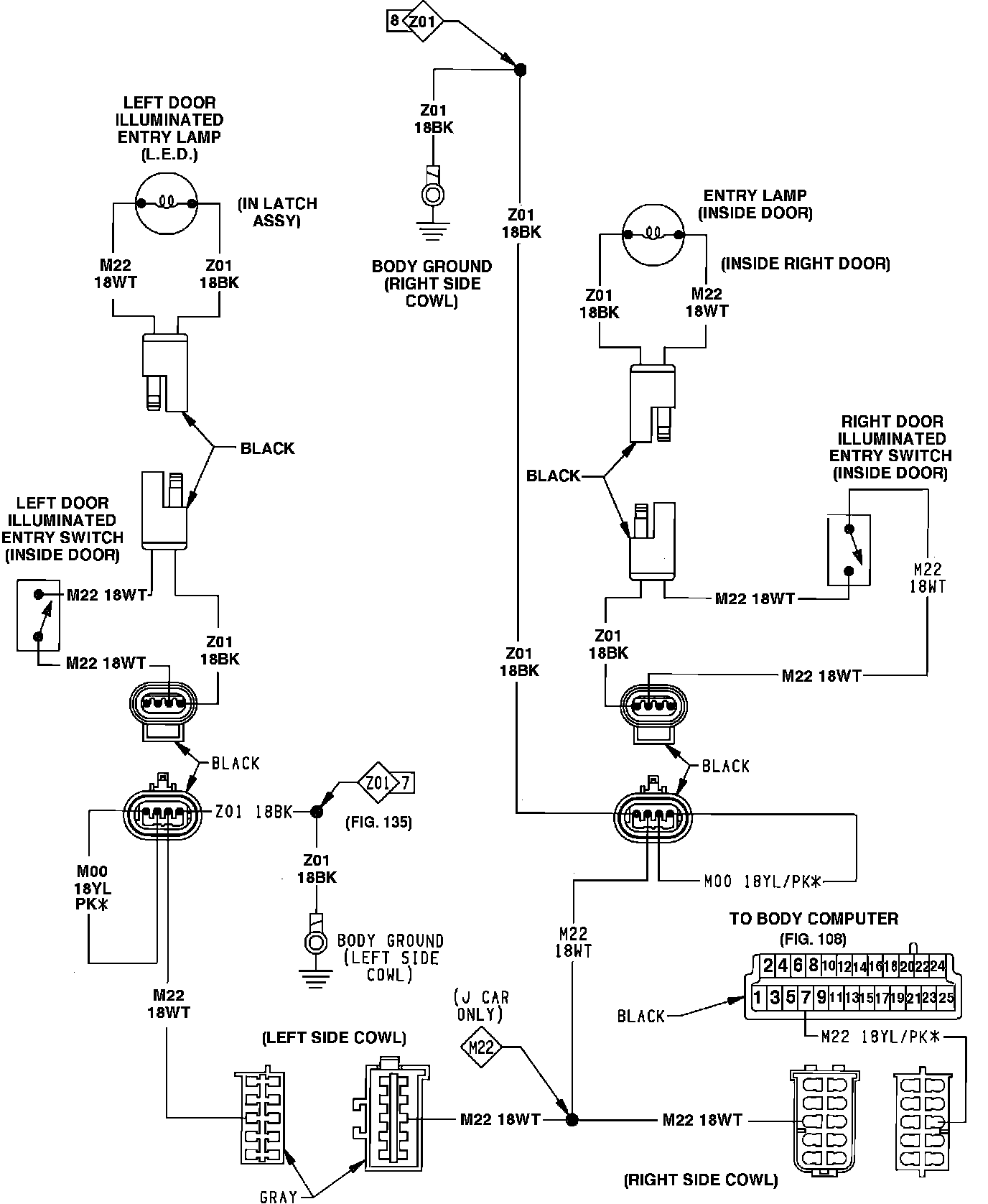

Door Courtesy Lamps & Illuminated Entry:

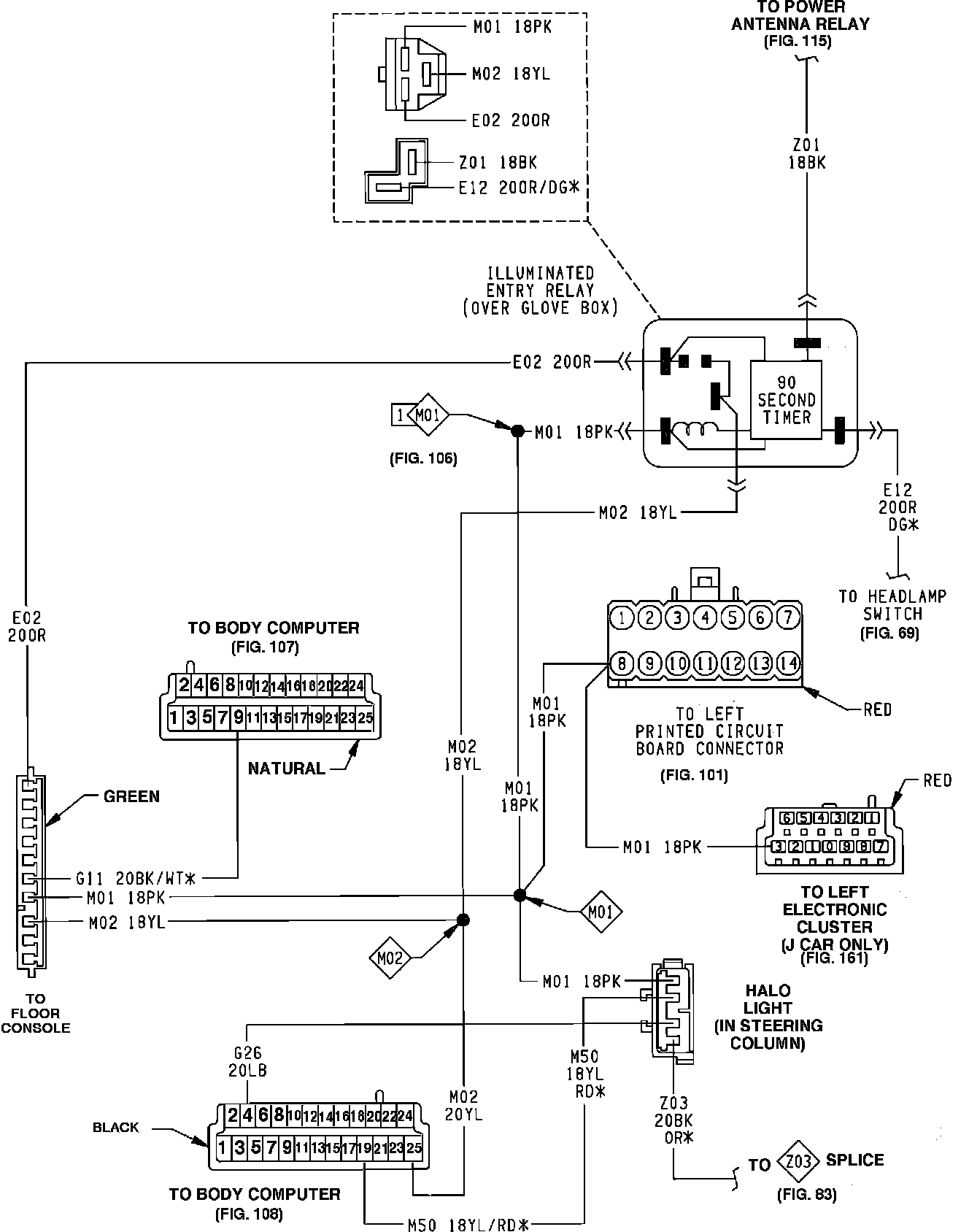

Door Courtesy Lamps & Illuminated Entry:
