Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> System Diagram >> Courtesy Lamps

Courtesy Lamps

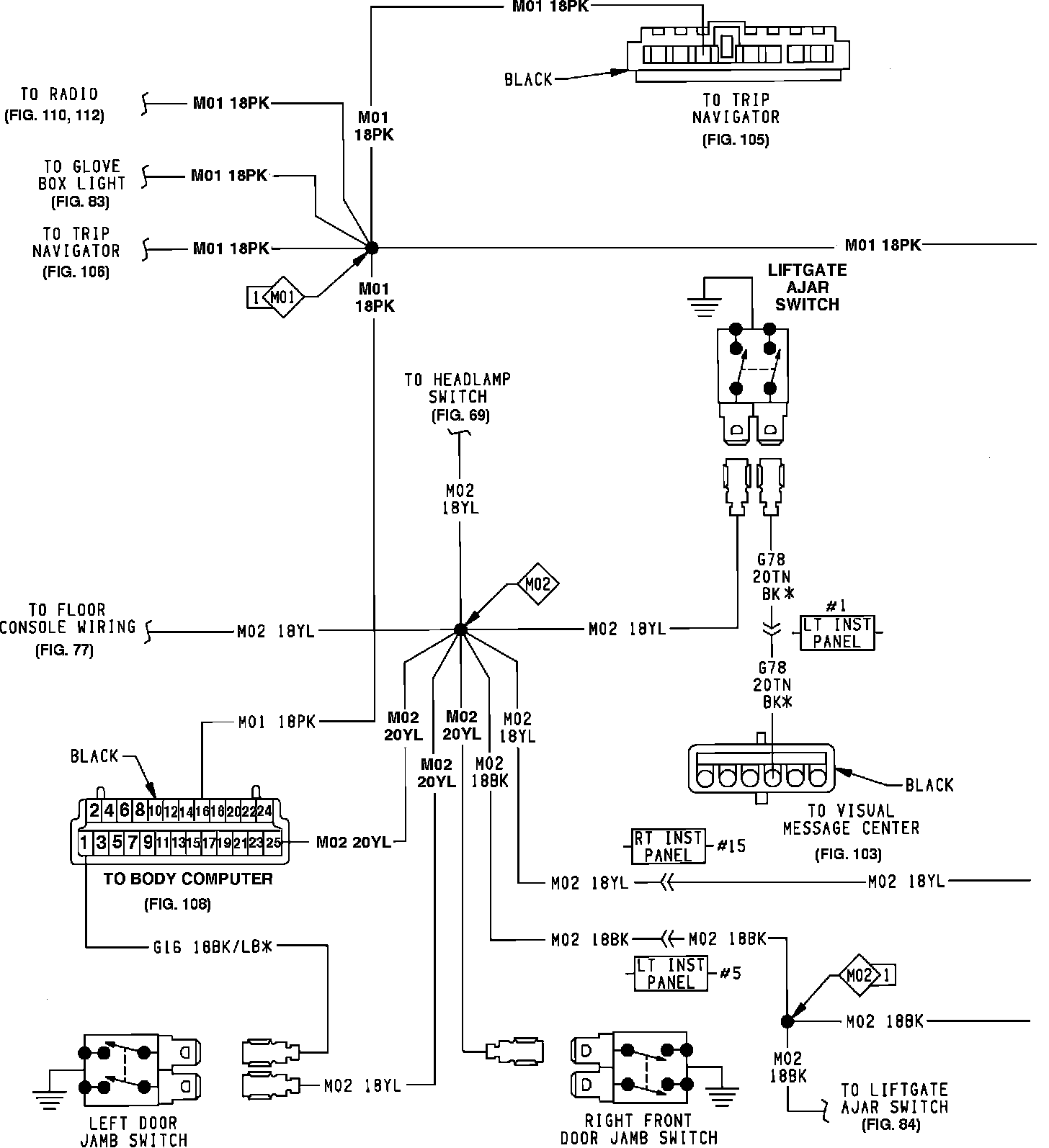

Dome Lamps:

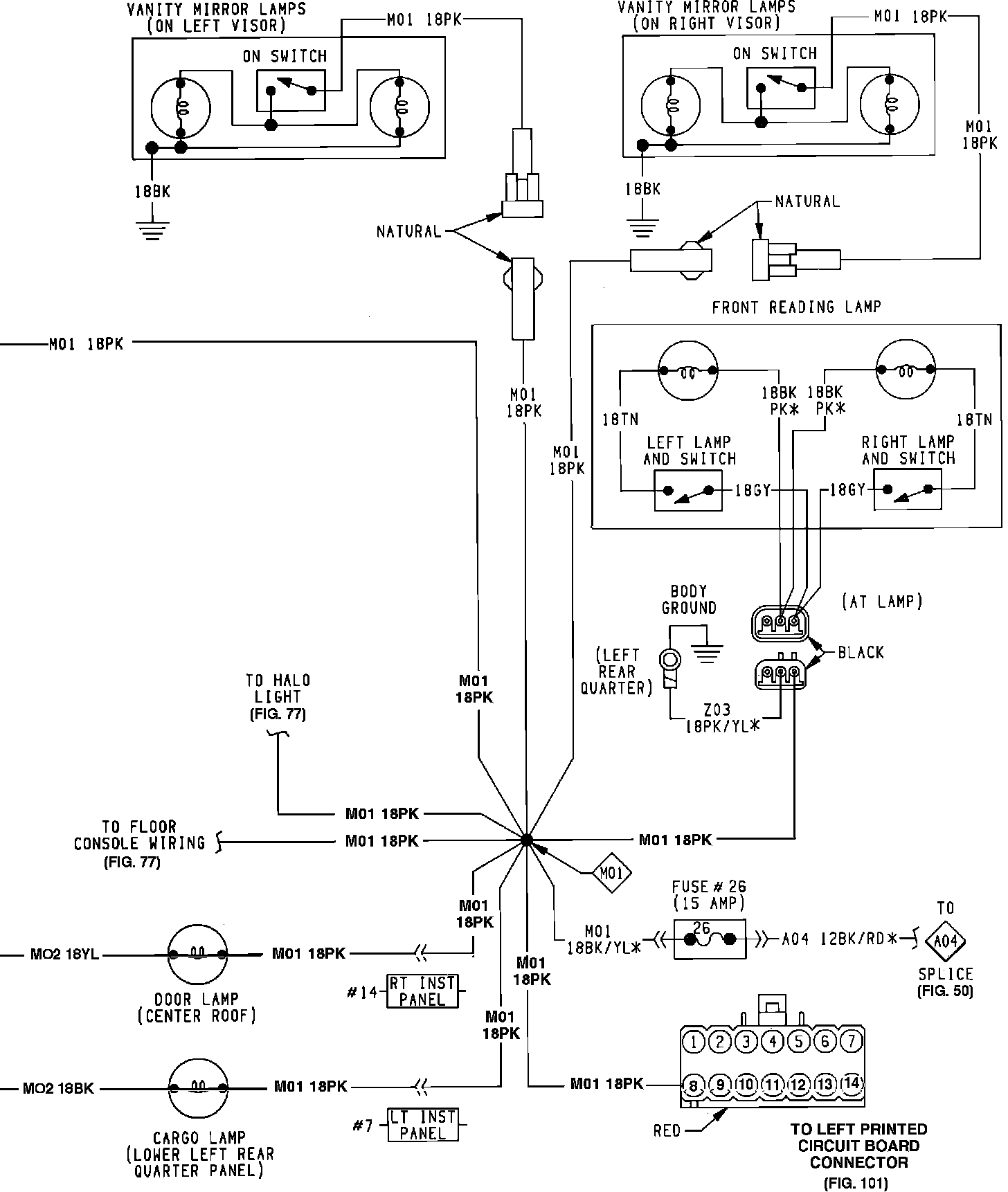

Dome, Reading & Courtesy Lamps:
