System Diagram

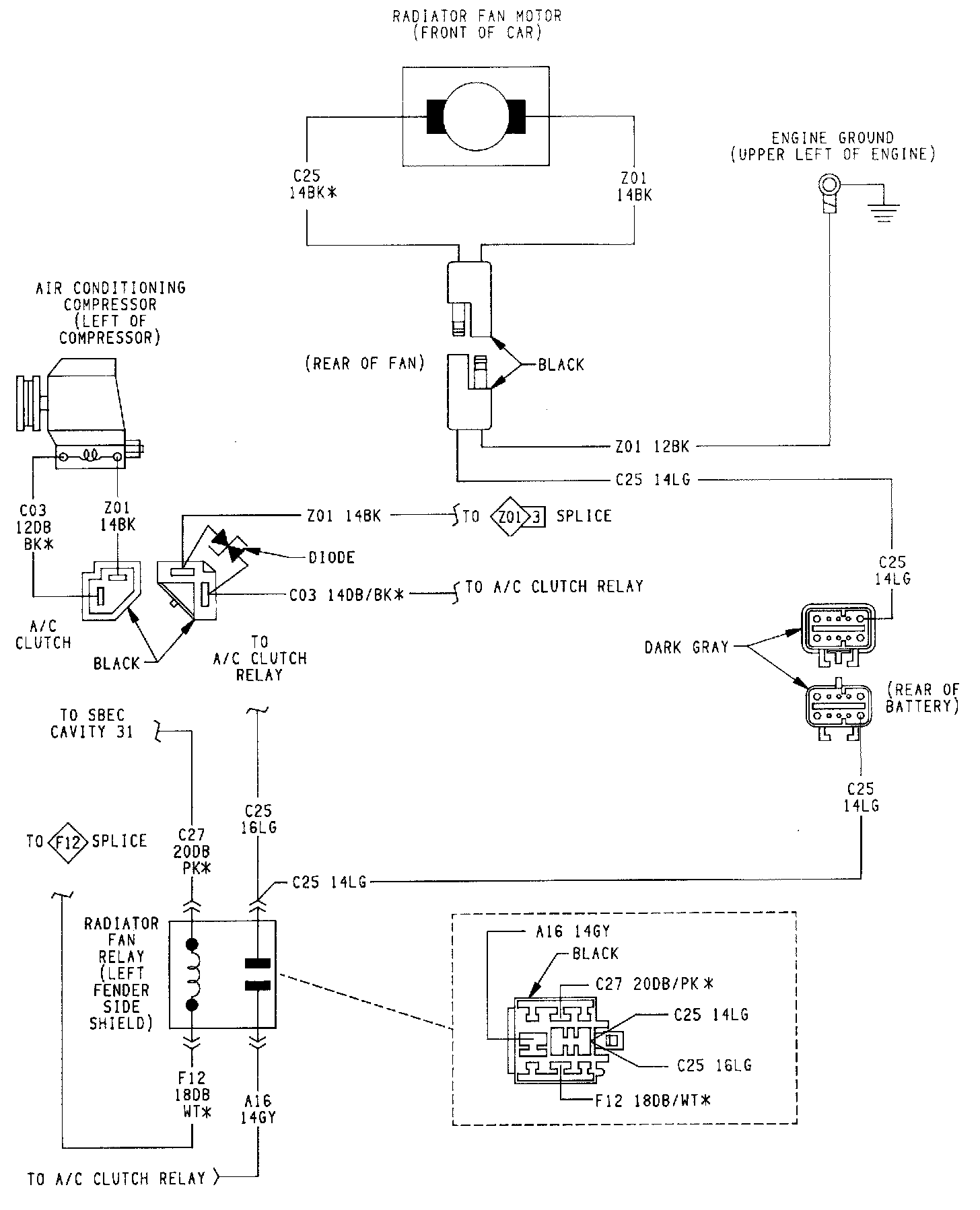

Radiator Fan System With Heater/Air Conditioning (3.0L):

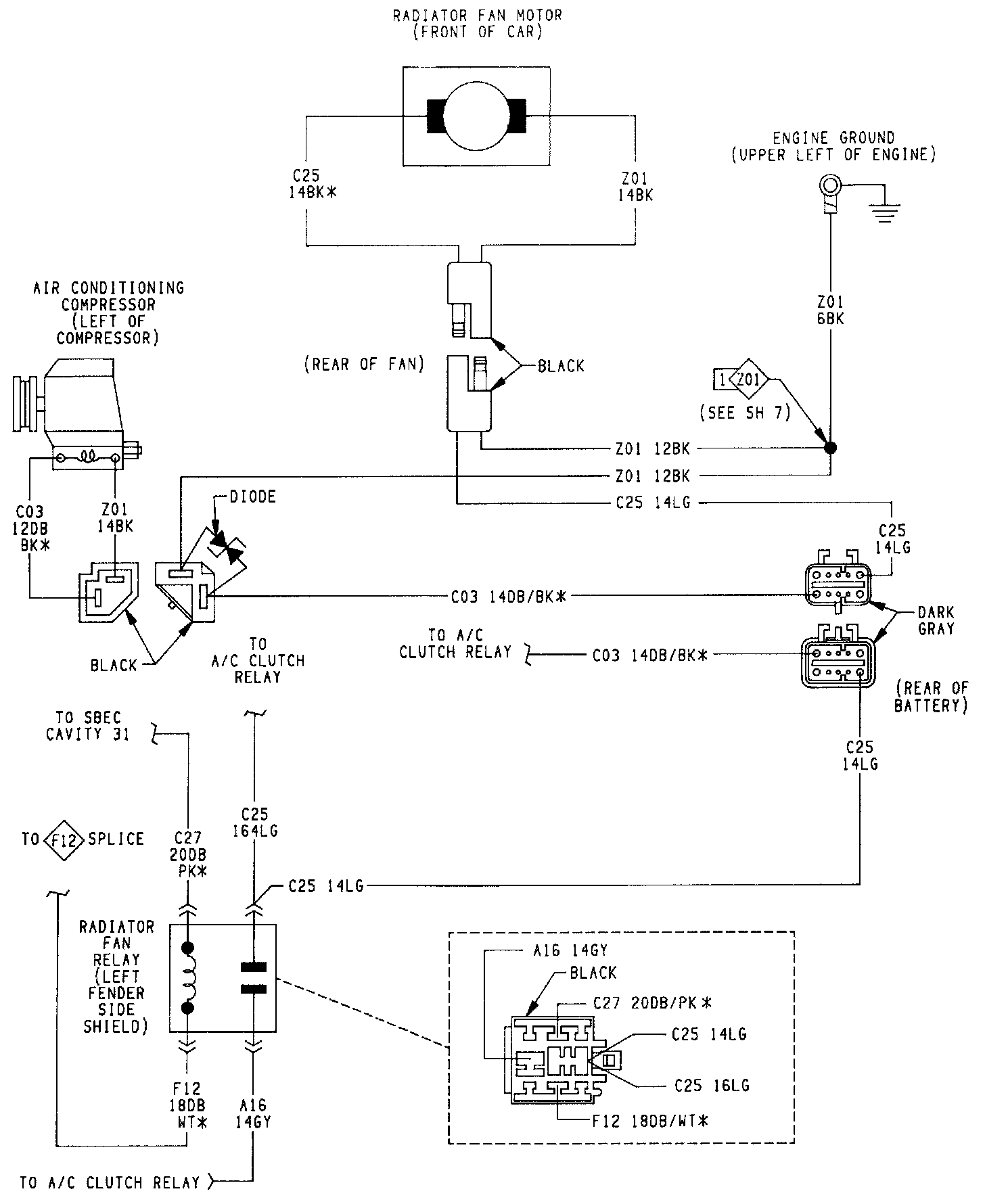

Radiator Fan System With Heater/Air Conditioning:
