Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Body Control Module >> With Base Computer

With Base Computer

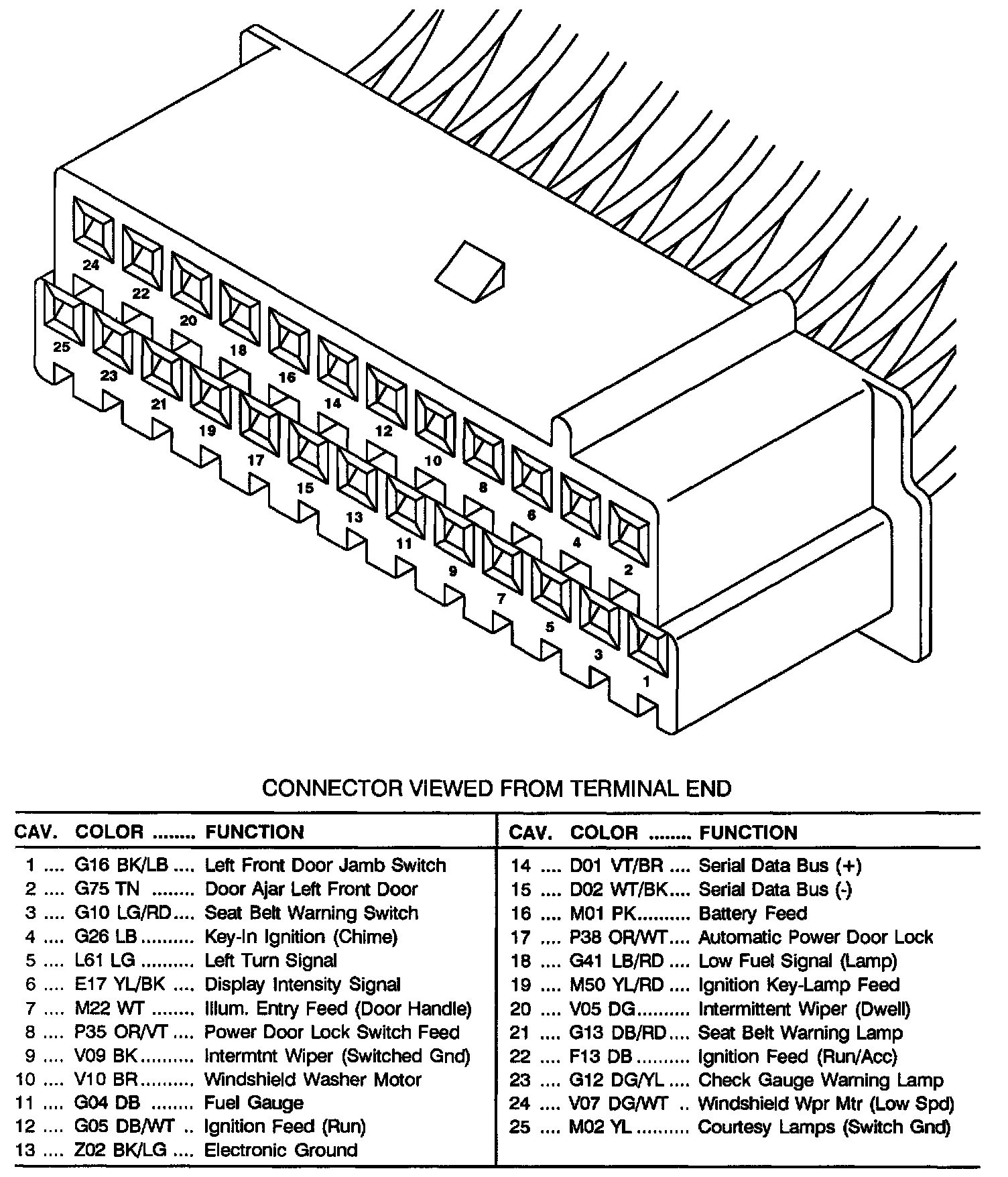

Black connector

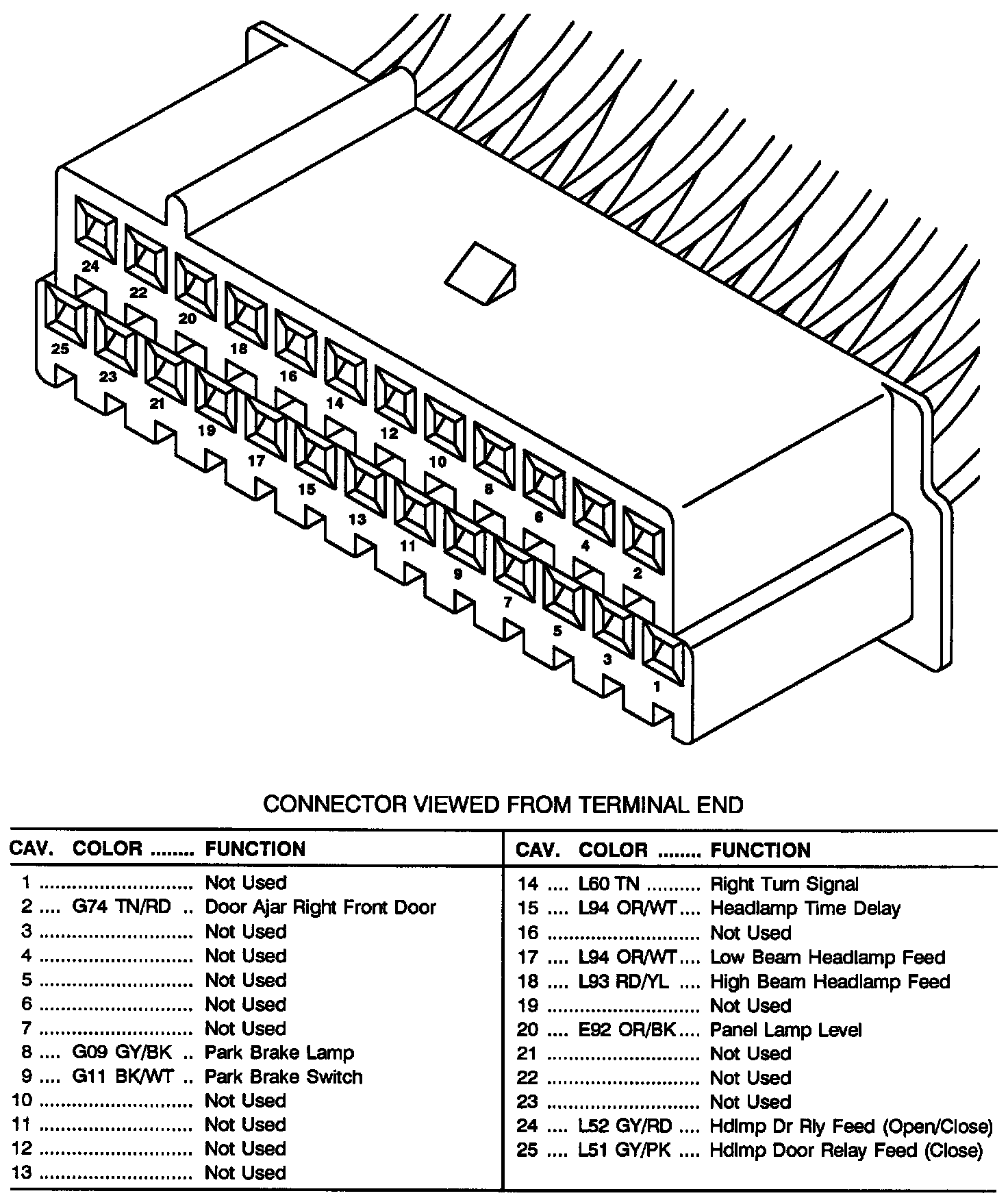

Natural connector



Connector viewed from terminal end
