Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> System Diagram >> Instrument Cluster >> Mechanical Cluster >> Left Printed Circuit Board

Left Printed Circuit Board

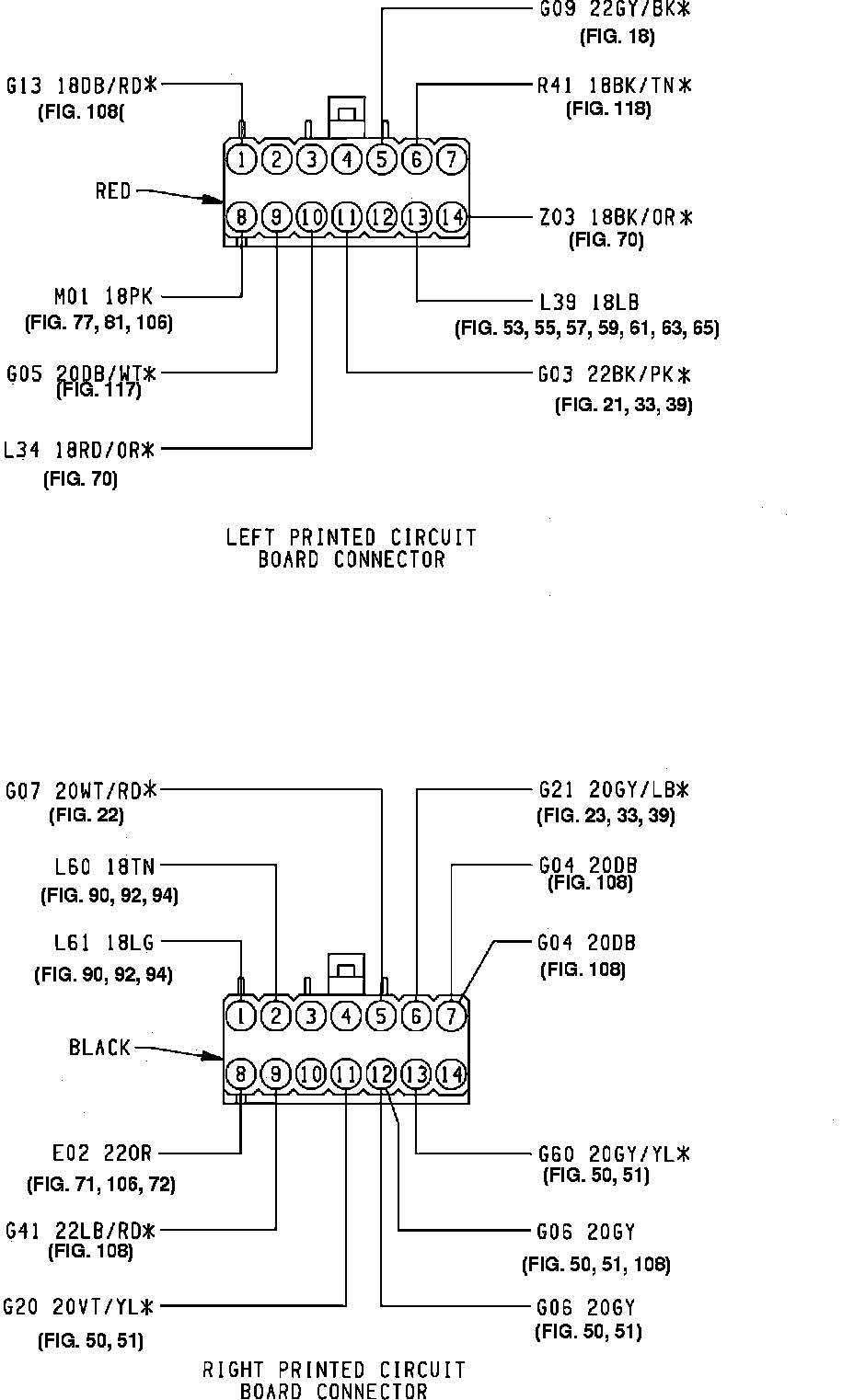

Printed Circuit Board Connectors Mechanical Cluster:

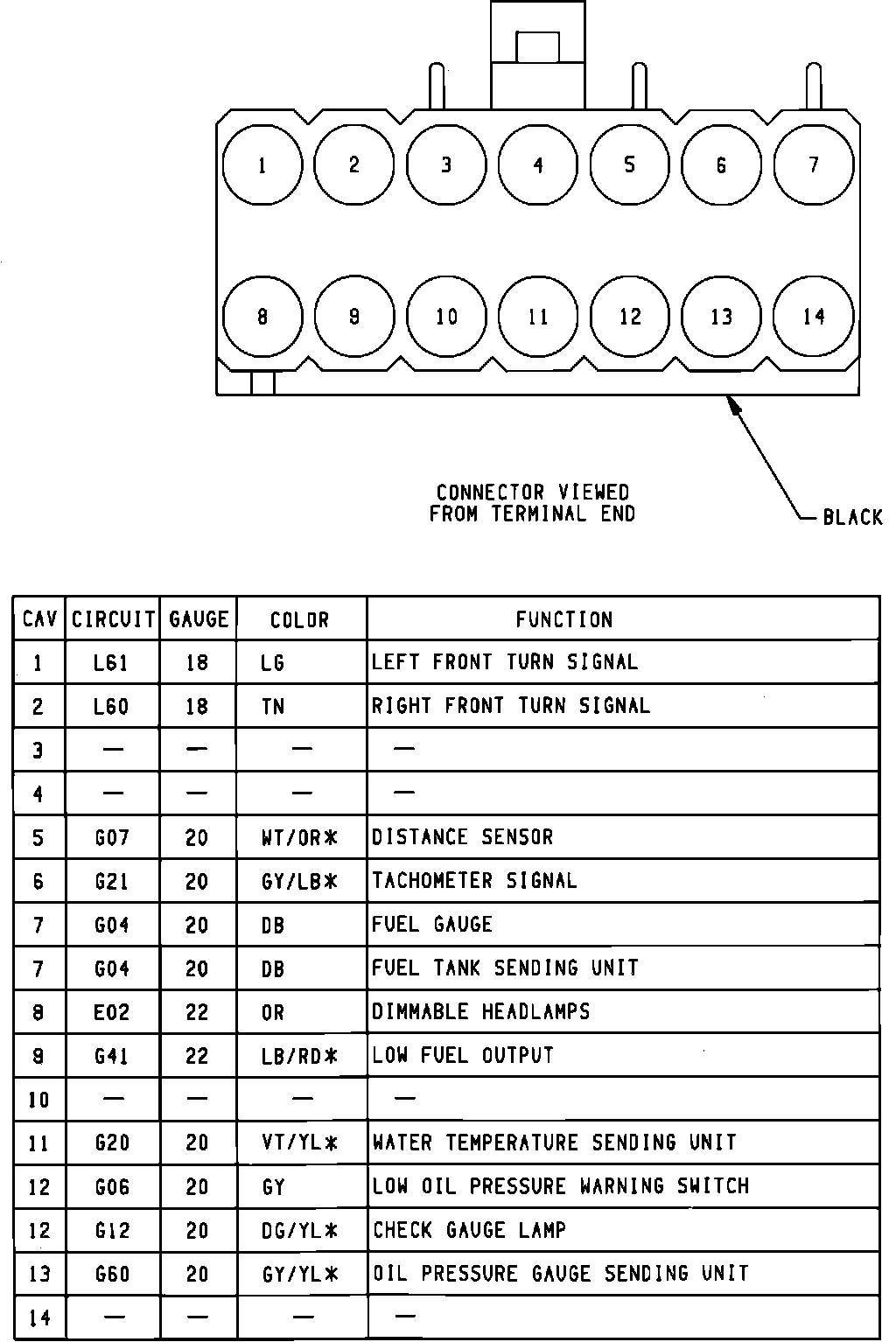

Mechanical Cluster Right Printed Circuit Board Connector:
