Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams

Electrical Diagrams

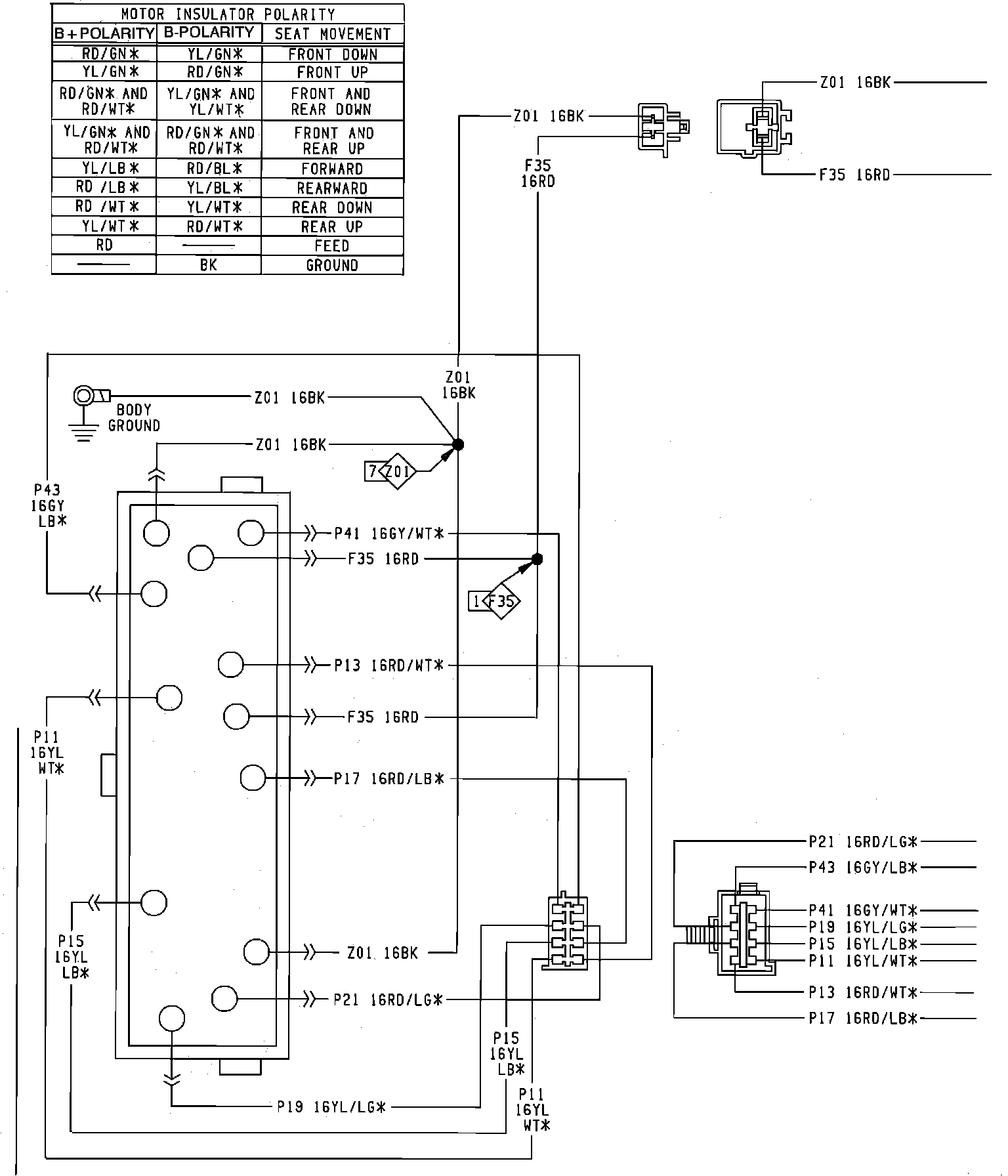

Left Bucket Power Seat:



Enthusiast Seat Jumper:
