Convertible Top Motor: Service and Repair

Hydraulic System:

1. Disconnect battery.
2. Disconnect pump wiring, including ground.
3. Disconnect hydraulic lines from pump.

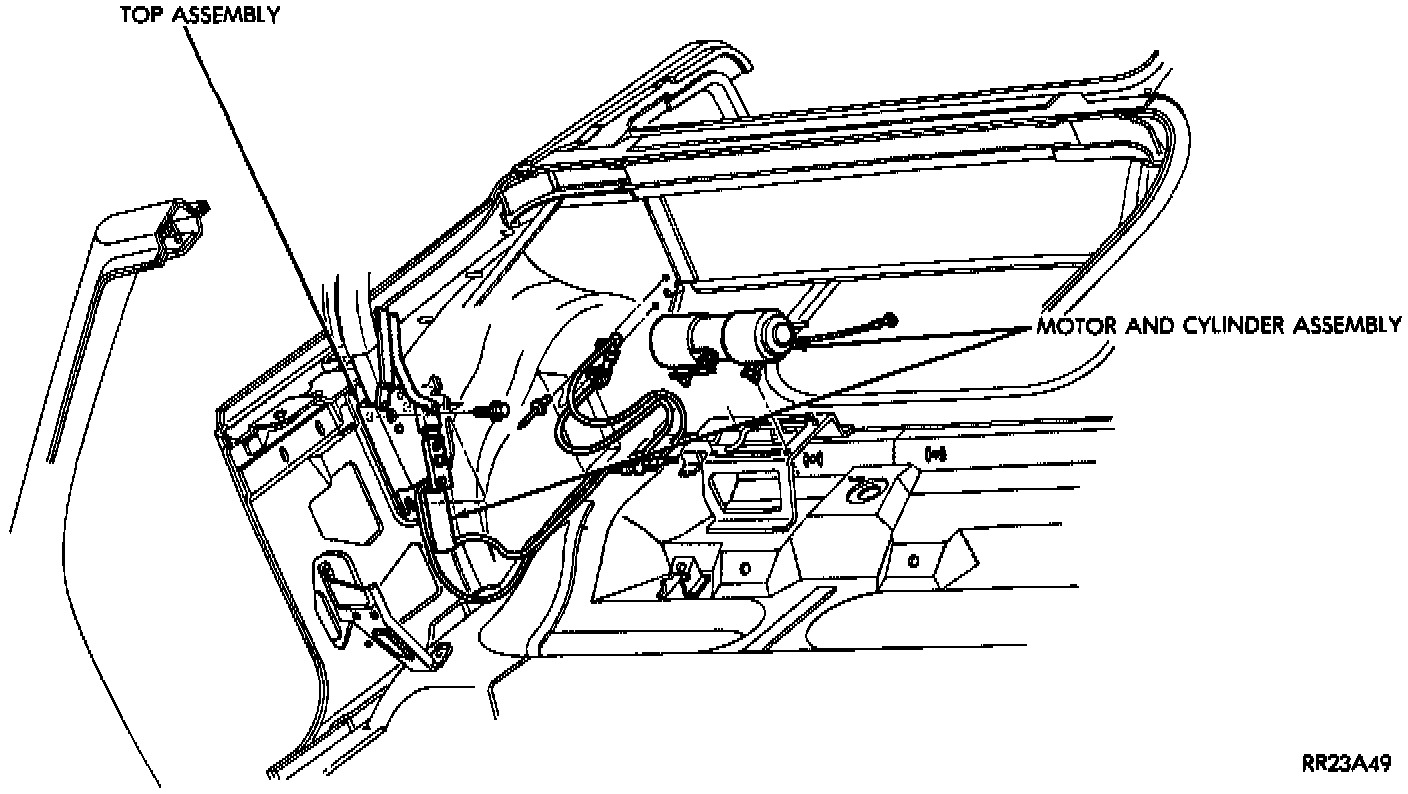

4. Remove motor pump assembly from vehicle. The rubber mounts are pressed and locked into the mounting bracket. Pull up motor assembly to remove.
5. Reverse above procedure for assembly.
