Control Link Adjustment

Control Link Adjustment:

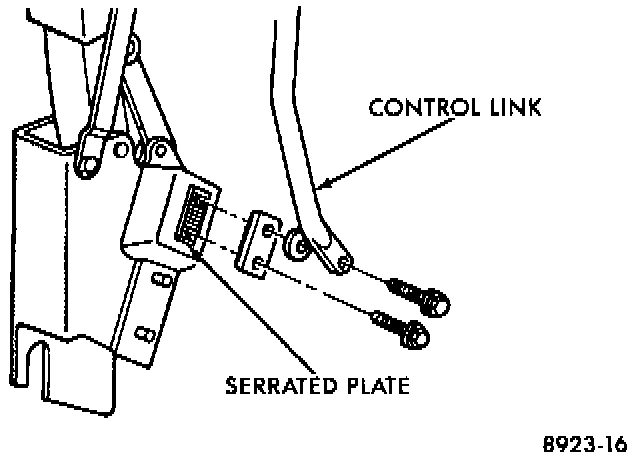

The control links incorporate serrated adjusting plates. With the top latched to header, loosen both bolts just enough to permit moving link up or down. Push upward in the area of the front to center rail joint (be careful not to pinch hands between these rails). The rails should be pushed up by hand as far as possible. With the control link adjusting bolts loosened, allow the control link to seek its proper position. Tighten bolts while rail assembly is held in position described above.
