Trunk / Liftgate Latch Release Cable: Service and Repair

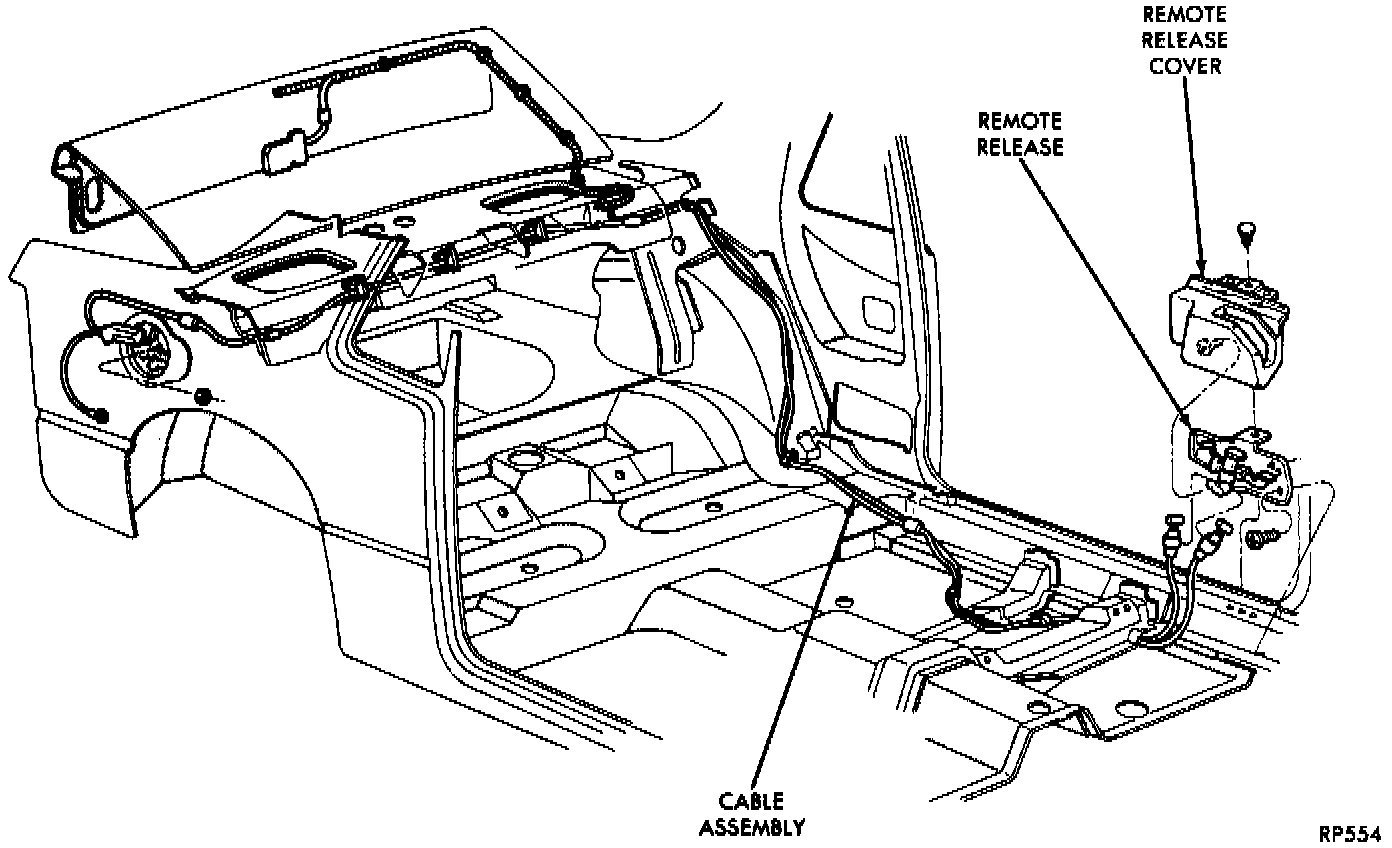

Cable Release Handle And Cable:

REMOVAL
1. Move driver's seat forward to expose rear of seat adjuster.
2. Remove nuts used to fasten the adjuster to the floor pan.
3. Move driver's seat to the rear.
4. Remove bolts used to fasten the adjuster to the floor pan.
5. Remove the driver's seat.
6. Open the liftgate and remove shelf trim panel.
7. Remove the carpet from the rear seat back by pulling it free from the velcro retainers.
8. Remove two screws from each seat back hinge.
9. Remove the seat back.
10. Remove the shoulder bolts used to fasten the seat back hinge arm to the inner quarter panels.
11. Remove the hinge arm assemblies.
12. Remove two screws used to retain the seat cushion.
13. Remove the rear seat cushion.
14. Remove two screws, a "Christmas Tree" fastener, and the remote release handle cover.
15. Open the fuel filler door.
16. Remove the remote handle retaining screws and lift the remote handle assembly upward.
17. Remove the fuel filler door cable from the remote handle assembly.
18. Remove the rear door roof rail garnish mouldings.
19. Remove two pushpins, the cargo lamp bezel, and two plastic screw hole plugs from the liftgate opening trim panel.
20. Remove three screws and then the liftgate opening trim panel.
21. Remove the rear door sill scuff plates.
22. Remove two plastic screw hole plugs, all quarter trim panel screws, and then remove the quarter trim panel.
23. Repeat step 22 on the other side of the vehicle.
24. Remove two screws used to fasten the rear window washer bottle to the inner quarter panel.
25. Disconnect the wiring harness from the rear window washer motor.
26. Disconnect the filler neck from the rear window washer bottle.
27. Remove the washer bottle.
28. Remove the fuel filler door remote release cable nut from inside of the fuel filler door opening.
29. Cut both ends from the fuel filler door cable using a pair of side cutters.

INSTALLATION
1. The original cables used to operate both fuel filler door and hatchback are clamped to each other and inseparable. For fear of damaging a cable still in good working condition, do not attempt to separate and remove any cable. Place the replacement cable over the original.
2. Connect the cable to the remote handle assembly.
3. install the remote handle assembly.
4. Install the other end of the cable through the hole provided on the inside of the fuel filler door opening.
5. Install and torque the nut to 7 Nm (60 In. Lbs.).
6. Close the fuel filler door and try the system for proper operation.
7. Starting at the rear of the vehicle, tape the new cable to the old one using duct tape.
8. Place the rear window washer bottle into the opening provided.
9. Connect the filler neck to the washer bottle.
10. Connect the wiring harness to the washer motor.
11. Install the two window washer bottle retaining screws.
12. Install one of the quarter trim panels, all quarter trim panel screws, and the two plastic screw hole plugs.
13. Repeat step 12 on other side of vehicle.
14. Install both rear door scuff plates.
15. Install the liftgate opening trim panel, and then the three screws used to fasten it to the sheet metal.
16. Install two plastic screw hole plugs, the cargo lamp bezel, and the two pushpins on the liftgate trim panel.
17. Install both rear door roof rail garnish mouldings.
18. Install the fuel filler door remote control release handle cover.
19. Fasten the remote handle cover with one "Christmas Tree" fastener, and two screws.
20. Install the rear seat cushion.
21. Install the two rear seat cushion retaining screws.
22. Install the hinge arm assemblies.
23. Install the shoulder bolts used to fasten the seat back hinge arm to the inner quarter panels.
24. Install the seat hack.
25. Install the two screws into each seat back hinge.
26. Install the rear seat back carpet.
27. Install the drivers seat.
28. Try the system for proper operation.
