Front Door Panel: Service and Repair

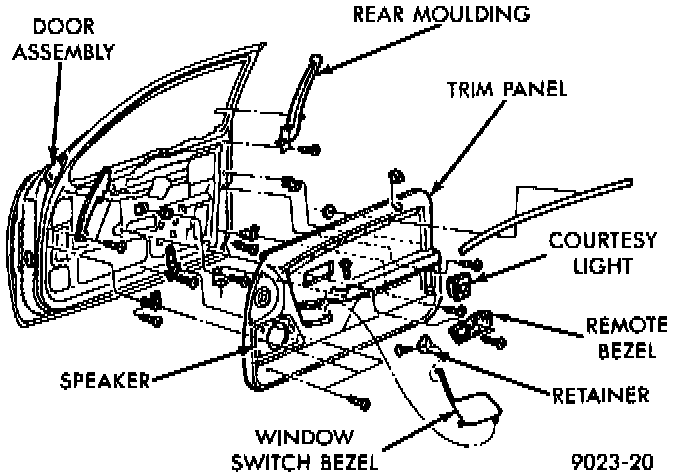

Door Trim Panel:

1. Carefully pry out courtesy light lens, and twist bulb out.
2. Remove screw from courtesy light cavity.
3. Pry speaker bezel out, using a trim stick or thin tool.
4. Remove door trim panel screw from behind speaker grille.
5. Pry remote control bezel out, and slide rearward to remove, and remove screw.
6. Pry window switch bezel up and out to remove, remove screw.
7. Remove three screws along bottom in carpet of trim panel.
8. Pull out and up to remove door trim panel.
9. For installation reverse above procedure.
