Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Information Bus
>>

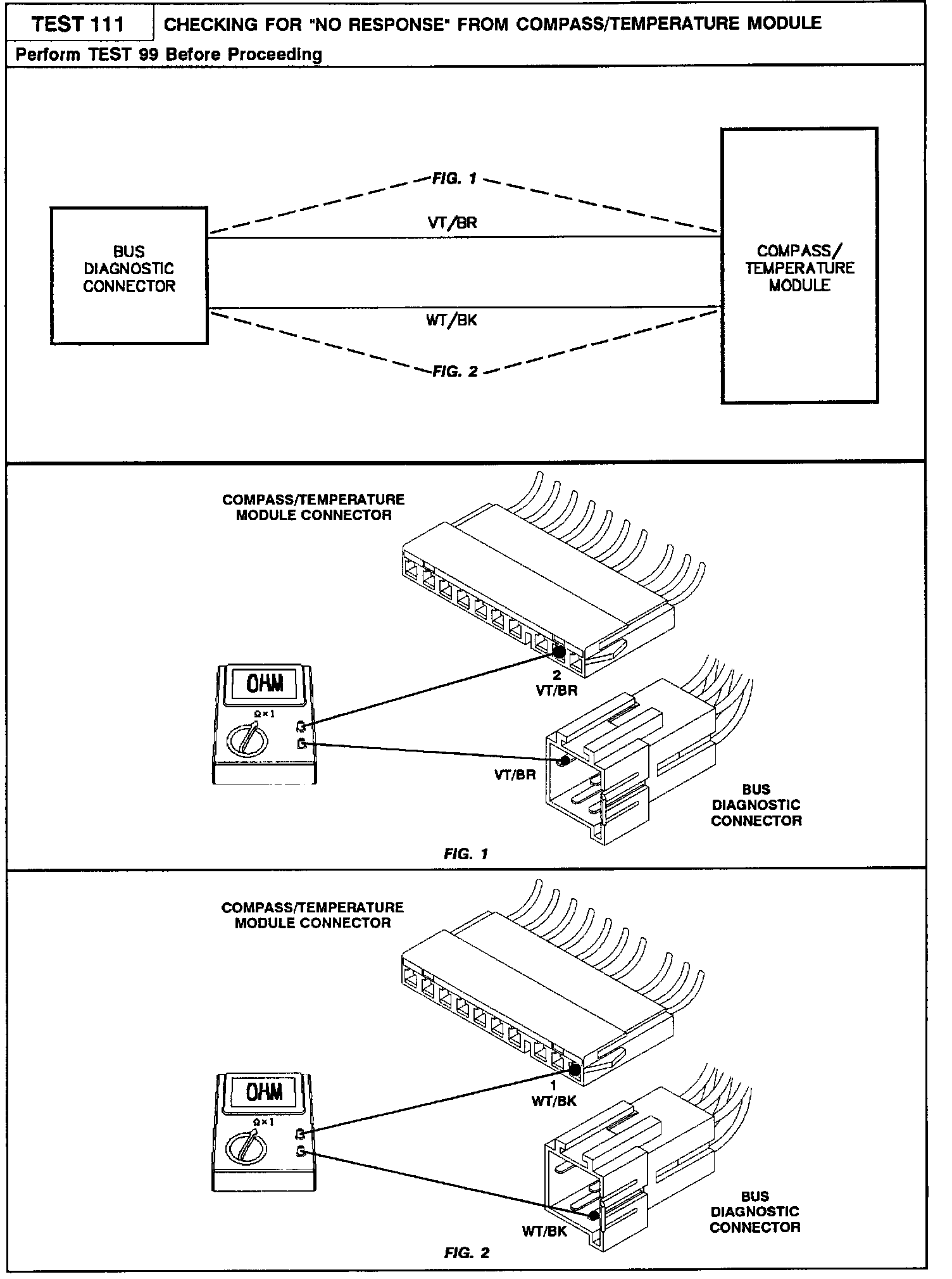

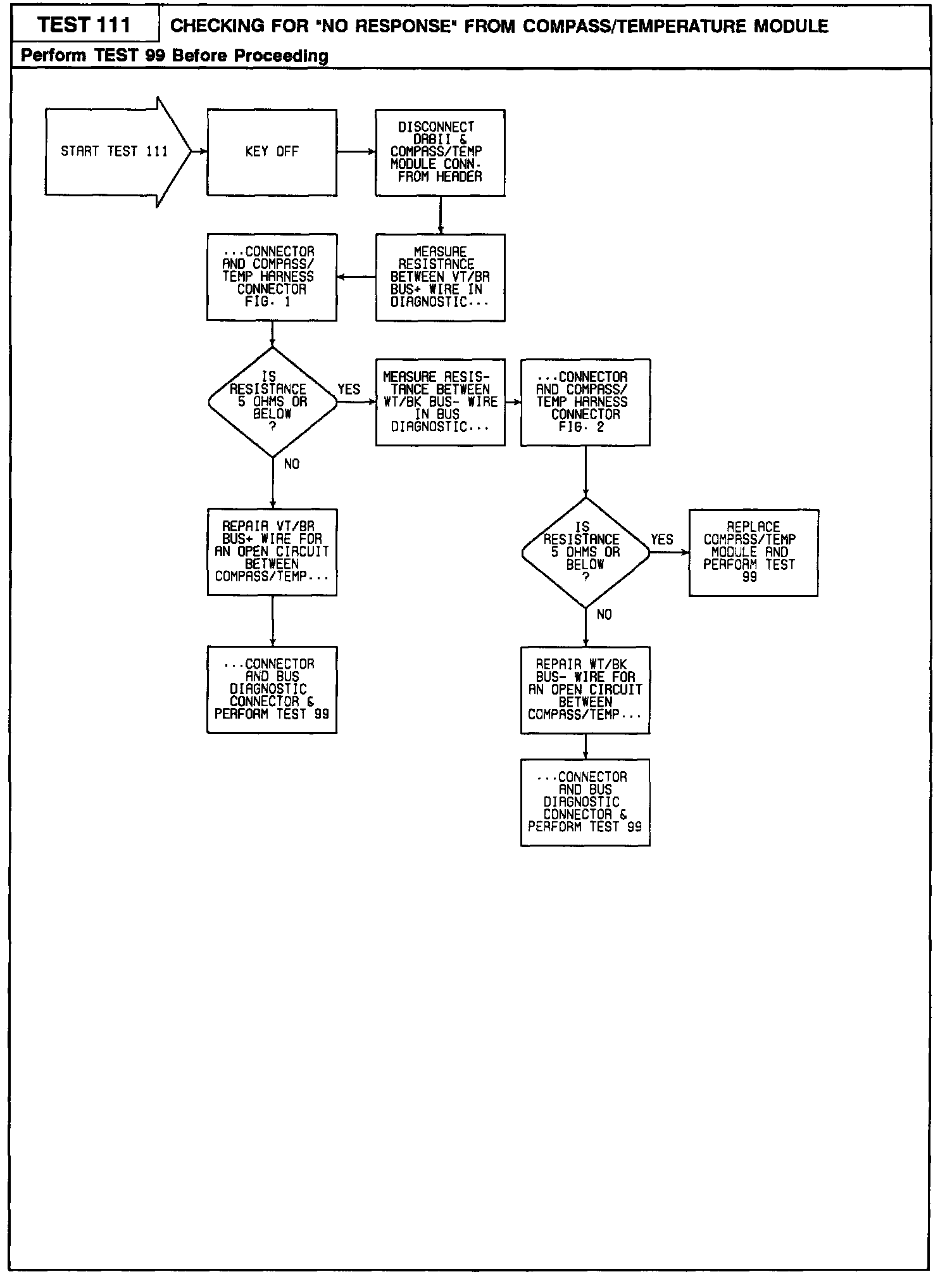

111 Checking For No Response From Compass/Temp Module
111 Checking For No Response From Compass/Temp Module
