Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Headlamp System
>>

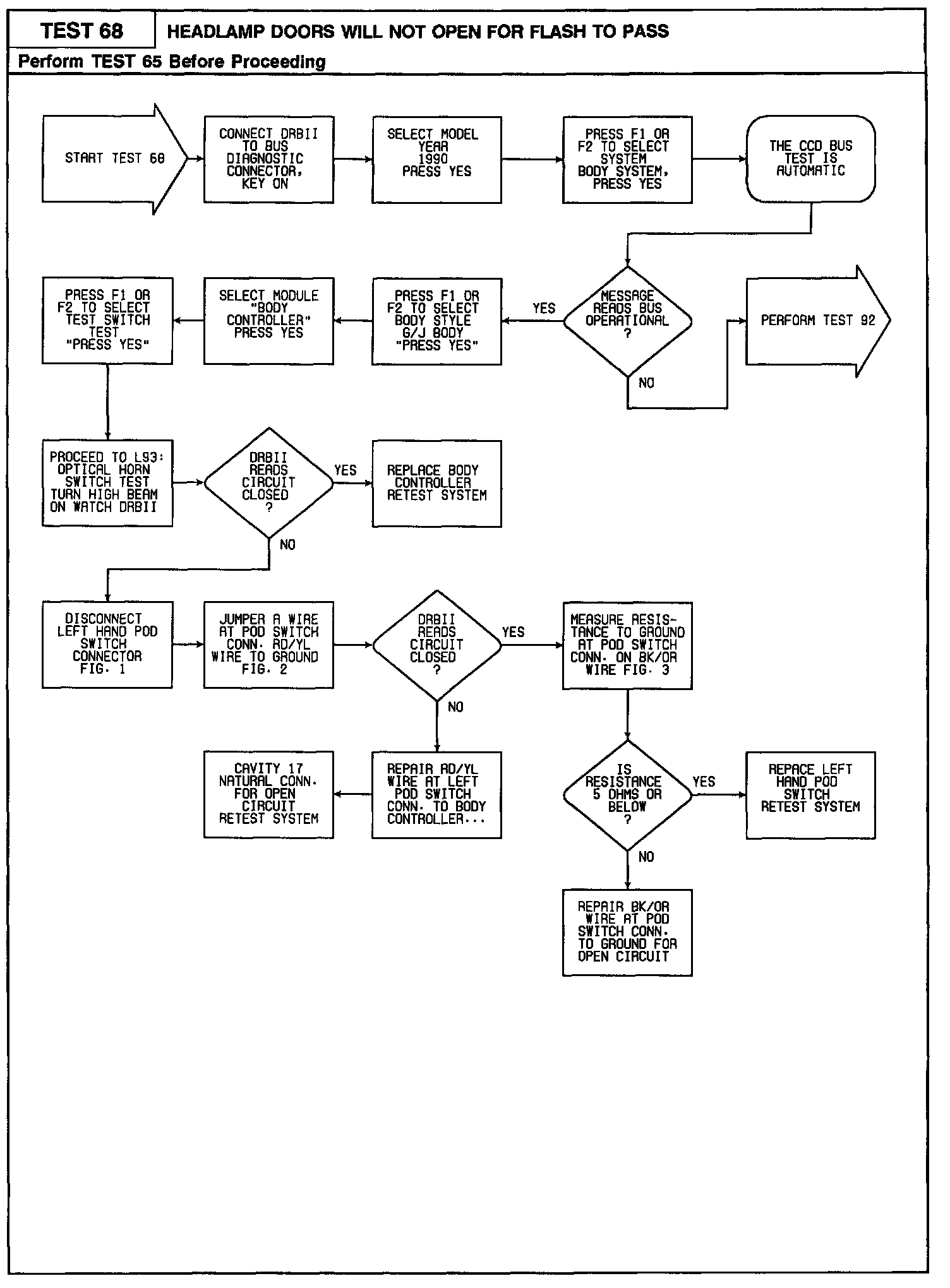

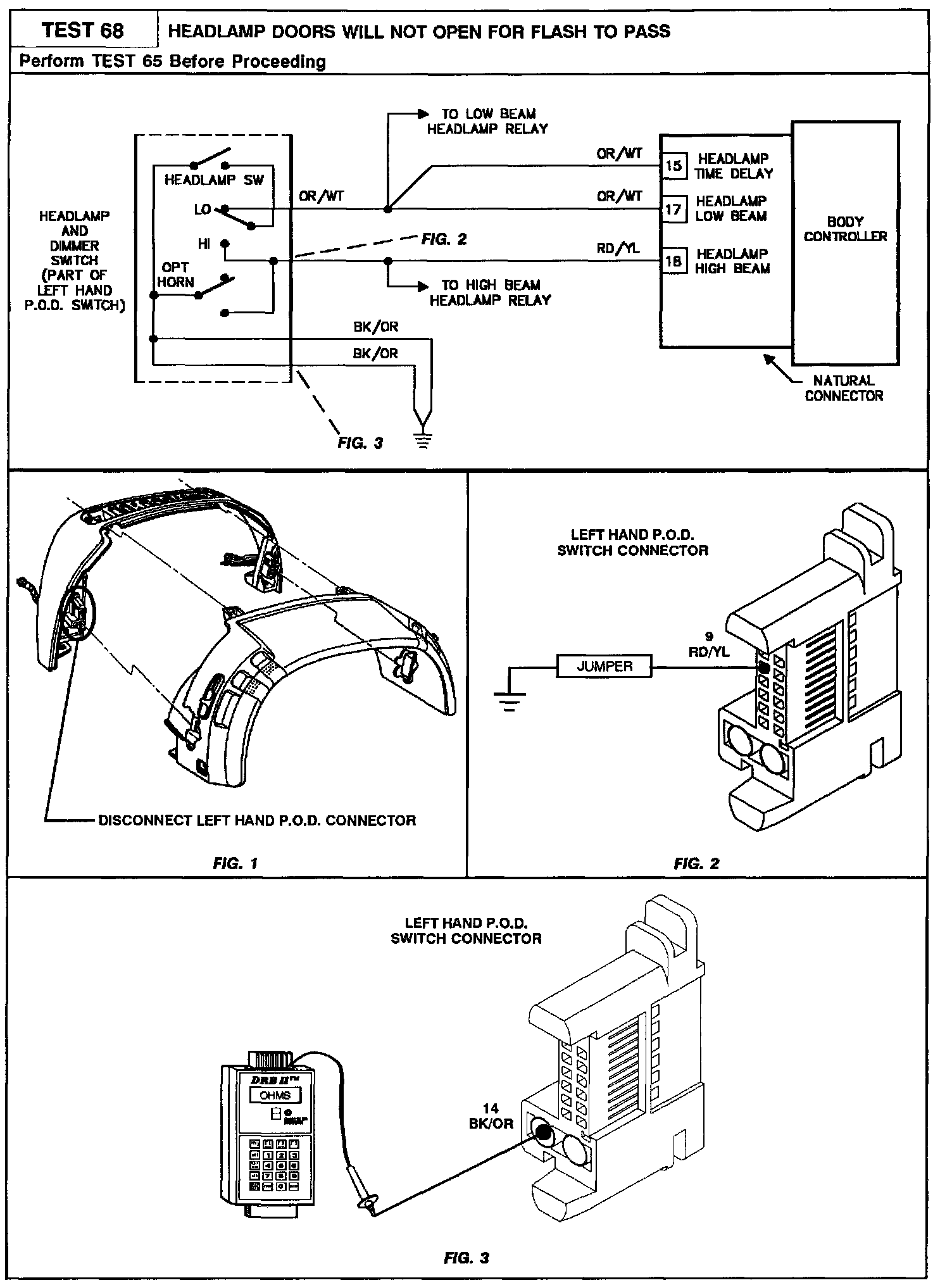

68 Headlamp Doors Will Not Open For Flash to Pass
68 Headlamp Doors Will Not Open For Flash to Pass
