Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Electronic Instument Cluster >> 43 Check Engine Lamp Is Not Operating Correctly

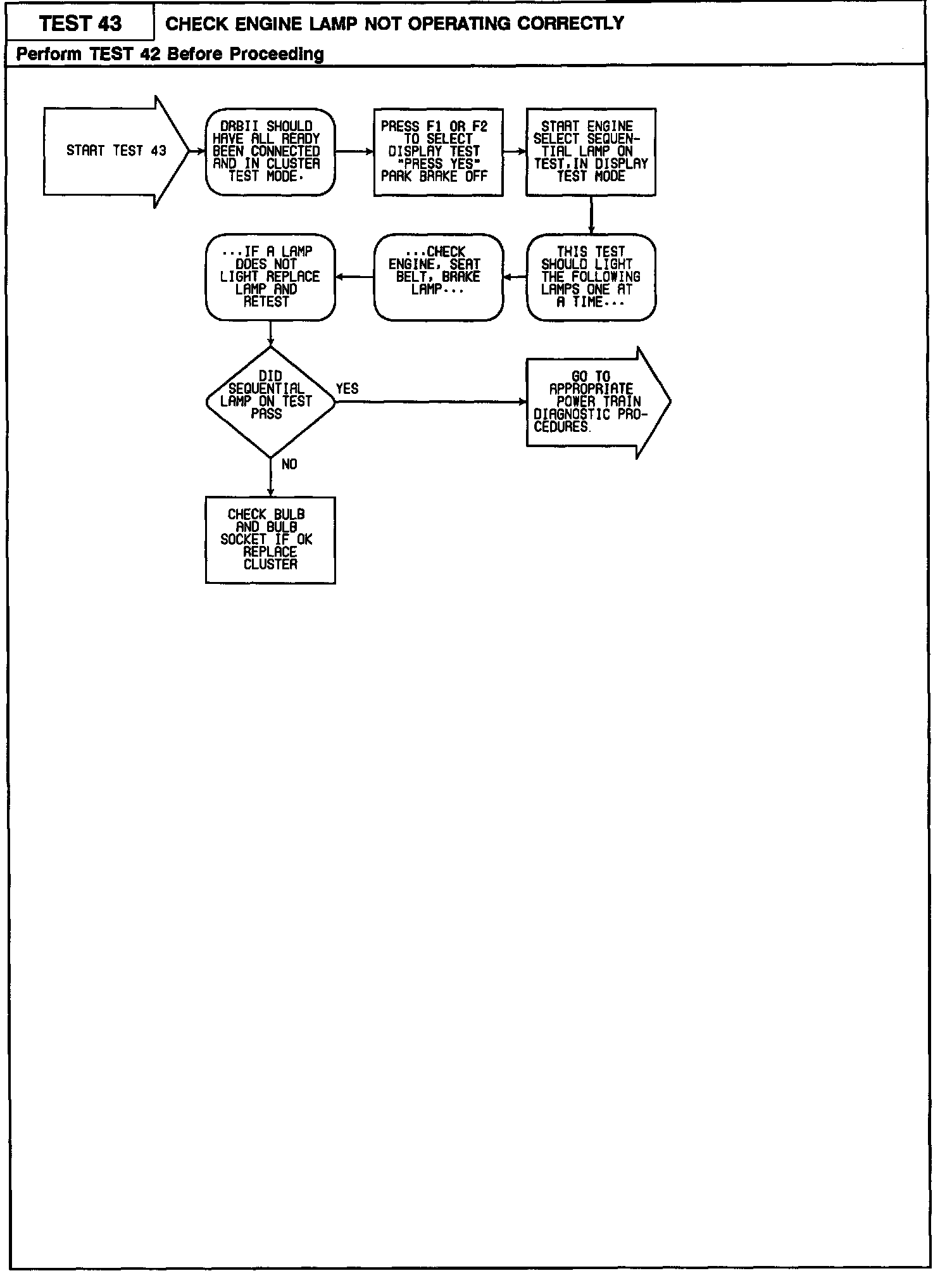

43 Check Engine Lamp Is Not Operating Correctly
