Test 9 - Right Rear Wheel Speed Sensor Continuity Fault

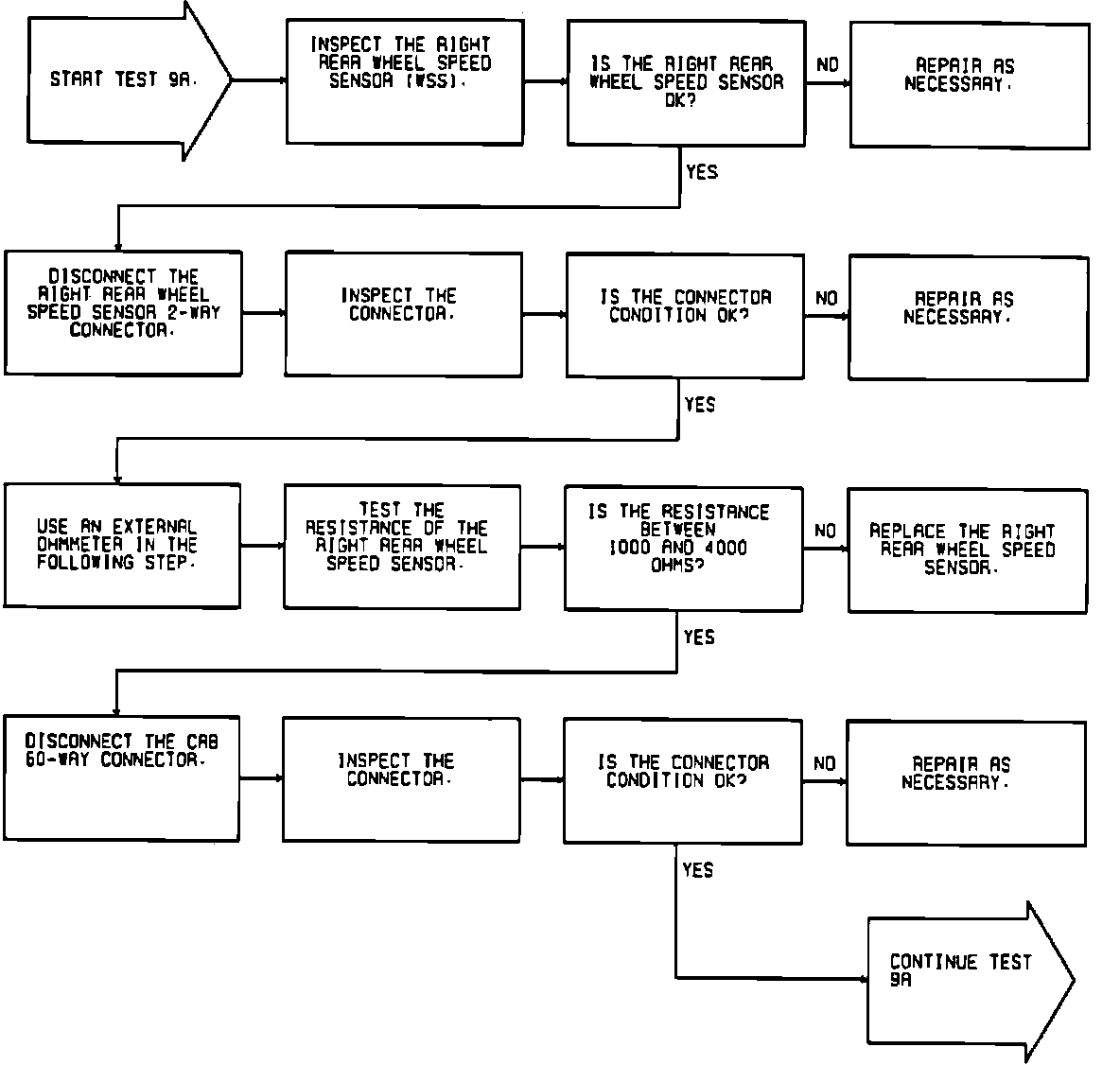

Fig. 26 Test 9A--Right Rear Wheel Speed Sensor Continuity Fault (Part 1 Of 2):

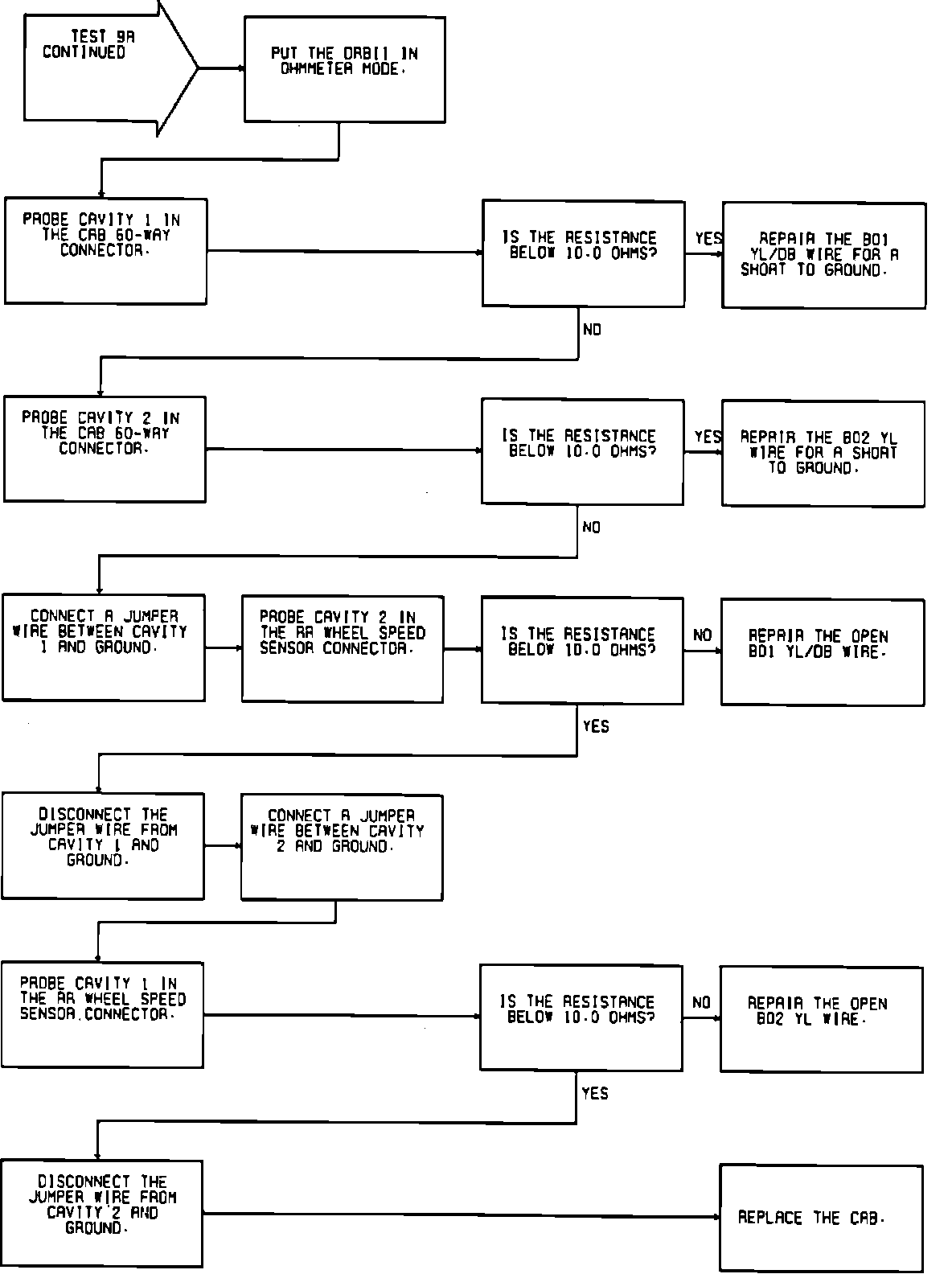

Fig. 26 Test 9A--Right Rear Wheel Speed Sensor Continuity Fault (Part 2 Of 2):
