Test 6D

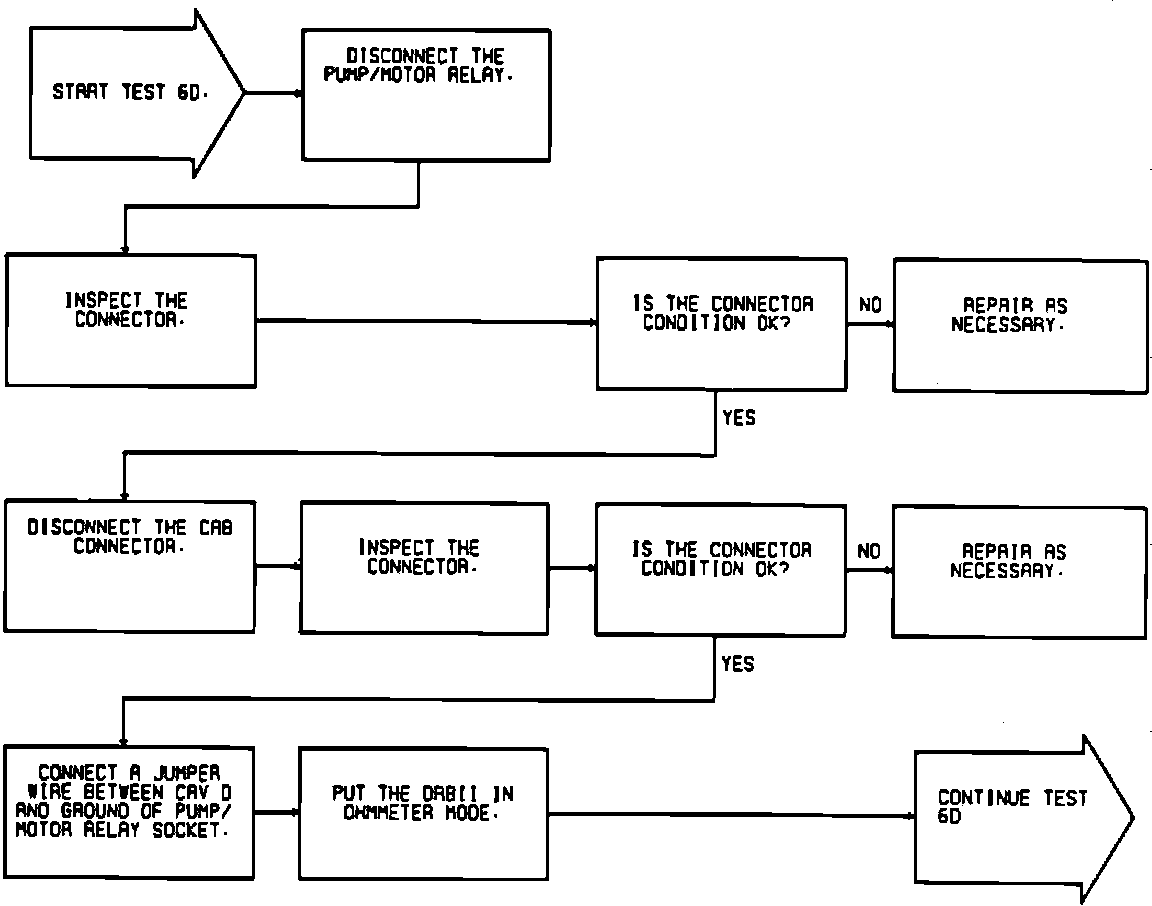

Fig. 20 Test 6D--Pump/Motor Fault (Part 1 Of 2):

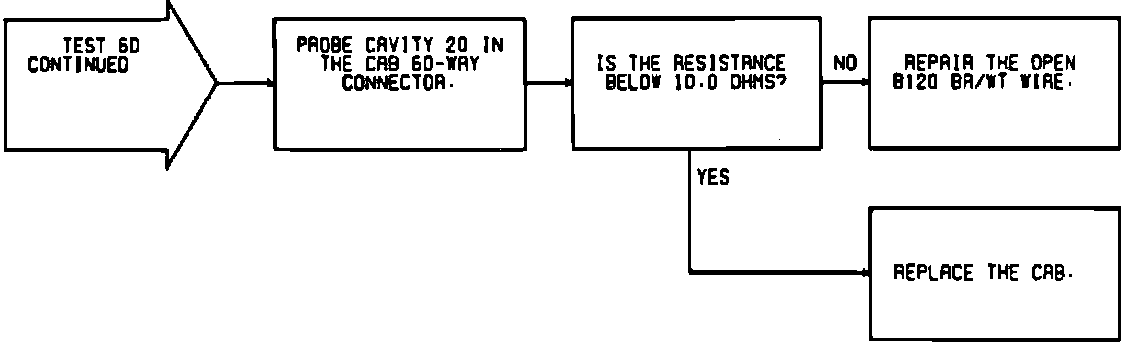

Fig. 20 Test 6D--Pump/Motor Fault (Part 2 Of 2):
