Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 5 - Antilock Lamp Relay Fault >> Test 5B

Test 5B

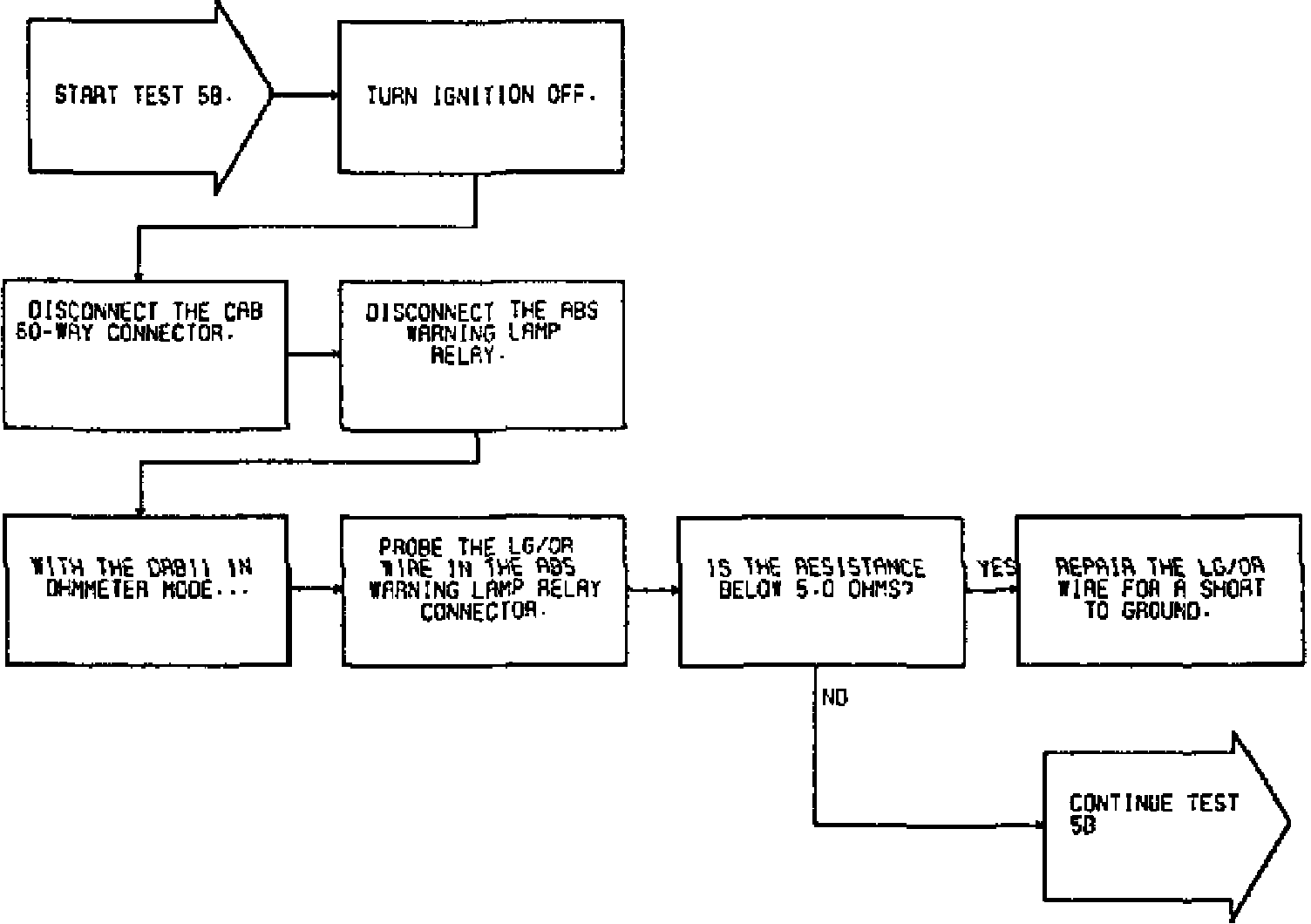

Fig. 45 Test 5B Part 1 Of 2:

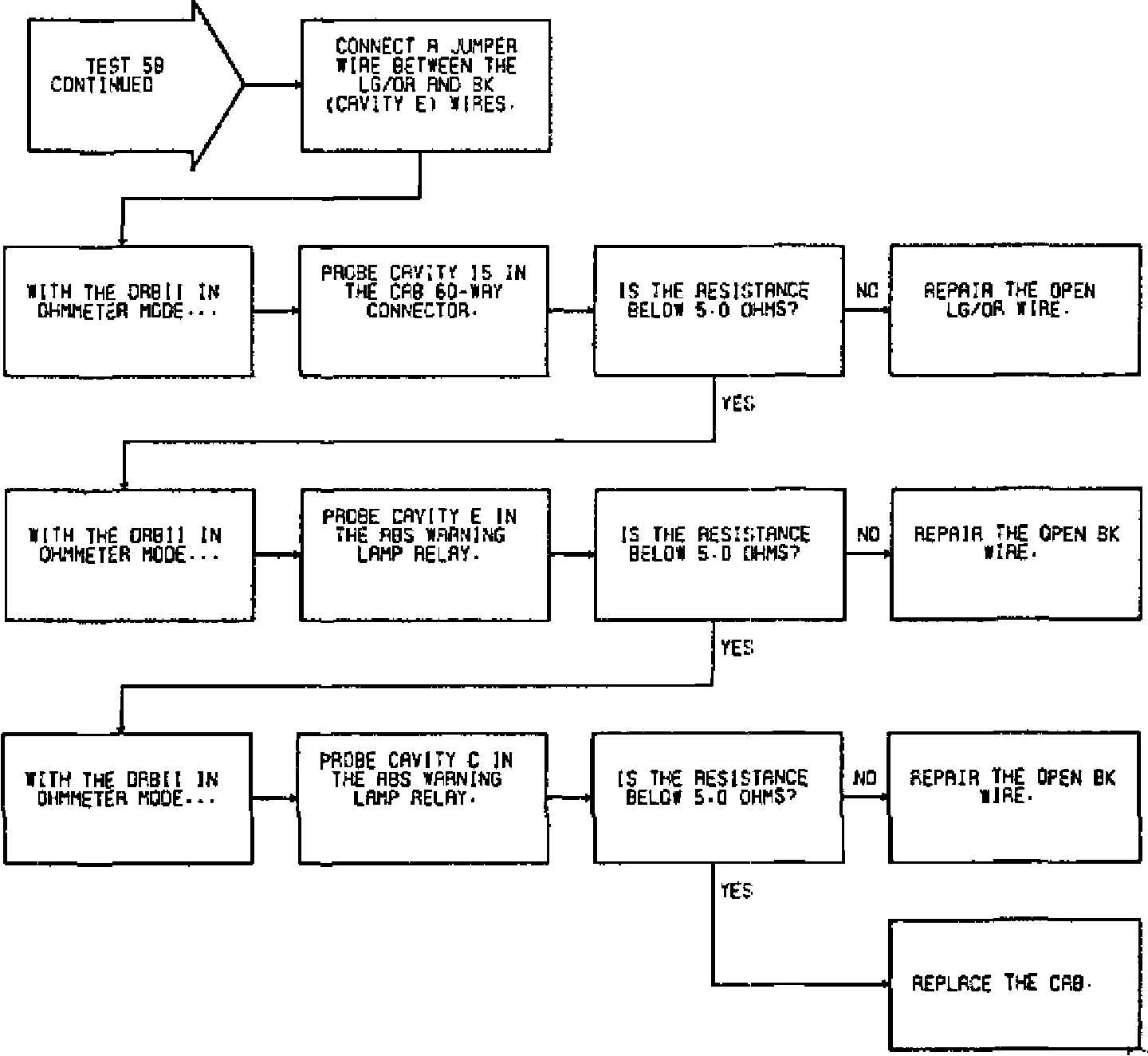

Fig. 45 Test 5B Part 2 Of 2:
