Test 3A

Fig. 6 Test 3A--Modulator Fault (Part 1 Of 3):

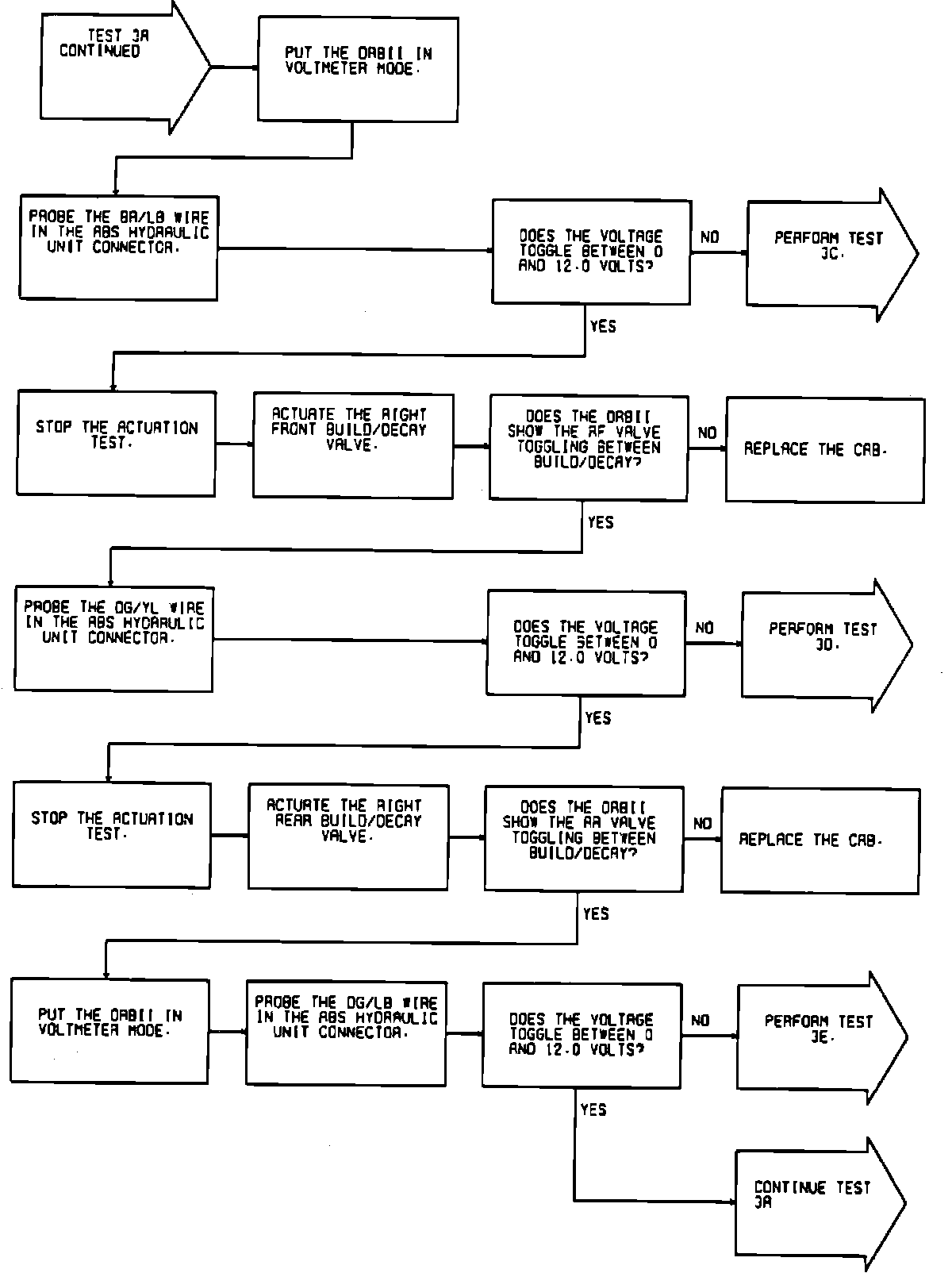

Fig. 6 Test 3A--Modulator Fault (Part 2 Of 3):

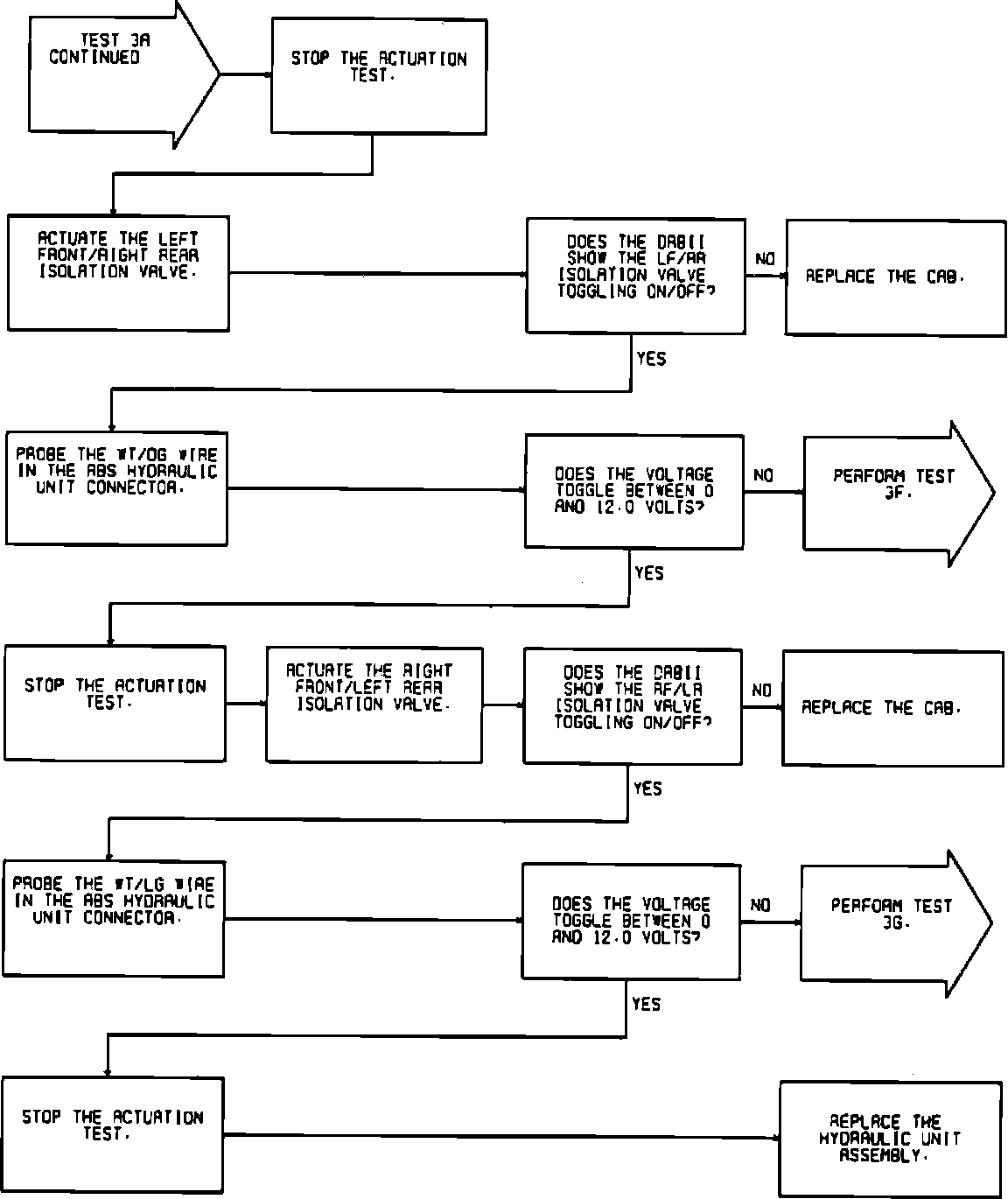

Fig. 6 Test 3A--Modulator Fault (Part 3 Of 3):
