Test 2A - Testing Blank DRB II Message Screen
Test 2A - Testing Blank DRB II Message Screen

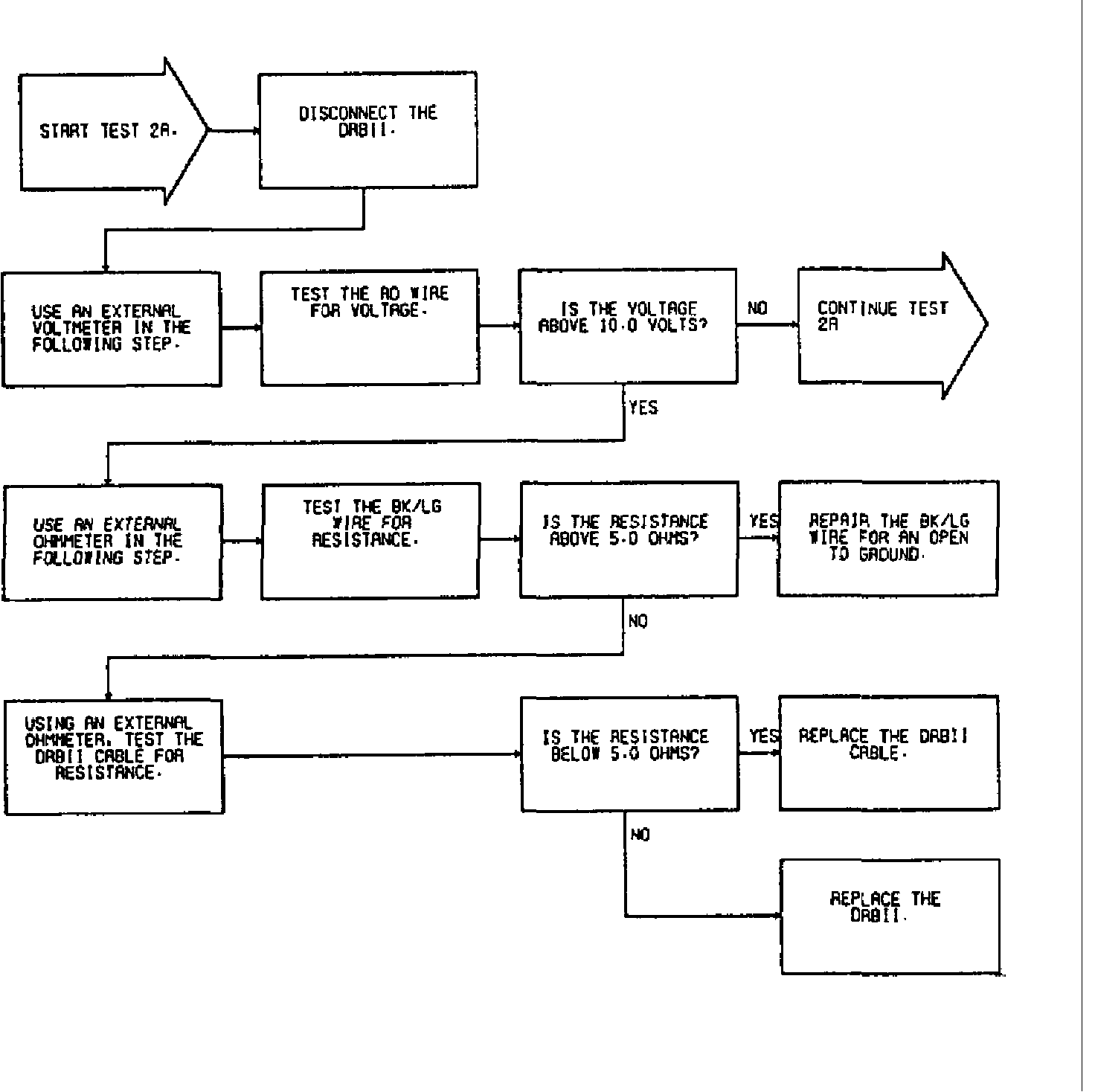

Fig. 40 Test 2A Part 1 Of 3:

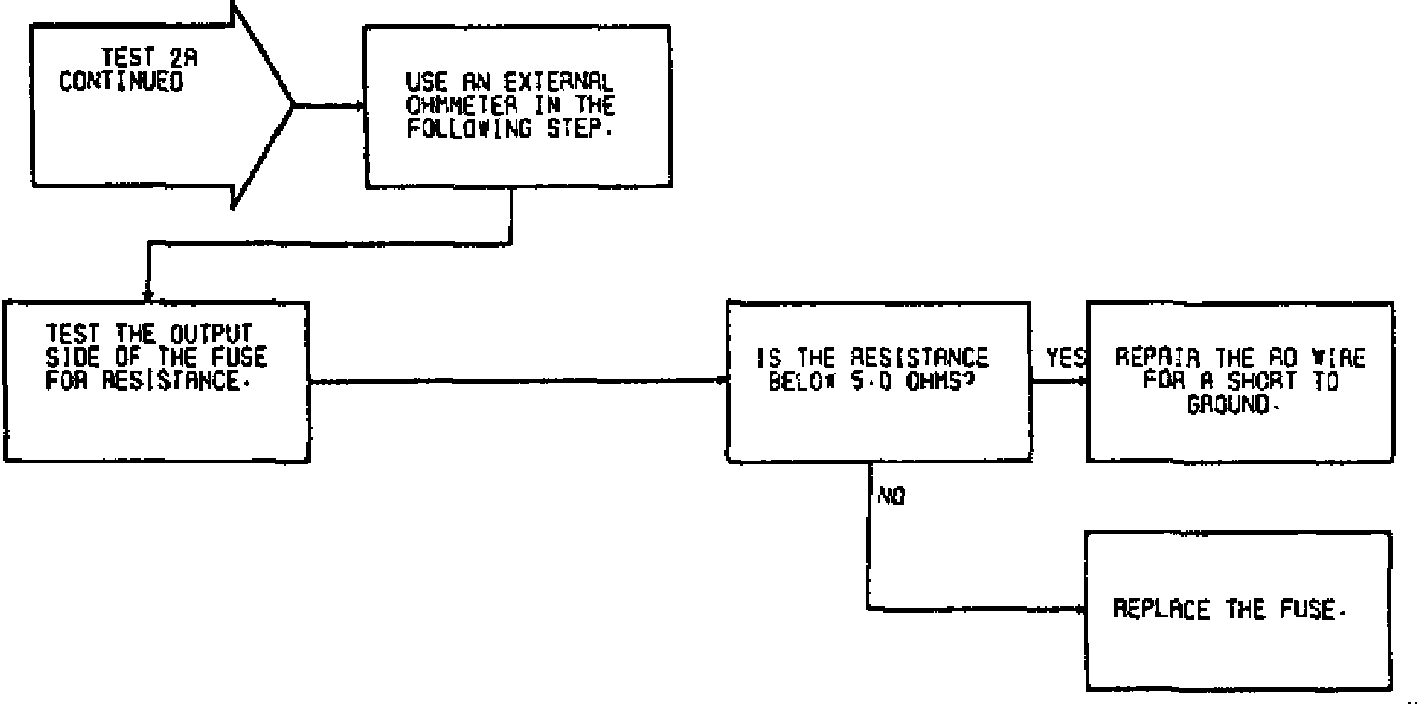

Fig. 40 Test 2A Part 2 Of 3:

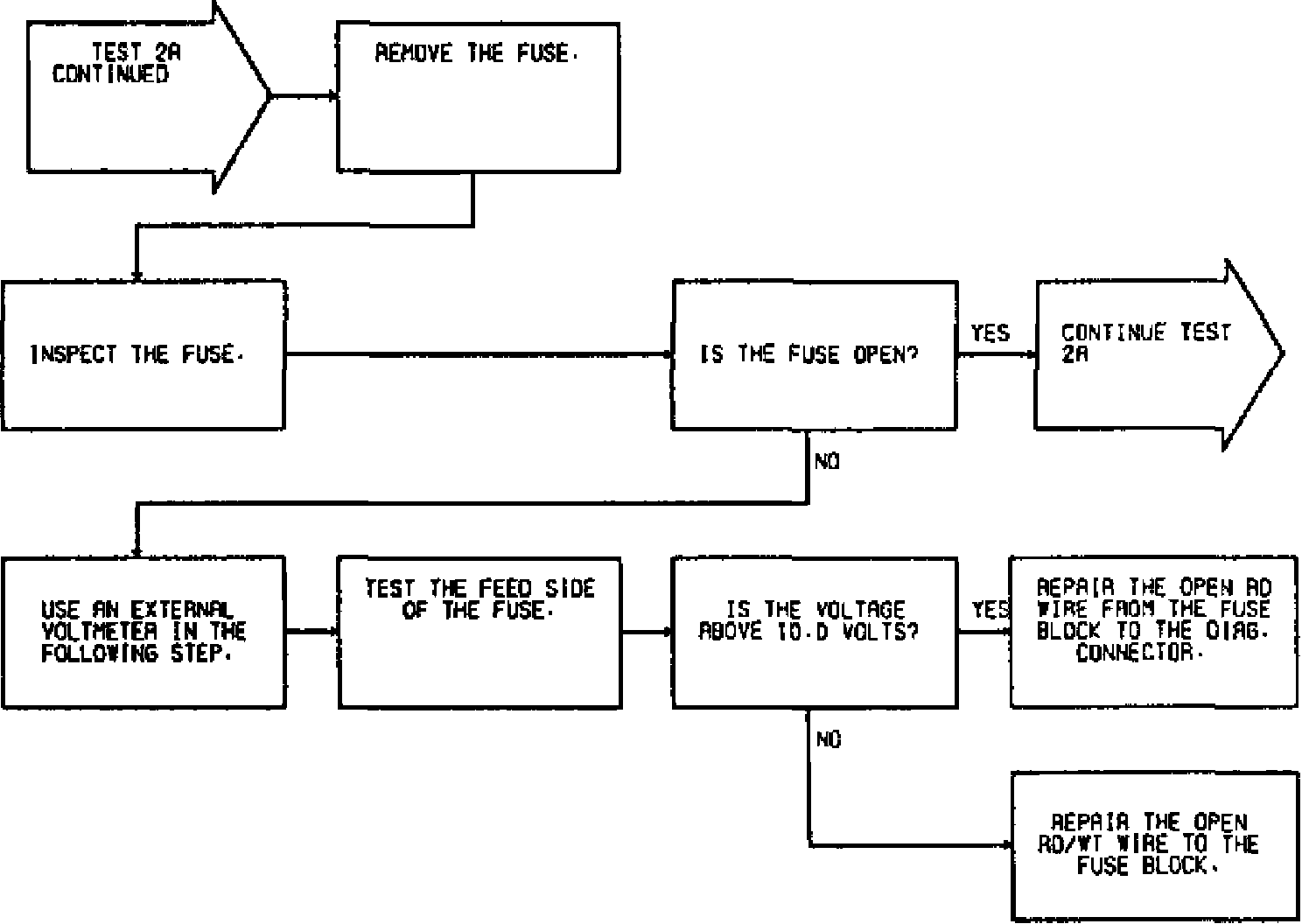

Fig. 40 Test 2A Part 3 Of 3:
