Test 18A - Right Rear Wheel Speed Sensor Continuity Fault
Test 18A - Right Rear Wheel Speed Sensor Continuity Fault

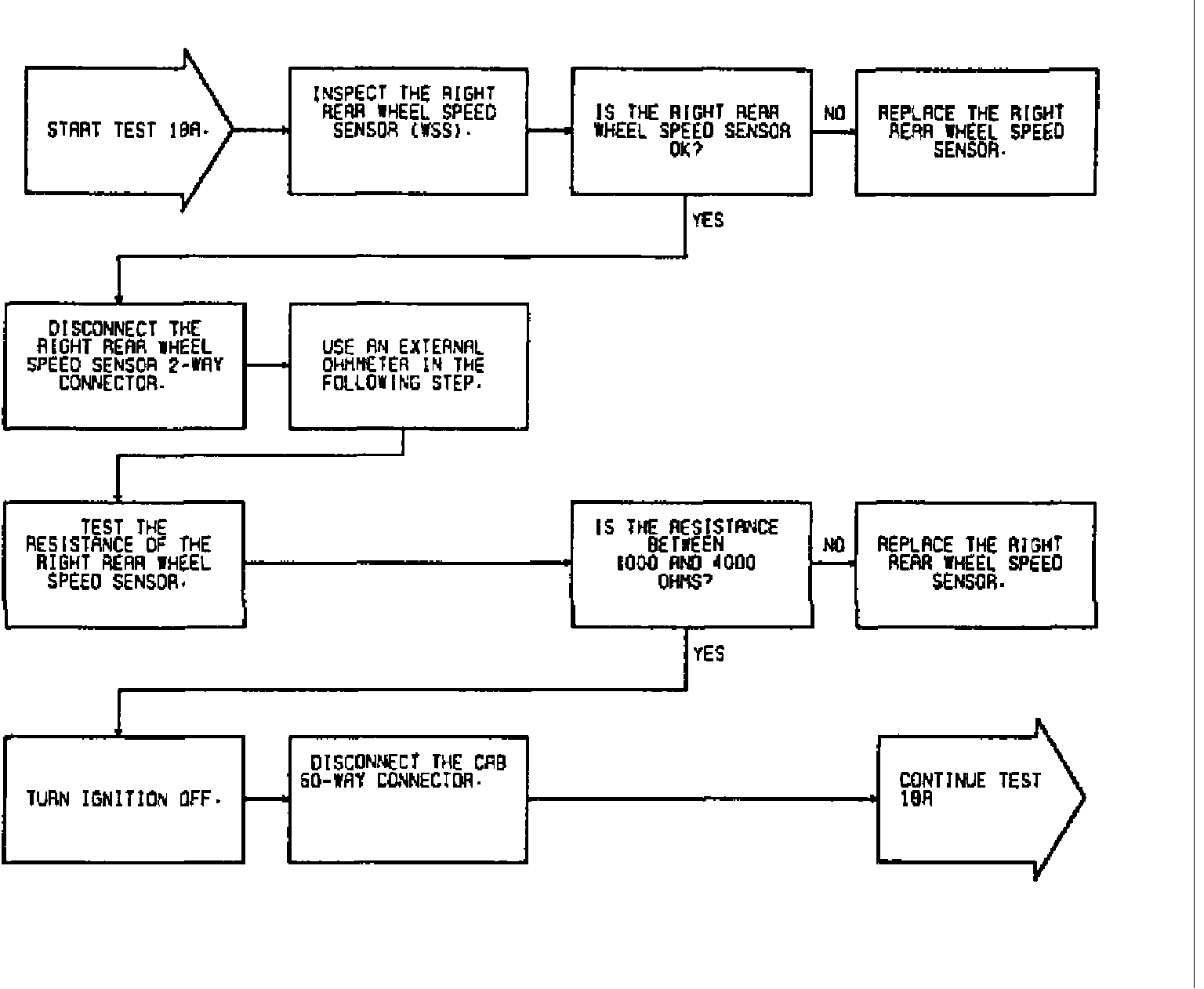

Fig. 69 Test 18A Part 1 Of 2:

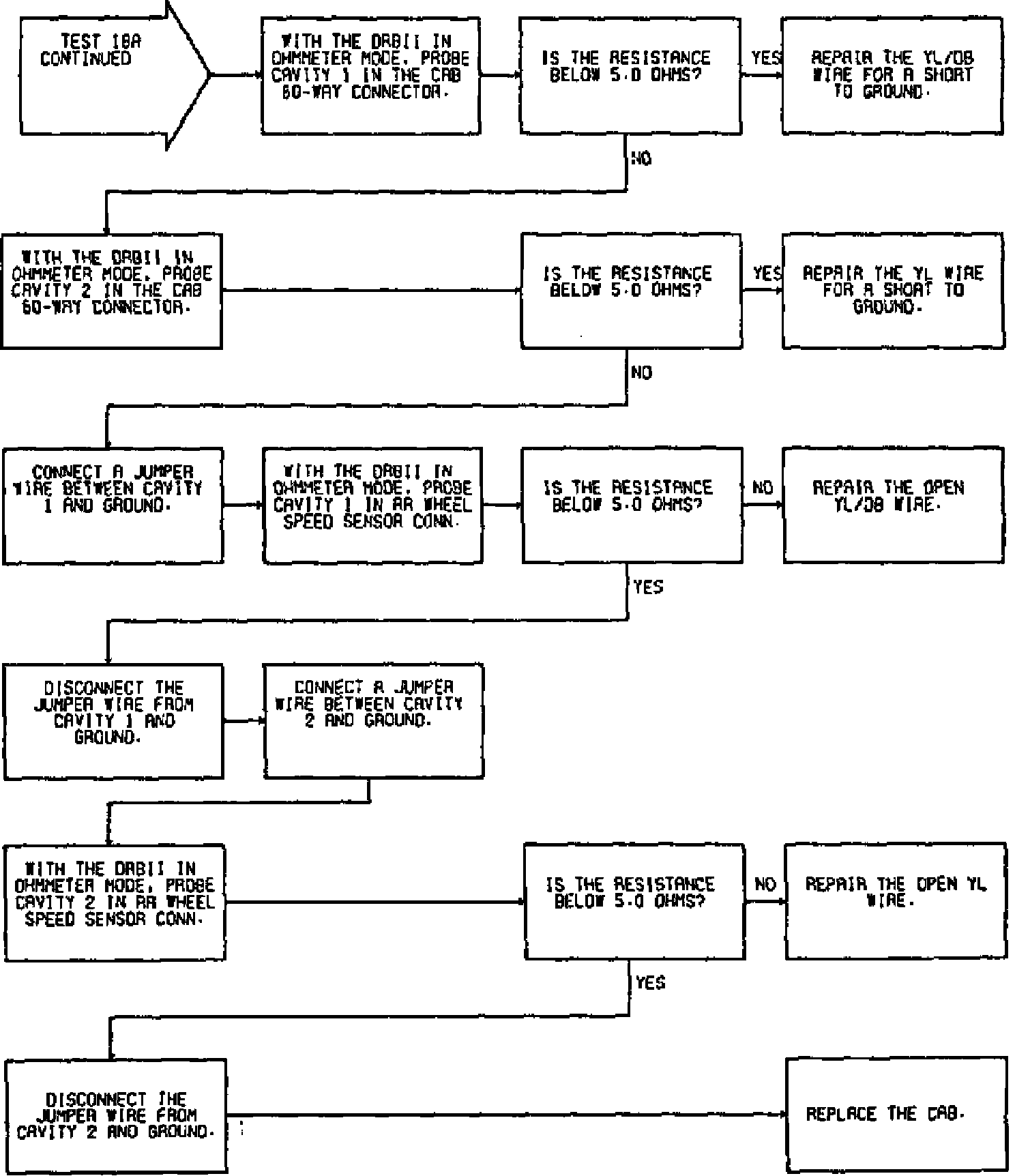

Fig. 69 Test 18A Part 2 Of 2:
