Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 18 - Red Brake Warning Lamp Input Test >> Test 18B

Test 18B

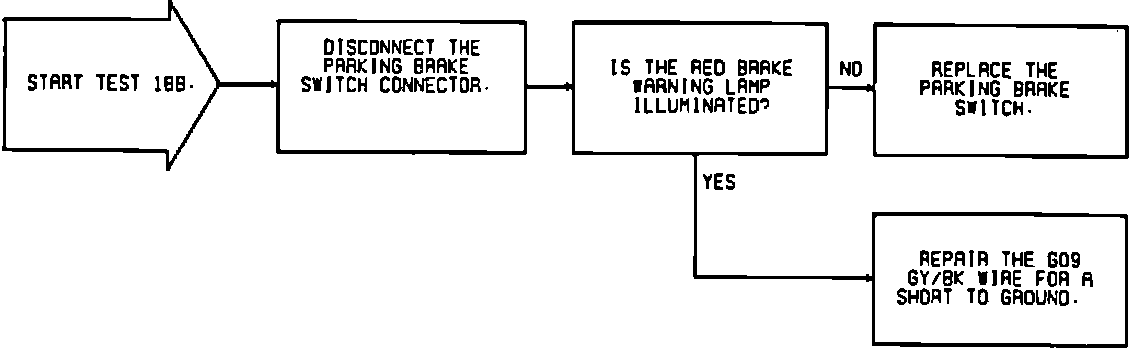

Fig. 36 Test 18B--Red Brake Warning Lamp Input Test:
