Test 16A - Right Front Wheel Speed Sensor Continuity Fault
Test 16A - Right Front Wheel Speed Sensor Continuity Fault

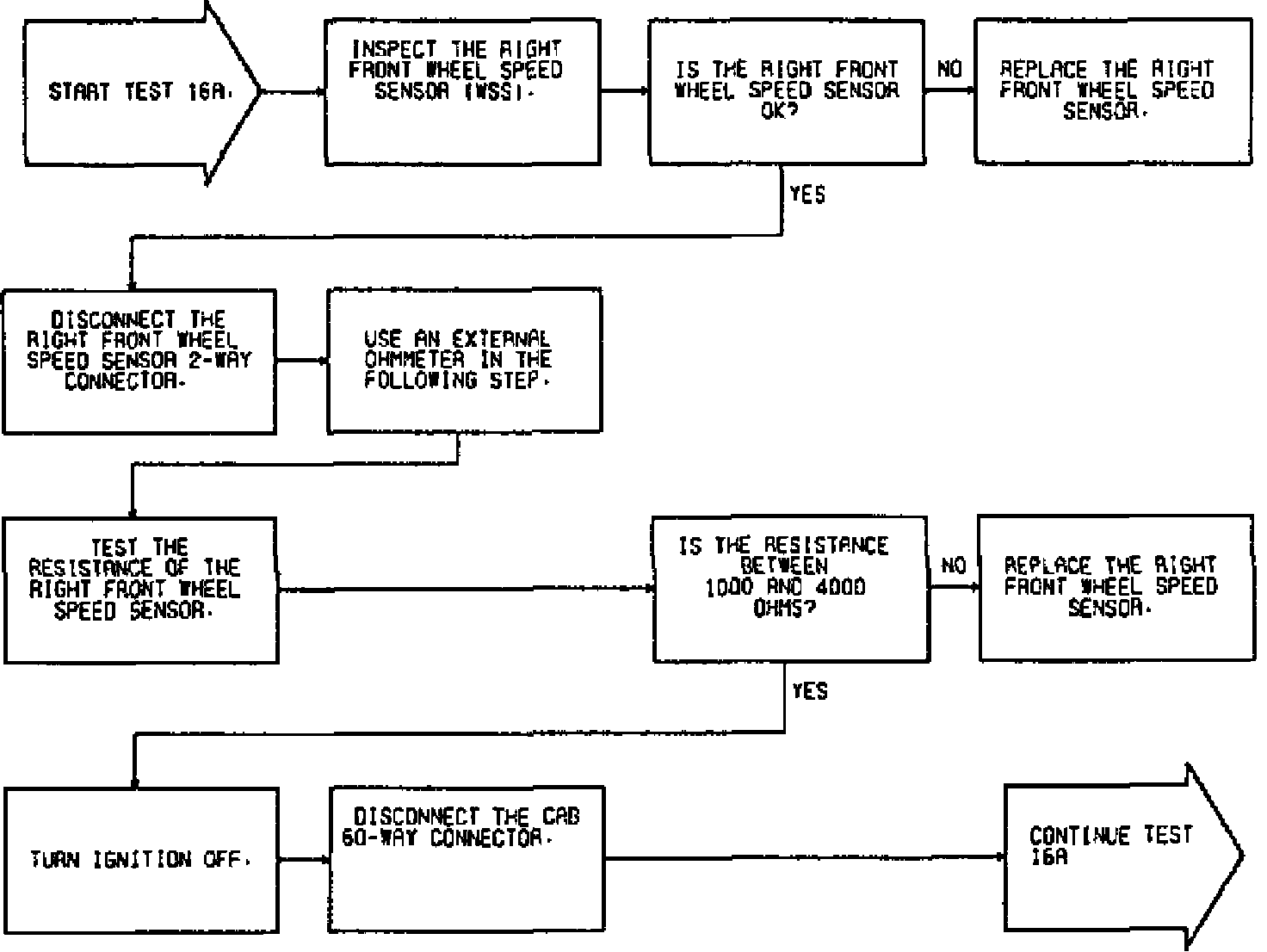

Fig. 67 Test 16A Part 1 Of 2:

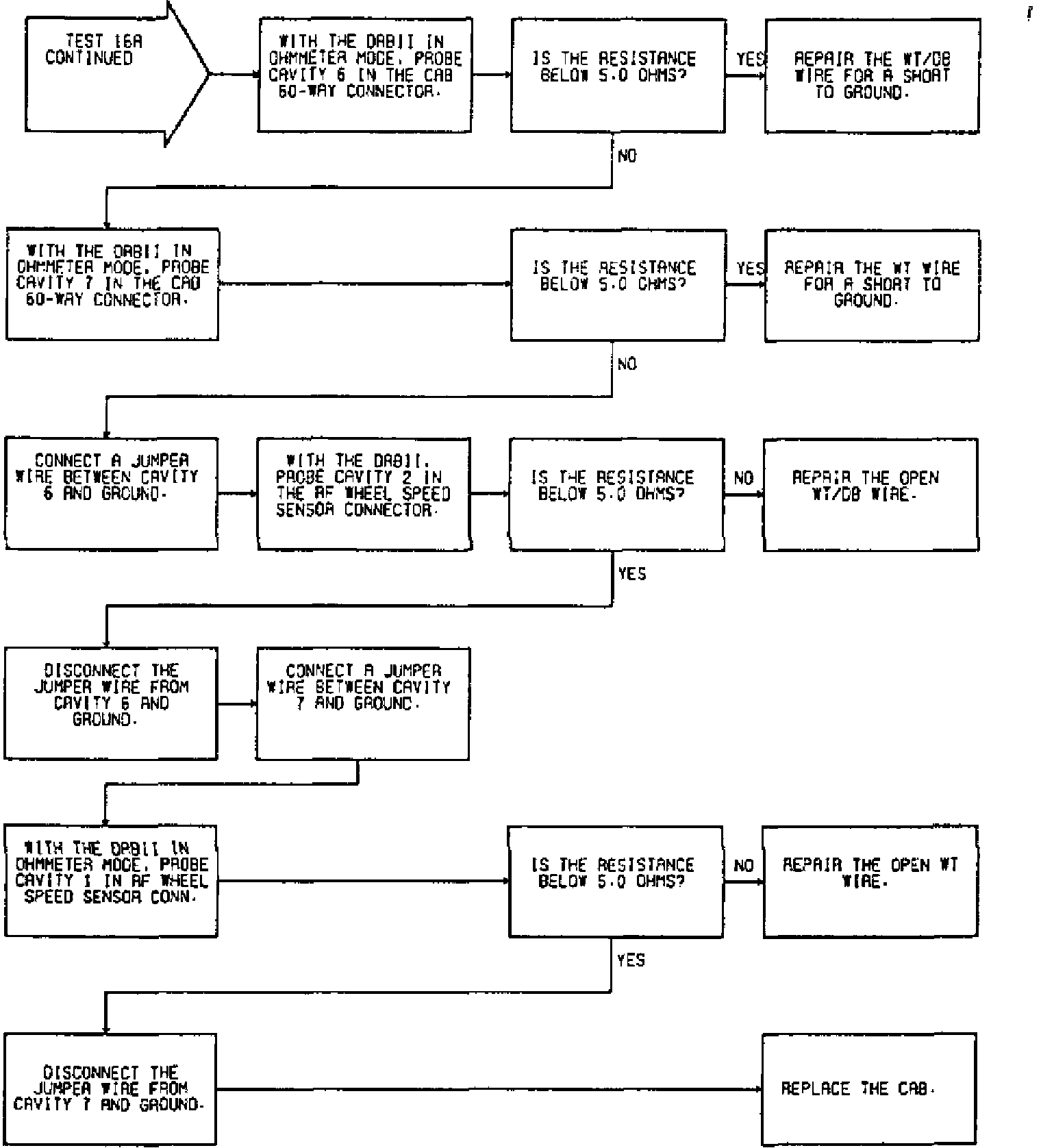

Fig. 67 Test 16A Part 2 Of 2:
