Test 16A - Left Front Wheel Speed Sensor Fault

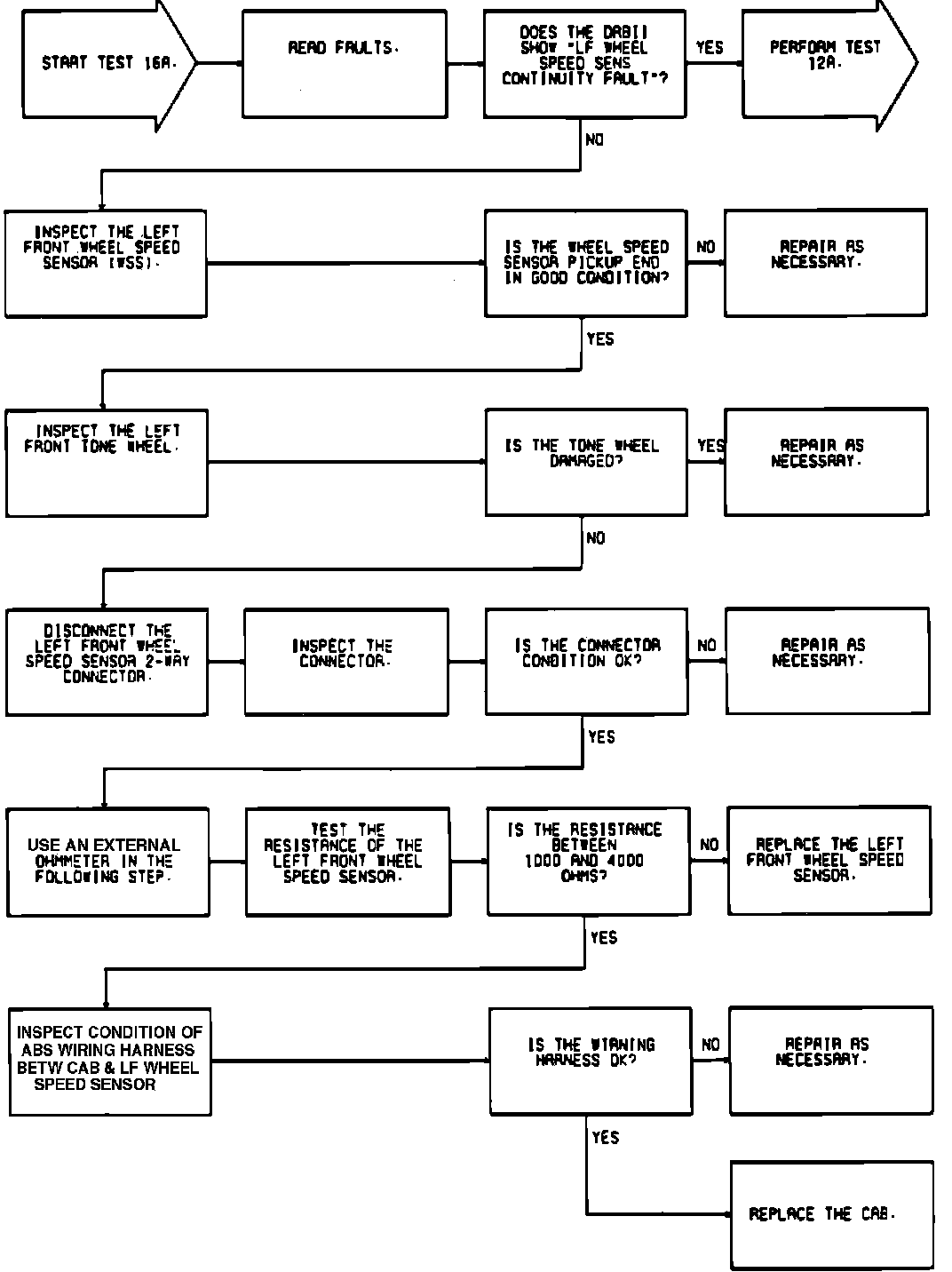

Fig. 33 Test 16A--Left Front Wheel Speed Sensor Fault:
