Test 12A - Left Front Wheel Speed Sensor
Test 12A - Left Front Wheel Speed Sensor

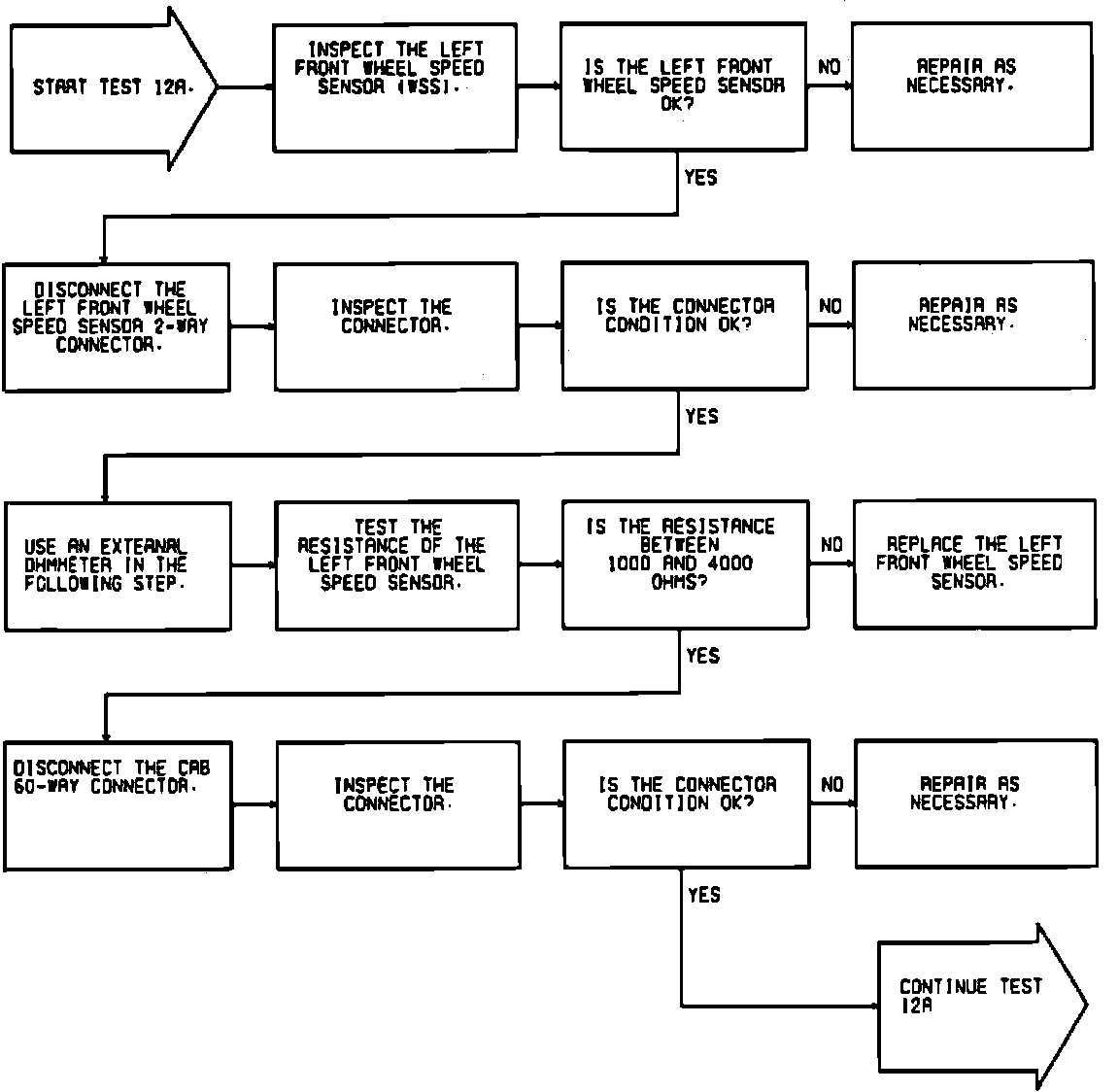

Fig. 29 Test 12A--Left Front Wheel Speed Sensor Continuity Fault (Part 1 Of 2):

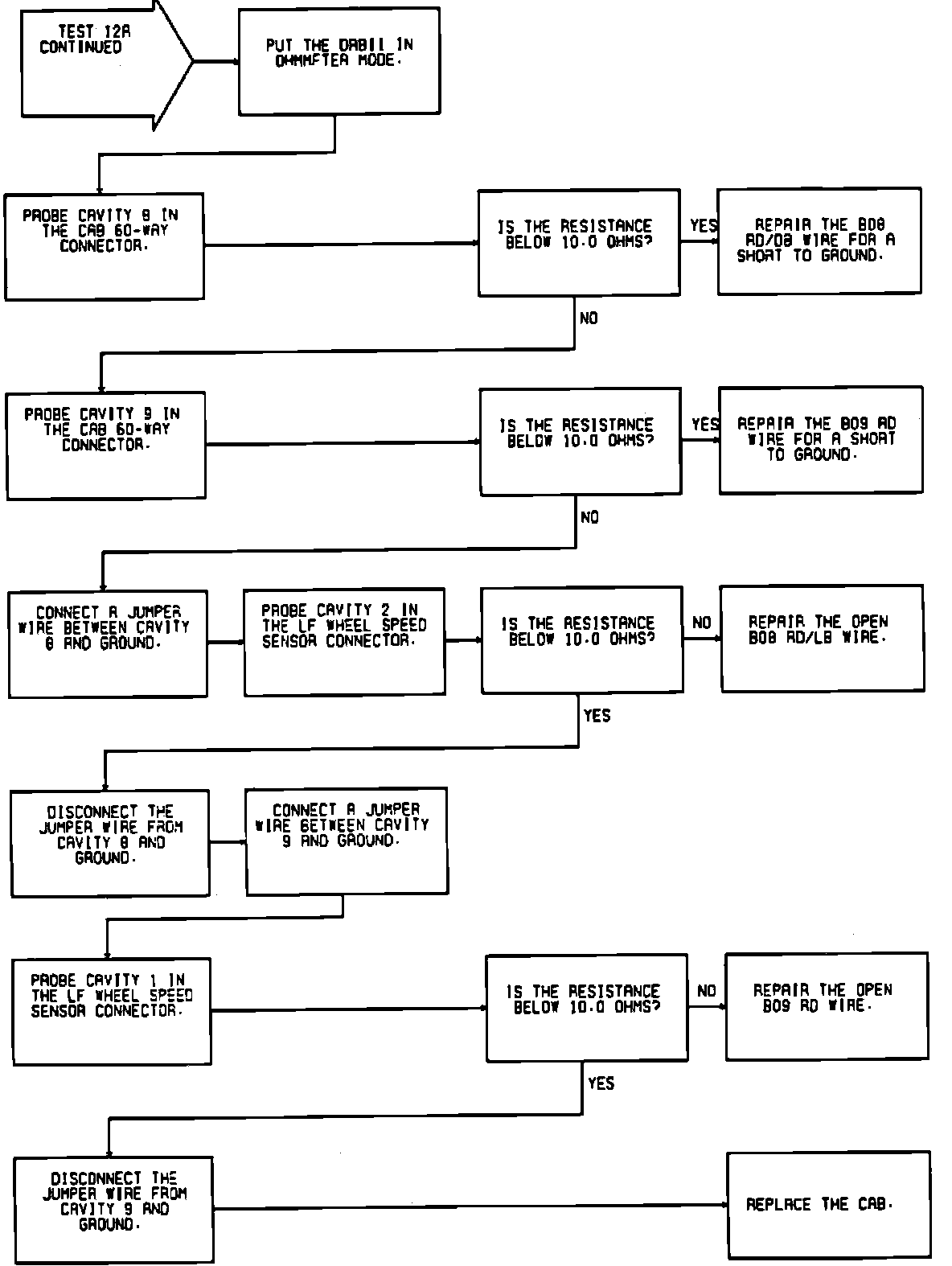

Fig. 29 Test 12A--Left Front Wheel Speed Sensor Continuity Fault (Part 2 Of 2):
