Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 12 - Modulator Fault >> Test 12D

Test 12D

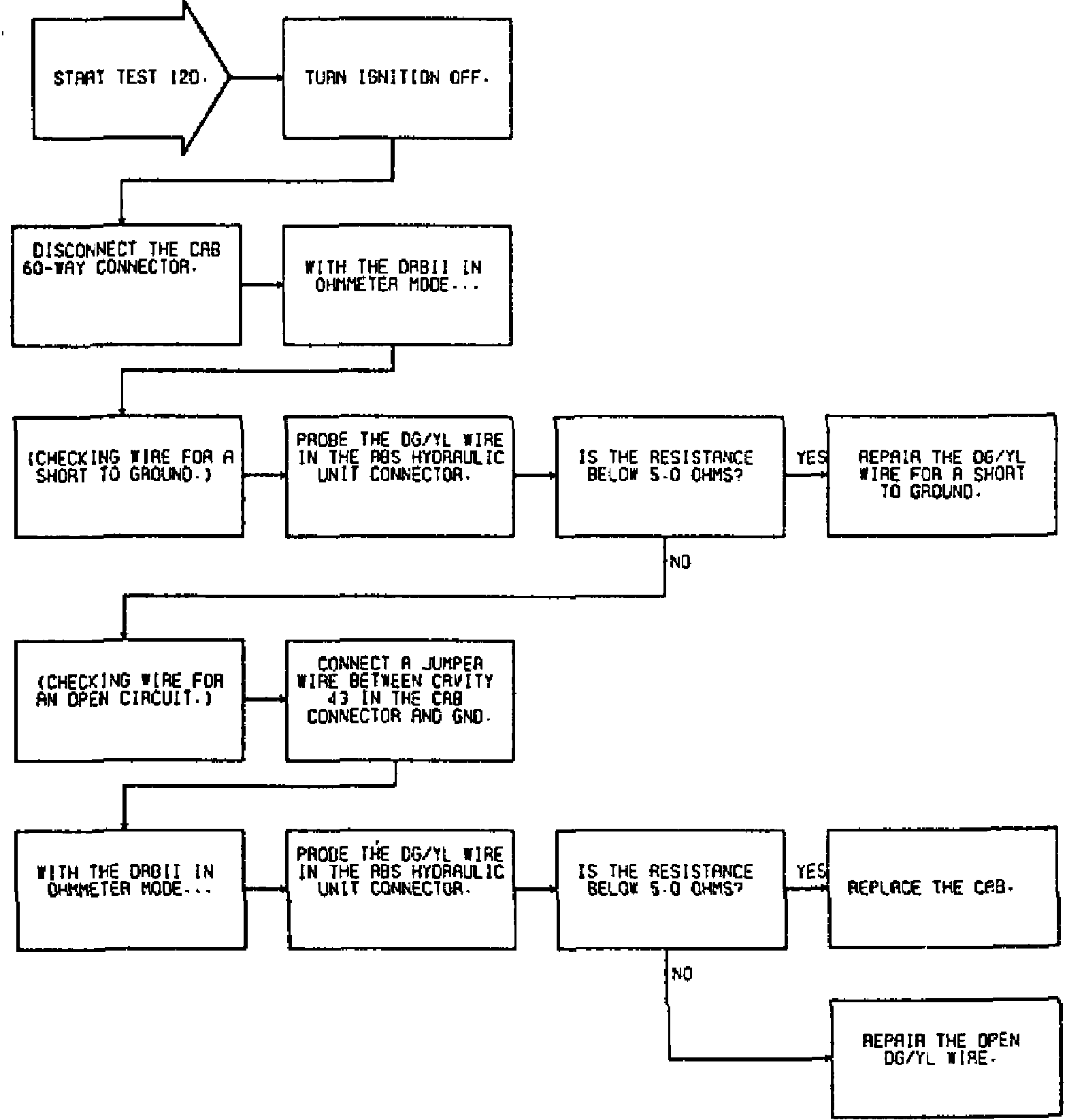

Fig. 55 Test 12D:
