Test 12A

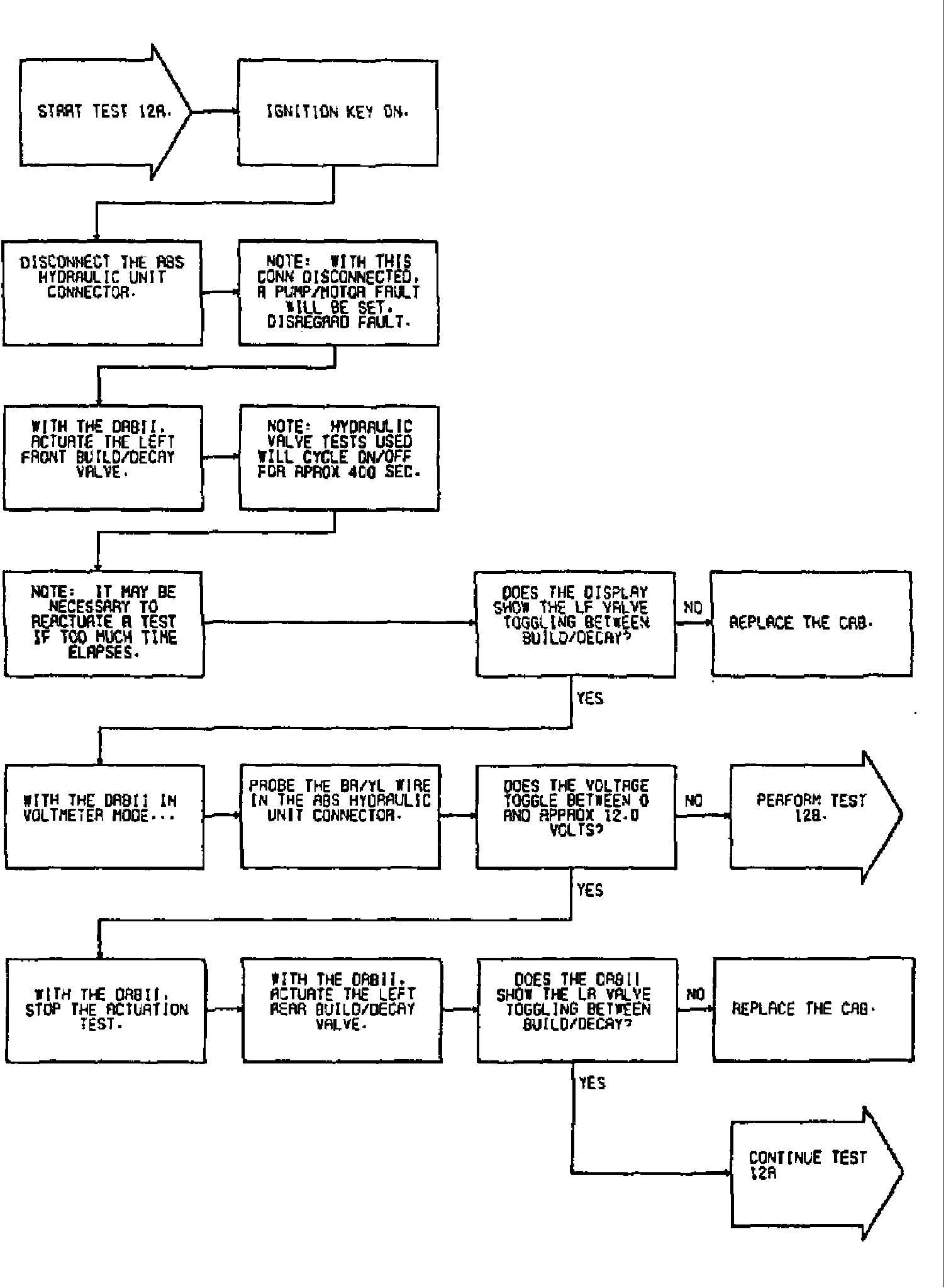

Fig. 52 Test 12A Part 1 Of 4:



Fig. 52 Test 12A Part 2 Of 4:

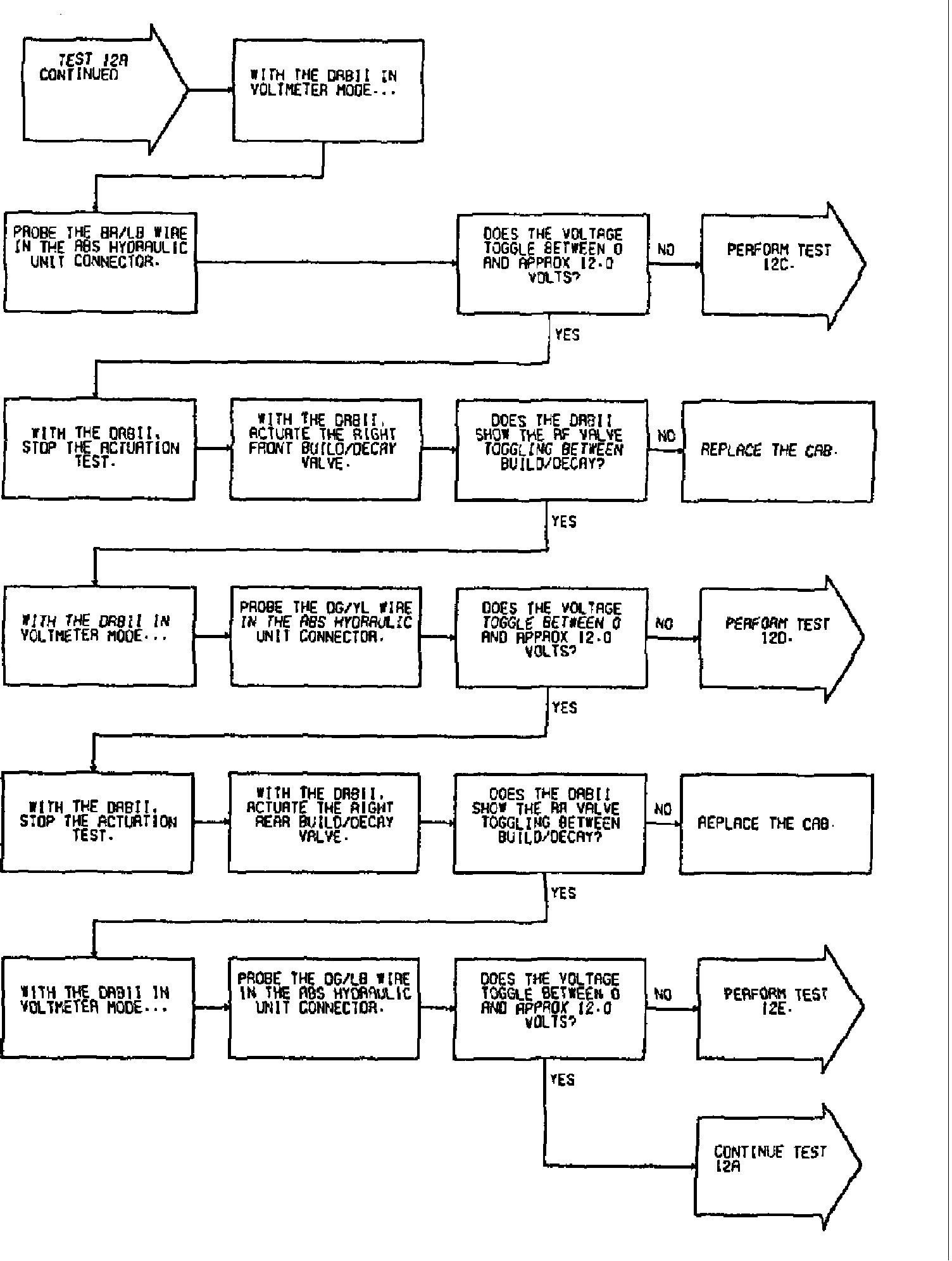

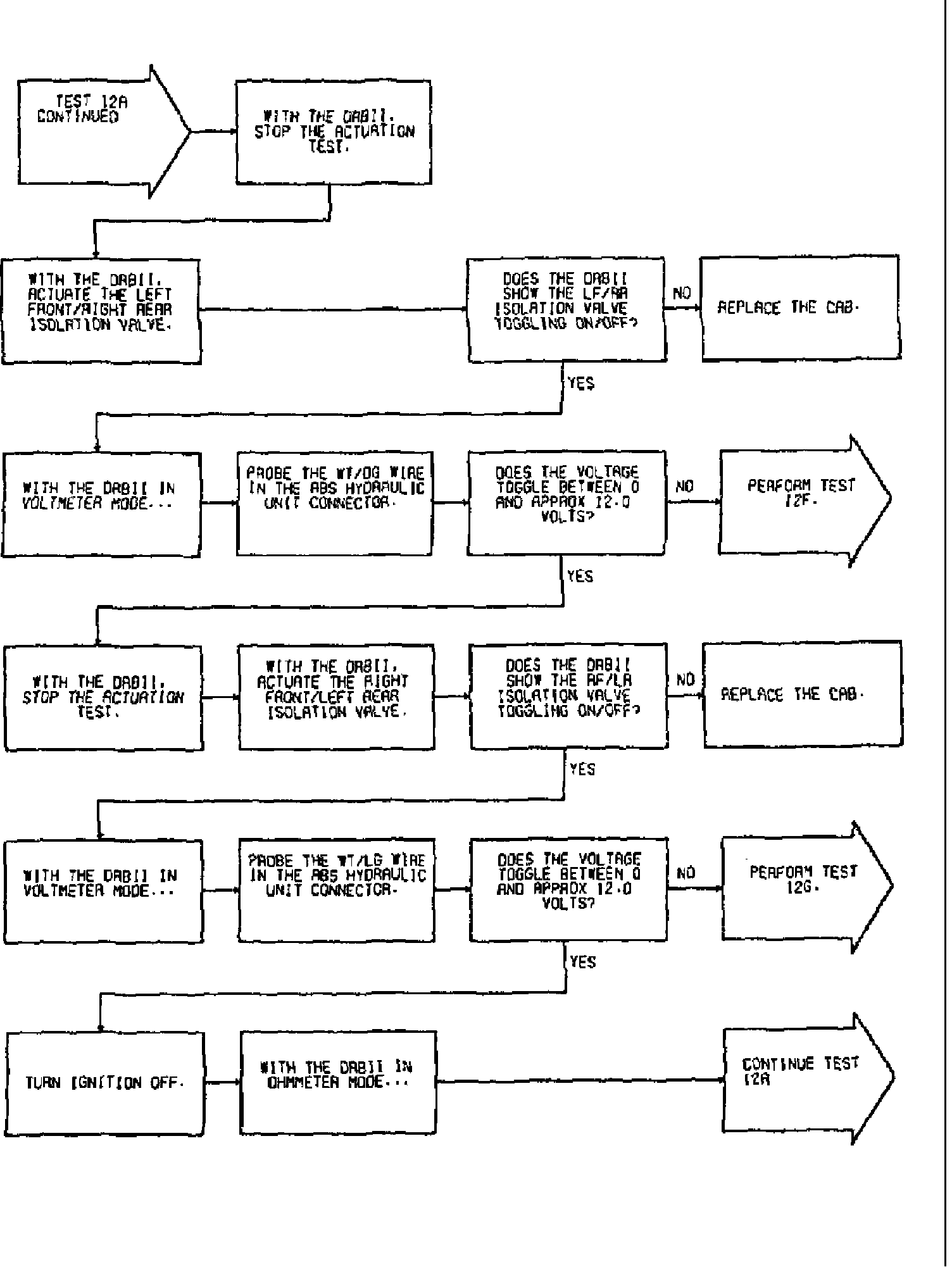

Fig. 52 Test 12A Part 3 Of 4:

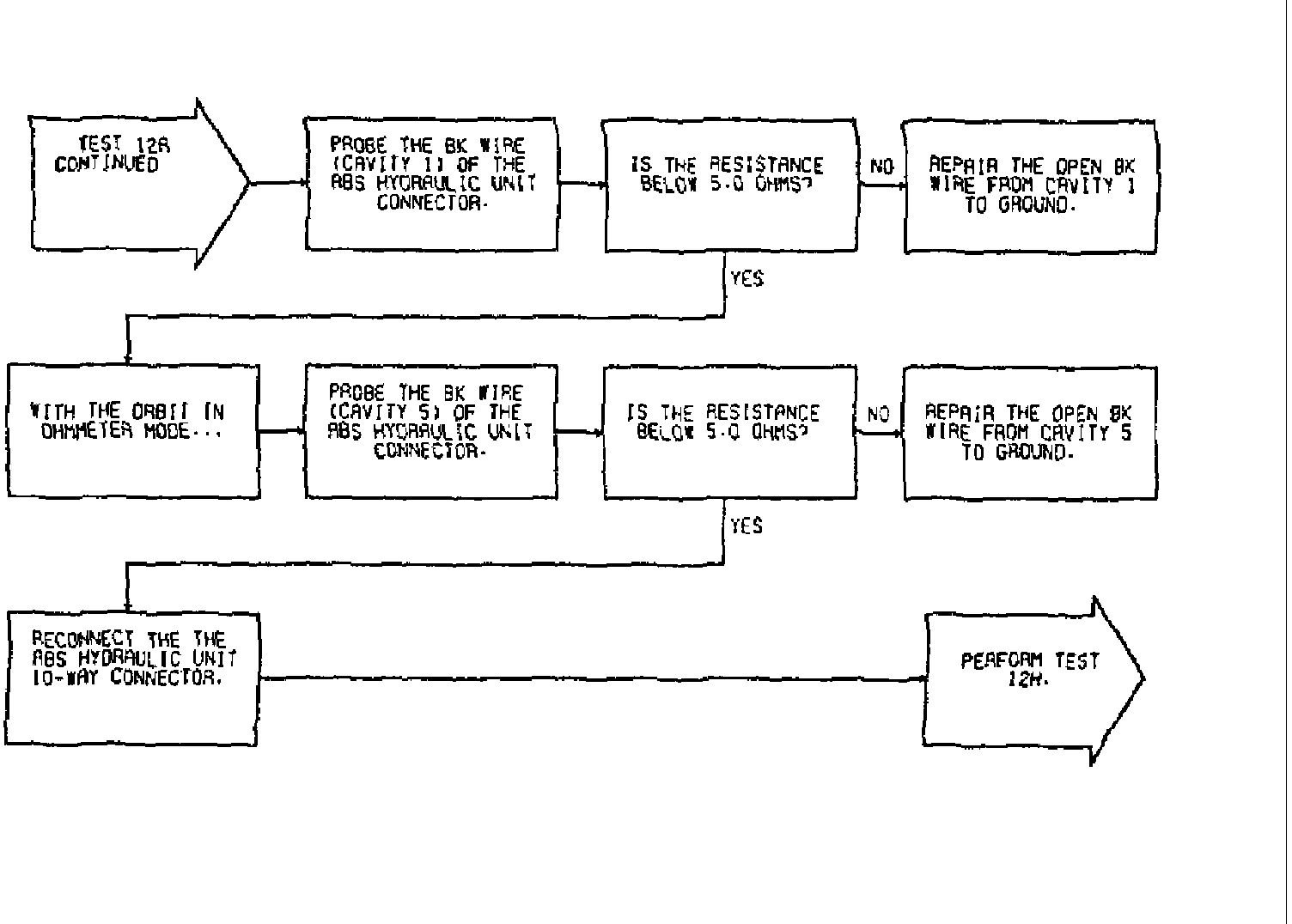

Fig. 52 Test 12A Part 4 Of 4:
