Test 11 - Right Front Wheel Speed Sensor Continuity Fault

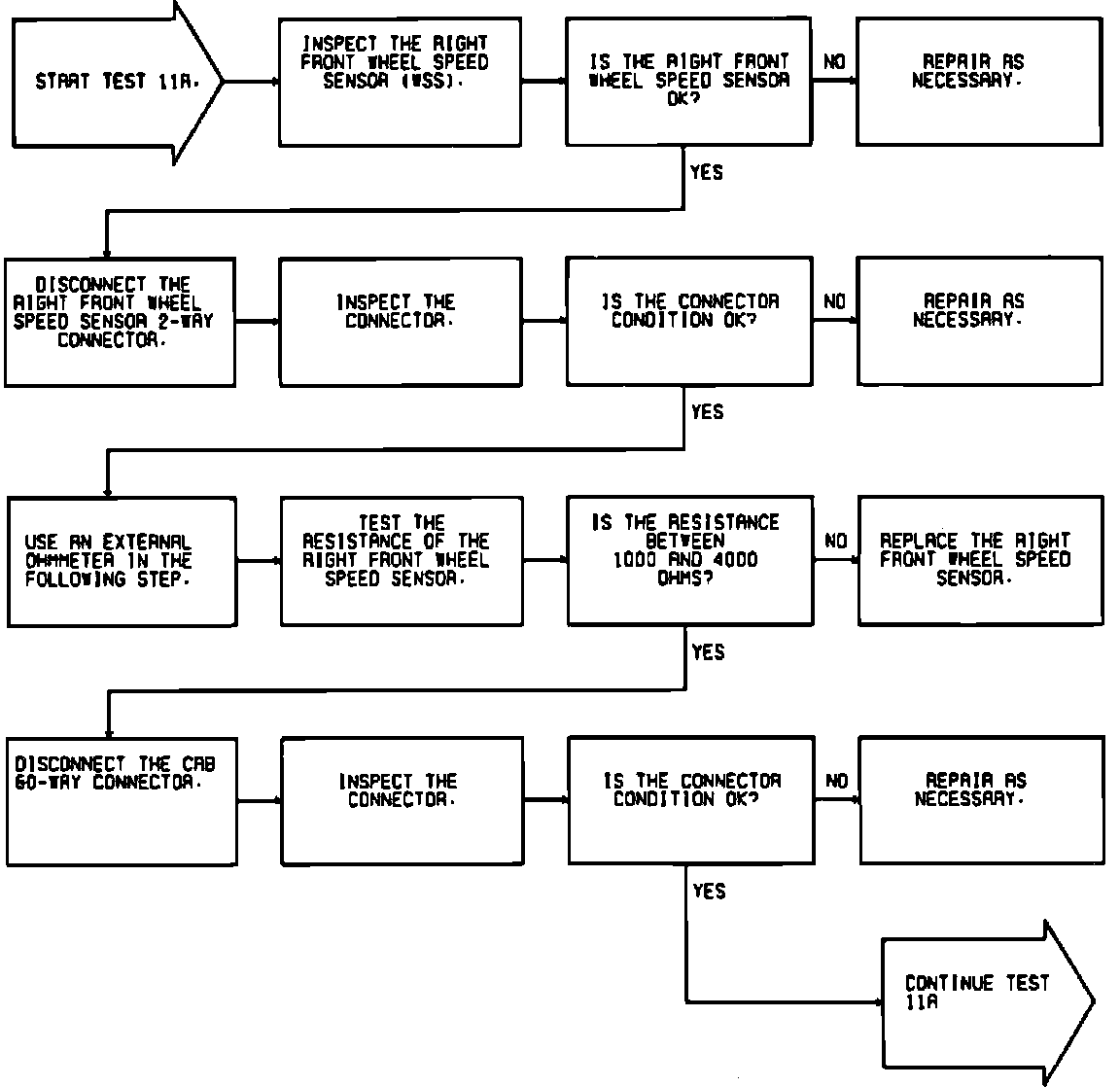

Fig. 28 Test 11A--Right Front Wheel Speed Sensor Continuity Fault (Part 1 Of 2):

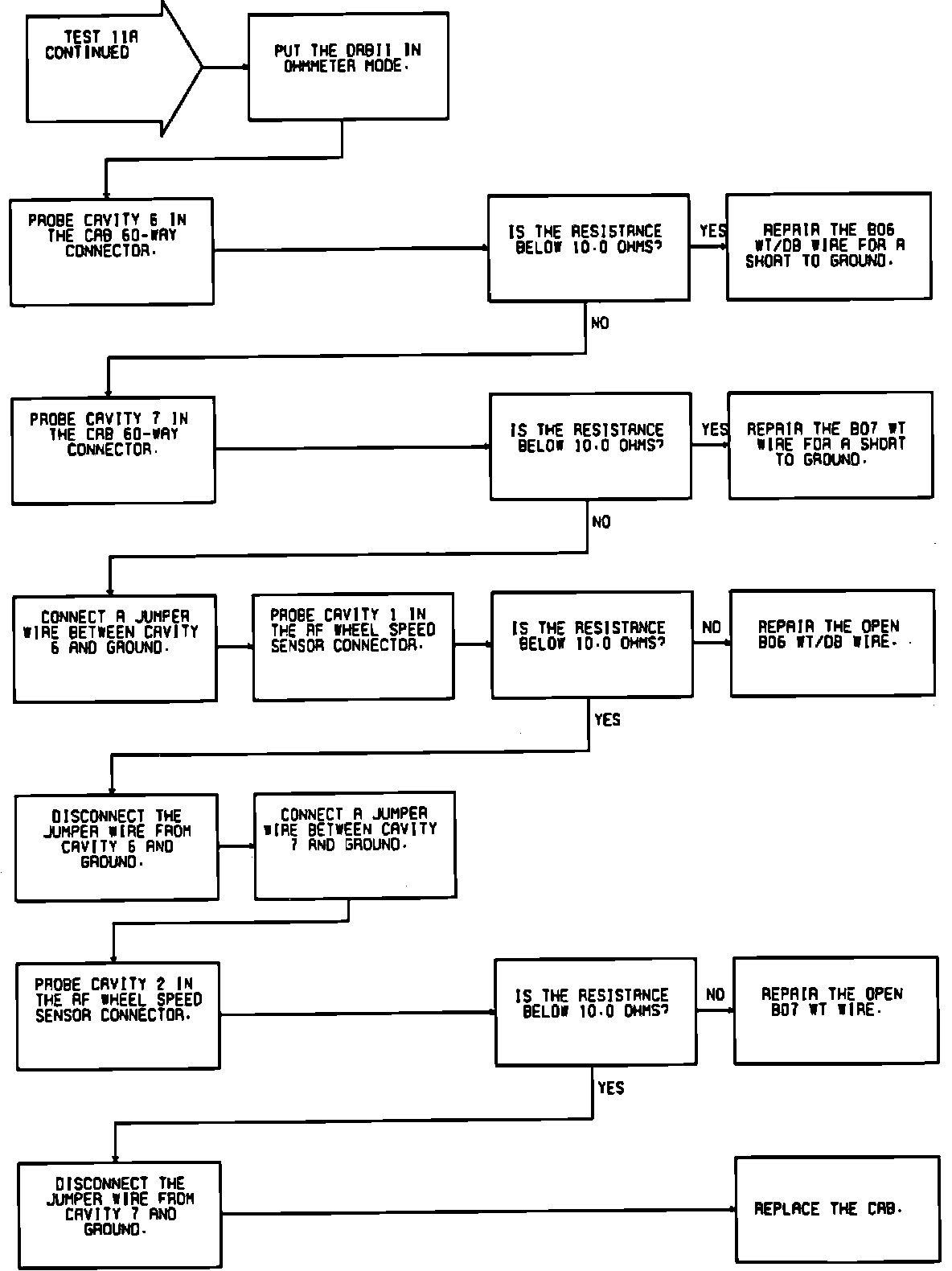

Fig. 28 Test 11A--Right Front Wheel Speed Sensor Continuity Fault (Part 2 Of 2):
