Test 10 - Left Rear Wheel Speed Sensor Continuity Fault

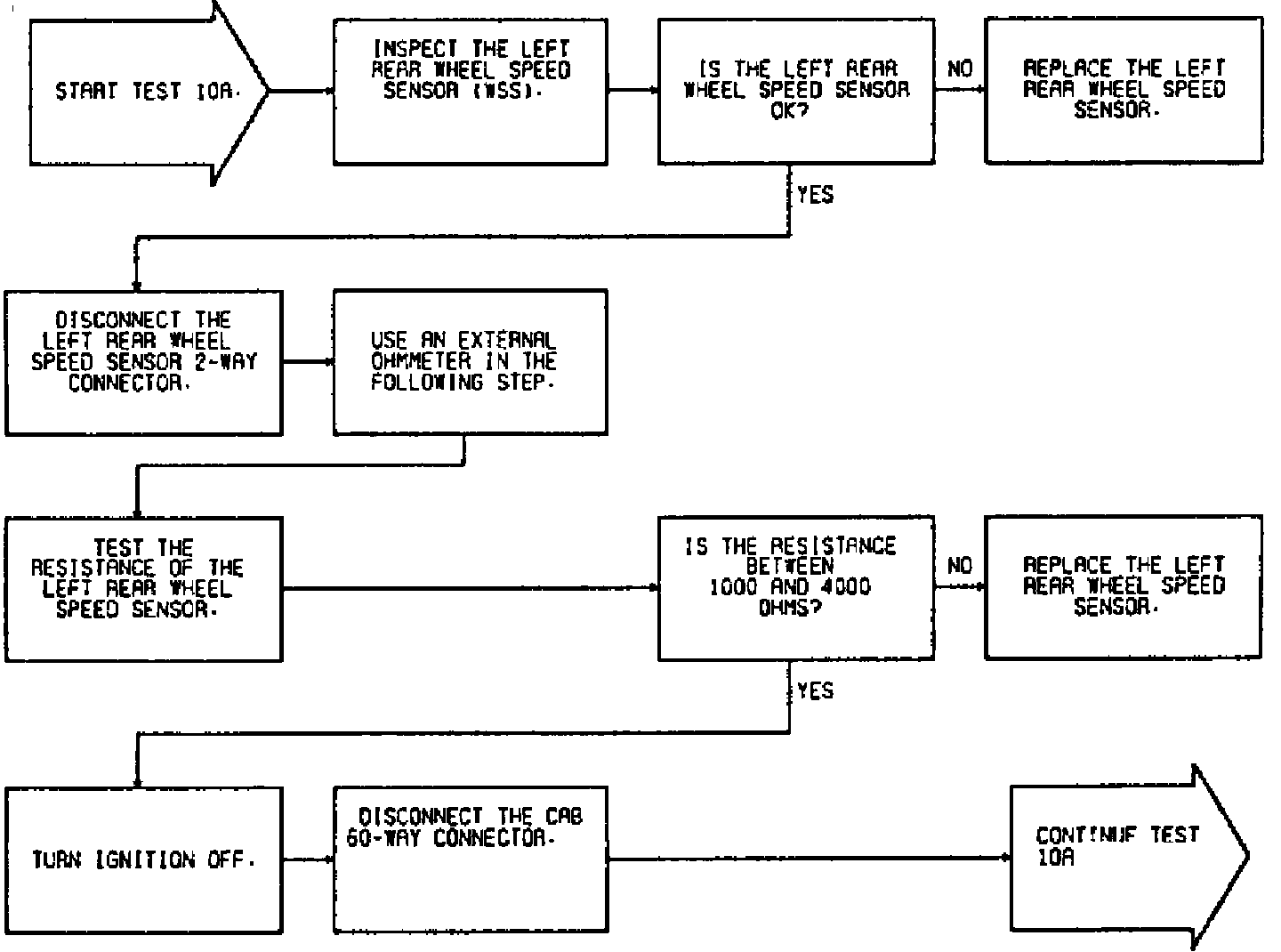

Fig. 27 Test 10A--Left Rear Wheel Speed Sensor Continuity Fault (Part 1 Of 2):

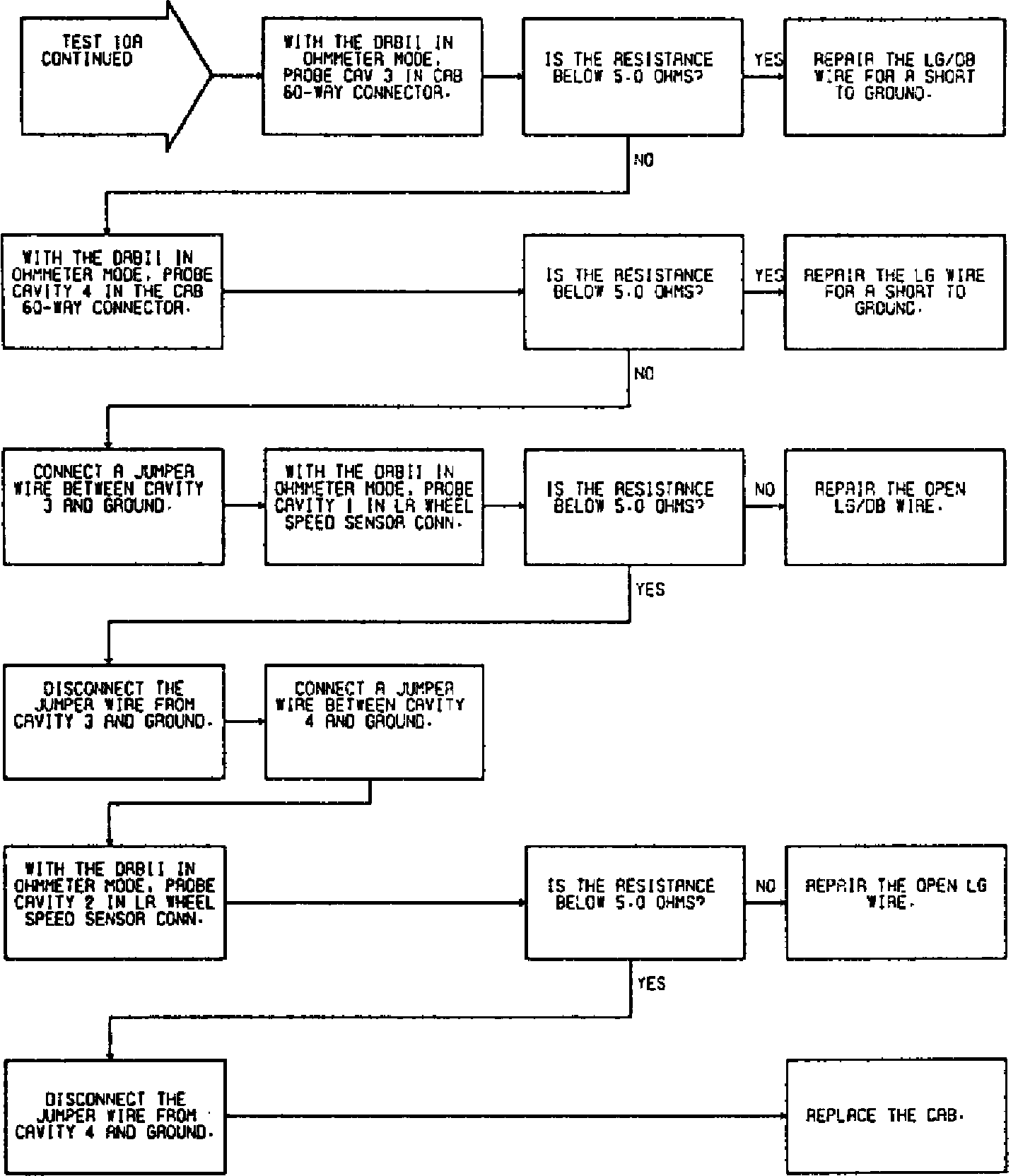

Fig. 27 Test 10A--Left Rear Wheel Speed Sensor Continuity Fault (Part 2 Of 2):

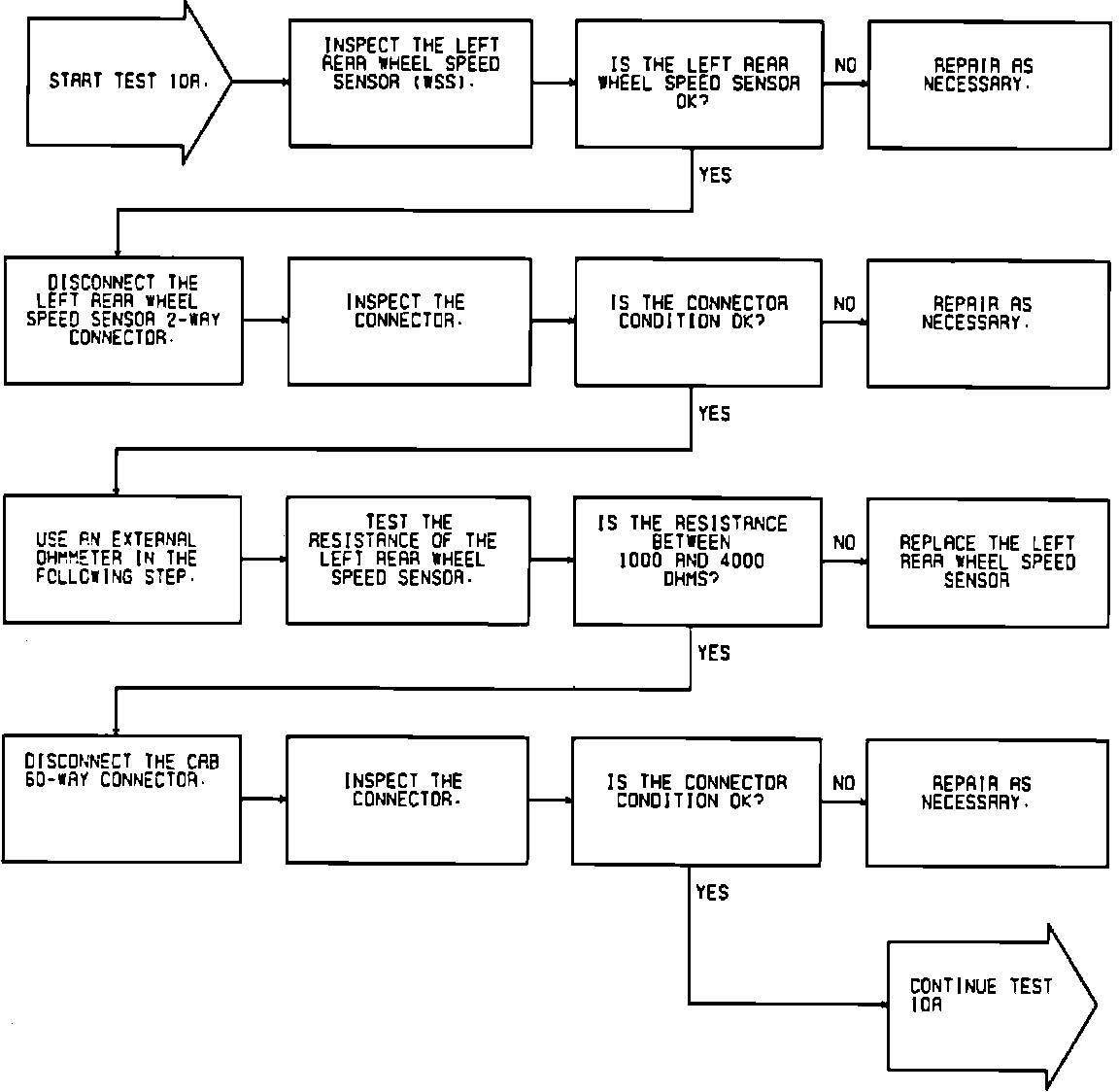

Fig. 50 Test 10A Part 1 Of 2:

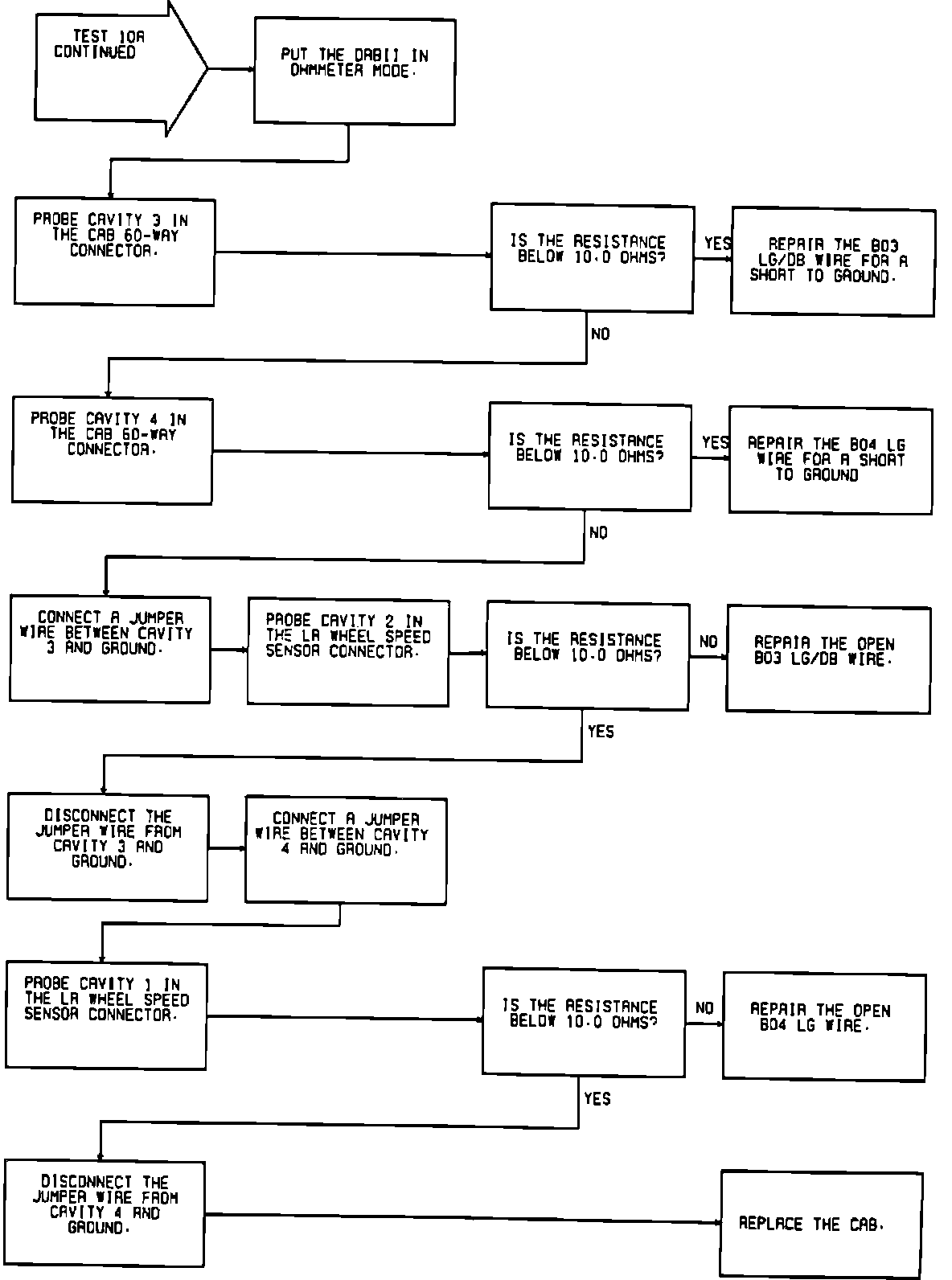

Fig. 50 Test 10A Part 2 Of 2:
